XV-N50BK,XV-N55SL
3-4(No.A0041)

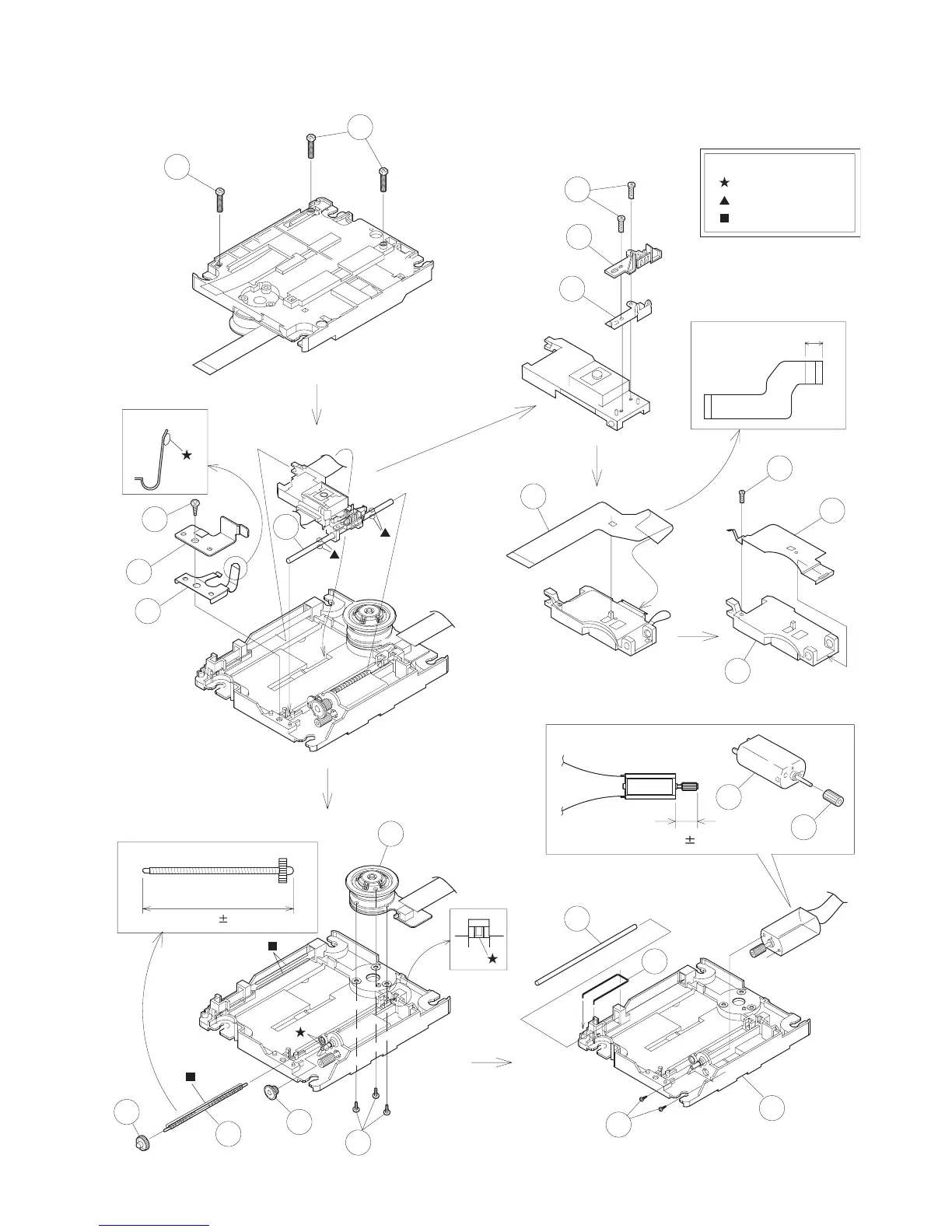

DVD TRAVERSE MECHANISM ASSEMBLY AND PARTS LIST
23
23
8
9
7
4
5
19
18
17
16
21
22
1
6
3
15
14
10
20
12
11
13
2
SIDE
9.5mm
BACK SIDE
BACK SIDE
Block No.M2MM
Grease
12.0mm 0.2mm
65.3mm 0.2mm
EXL-V76-1C
PG-641
JVG-31N
CFD-4007ZY2
