3-7

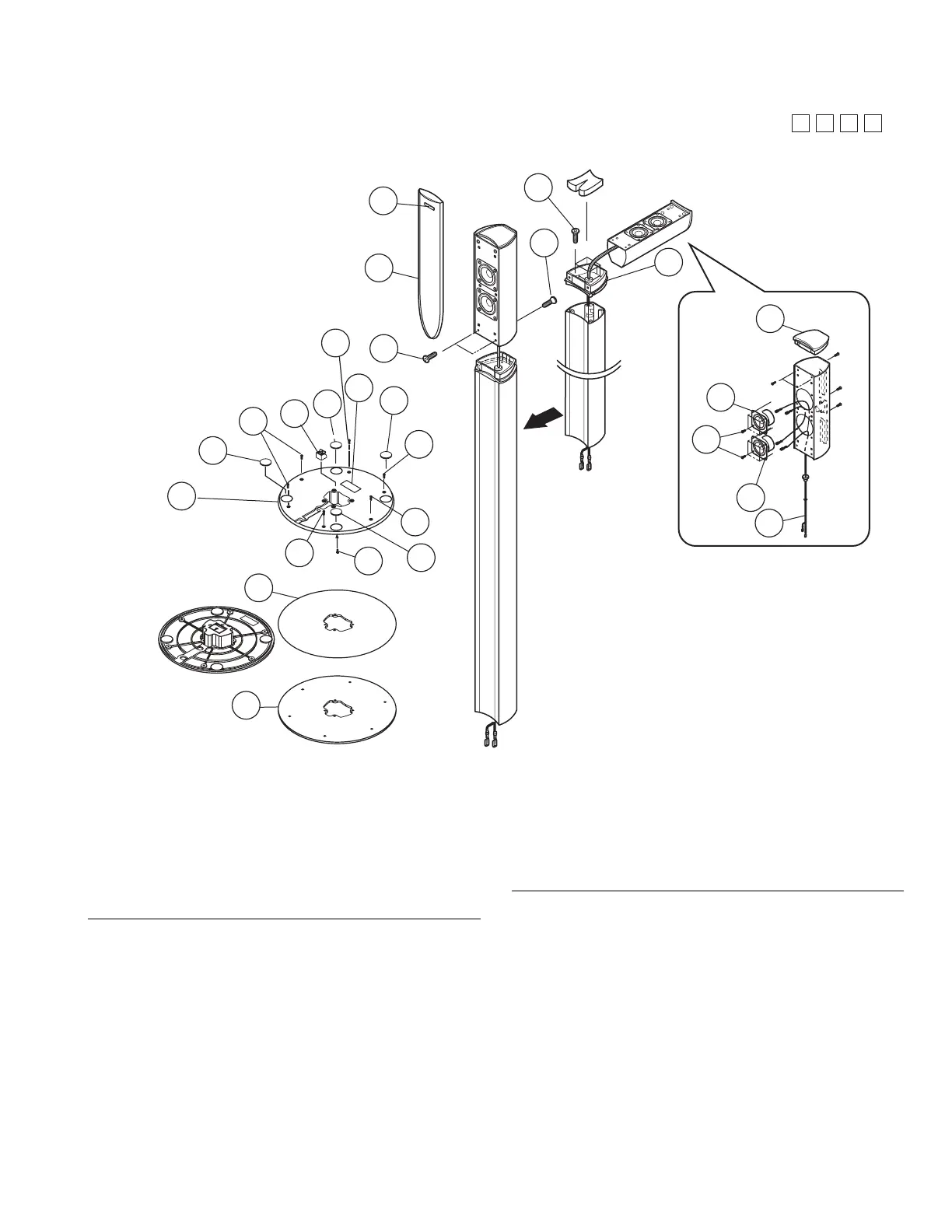

Speaker assembly and parts list
Speaker (Front speaker)
Block No. [M][6][M][M]
2
4
5
6
7
8
10
11
12
13
14
14
14
14
16
17
17
17
18
17
3
3
14
1
15
9
Block No.
M
M
M
6
JVC >ABS<
LV10 793
(Front speaker)
Symbol No.
Part No. Part Name Description Local
1 5700066201 TOP COVER (x4)
2 6100070611 CORD(WITH BUSH) (x4)
3 CR050005-01 SPEAKER (x8)
4 7007840606 SCREW (x32)
5 5700065901 JOINT LV21494-001A(x4)
6 7007841001 SCREW (x16)
7 7005730806 SCREW (x4)
8 7007830606 SCREW (x8)
9 9905000601 NET ASSY LV10792-001A(x4)
10 5900020901
BADGE(FRONT/
SURROUND)
LV43427-001A(x4)
11 5700066101 SQ RING (x4)
12 1030004001 TERMINAL (x4)
13 7006930801 SCREW (x4)
14 7008730801 SCREW (x24)
15 2810006901 SPACER (x4)
16 9000009101 STAND BASE LV21495-001A(x4)
17 9000009001 FOOT
LV43426-
001A(x16)
18 6000197381 RATING LABEL (x4)
Symbol No.
Part No. Part Name Description Local
