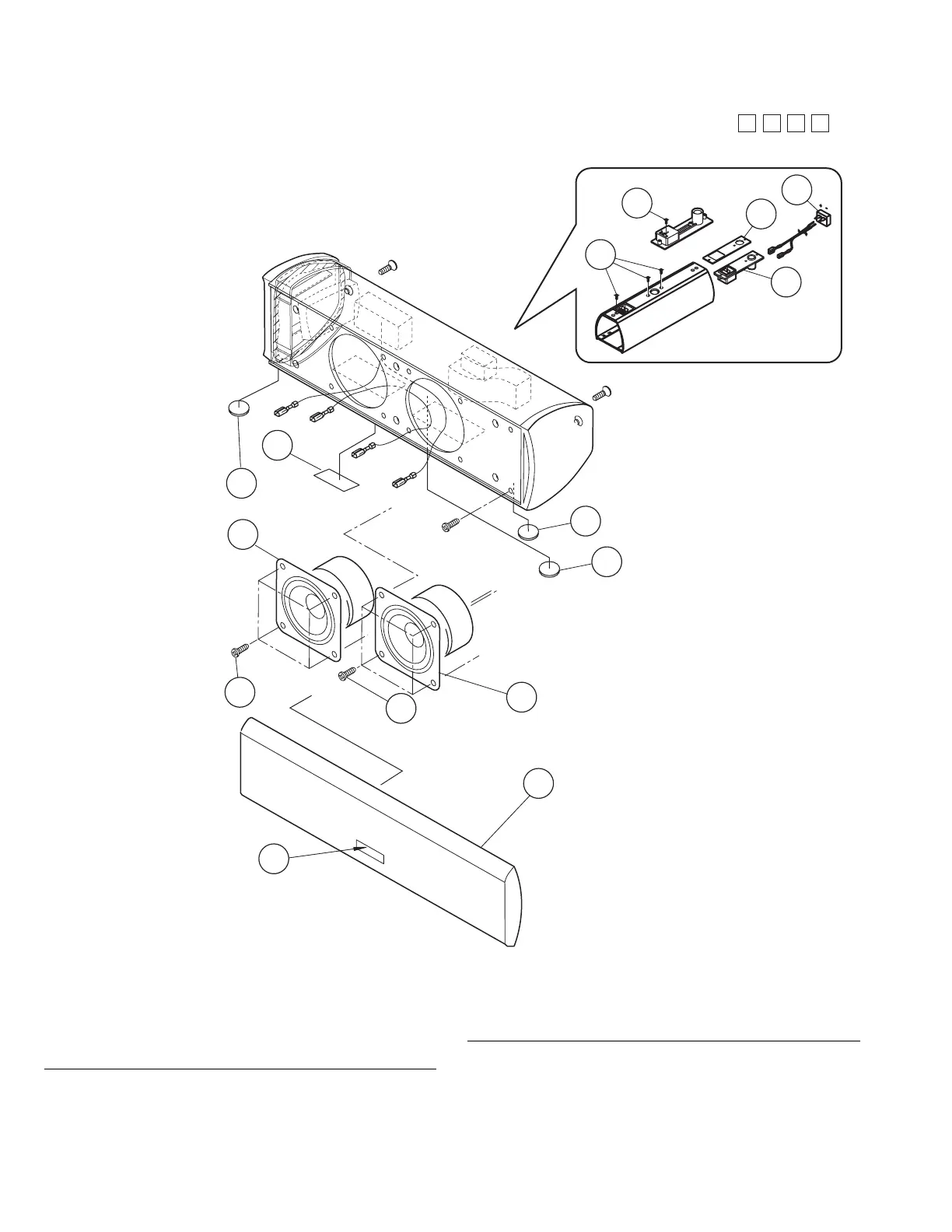

Speaker assembly and parts list
Speaker (Center speaker)
Block No. [M][7][M][M]
6
6
10
11
11
7
7
8
9
12
3
5
1
2
4
Block No.
M
M
M
7
(Center speaker)
Symbol No.
Part No. Part Name Description Local
1 3110006801 DUCT
2 1030004001 TERMINAL
3 7006930801 SCREW
4 2810006501 SPACER
5 7005731206 SCREW (x3)
6 CR050005-01 SPEAKER (x2)
7 7007840606 SCREW (x8)
8 9905000701 NET ASSY LV21497-001A
9 5900020901
BADGE(FRONT/
SURROUND)
LV43427-001A
10 9000005371 FOOT
11 9000005361 FOOT (x2)
12 6000197391 RATING LABEL
Symbol No.
Part No. Part Name Description Local
To Next Page
