JVC XV-THA85 Service Manual

3-9

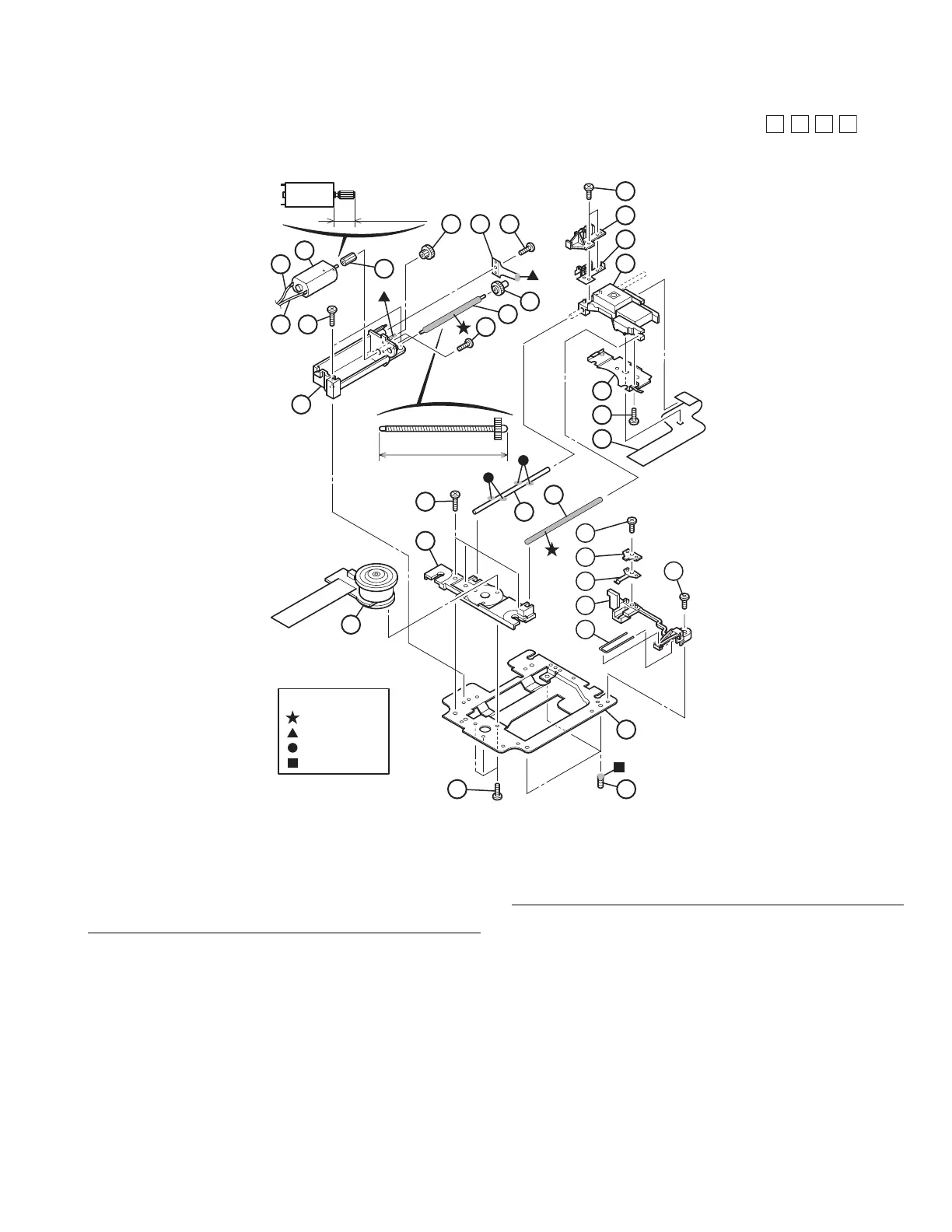

DVD mechanism assembly and parts list
DVD mechanism
Block No. [M][J][M][M]
12.0mm 0.2mm
+
_
65.2mm 0.2mm
+
_
EXL-V73-1C
Block No.
M
M
M
J
Grease
CFD-4007ZYZ
JVG-31N
PG-641
1401C
28
23
22
7
9
8
1110
6
5
32
33 13
4
12
18
20
19
21
1
3130
29
2
3
24
16
14
25
15
17
26
27
 Symbol No. Part No. Part Name Description Local
1 LE20520-002A MECHA BASE
2 LE20516-002A SPINDLE BASE
3 QYSDST2605M TAP SCREW M2.6 x 5mm(x3)
4 LE30909-001A FEED HOLDER ASSY
5 QAR0165-001 FEED MOTOR
6 LV41510-001A FEED GEAR T
7 QYSPSPU2040M SCREW M2 x 4mm(x2)
8 LV41512-002A FEED GEAR E
9 LV41517-003A LEAD SCREW
10 LV41511-003A FEED GEAR M
11 LE40742-001A THRUST SPRING
12 QYSDSF2005Z SCREW 2mm x 5mm
13 QYSDST2605M TAP SCREW M2.6 x 5mm(x2)
14 LE20517-001A SHAFT HOLDER
15 LE40744-001A BAR SPRING(1)
16 LV41121-002A SHAFT
17 QYSDST2605M TAP SCREW M2.6 x 5mm
18 QAL0452-001 PICK UP
19 LE20519-001A SW ACTUATOR
20 LE30886-001A LEAD SPRING
21 QYSPSFU1740Z TAP SCREW M1.7 x 4mm(x2)
22 LE30888-003A P.U.SPRING
23 QYSPSGU1430Z TAP SCREW M1.4 x 3mm
24 LV41121-002A SHAFT
25 LE40743-001A T.SPRING(S)
26 LE40774-001A PLATE
27 QYSDST2606Z SCREW 2.6mm x 6mm
28 QAL0284-001 FPC
29 QAR0268-001 SPINDLE MOTOR
30 QYSPSPU1760Z SCREW M1.7 x 6mm(x3)
31 QYYASPF2608N HEX SCREW M2.6 x 8mm(x3)
32 QUB549-05A1A1 SIN TWIST WIRE
33 QUB544-05A1A1 SIN TWIST WIRE
 Symbol No. Part No. Part Name Description Local
