Kaba R79K-1G Series User Manual

4
RFID Wall Reader Installed with ILCO RAC 4 or RAC4XT Installation Guide - PK3660_07_16
Instructions
1. Pull cable(s) for RAC through hole in the back plate and, if applicable, through the gasket then screw the mounting plate of
the reader to the wall using the screws provided. Use the 1 1/4” wood screws and inserts for drywall, or use the 1/2” steel
screws for mouting on a metal frame
2. Adhere the round gasket (in hardware bag) to the back plate (item #4) with the cutout located so the gasket does not cover
the screw (item #7) as shown in Figure 1, if not installed
3. Connect cables for ILCO RAC 4 or RAC 4XT as per page 3 of this document
4. Connect ble cable to ble connector (figure 3)
5. Hook the top of the reader enclosure (item #2) onto the top of the mounting plate (item #4) and secure together with the
included screw (item #1), tightened at the bottom of the reader

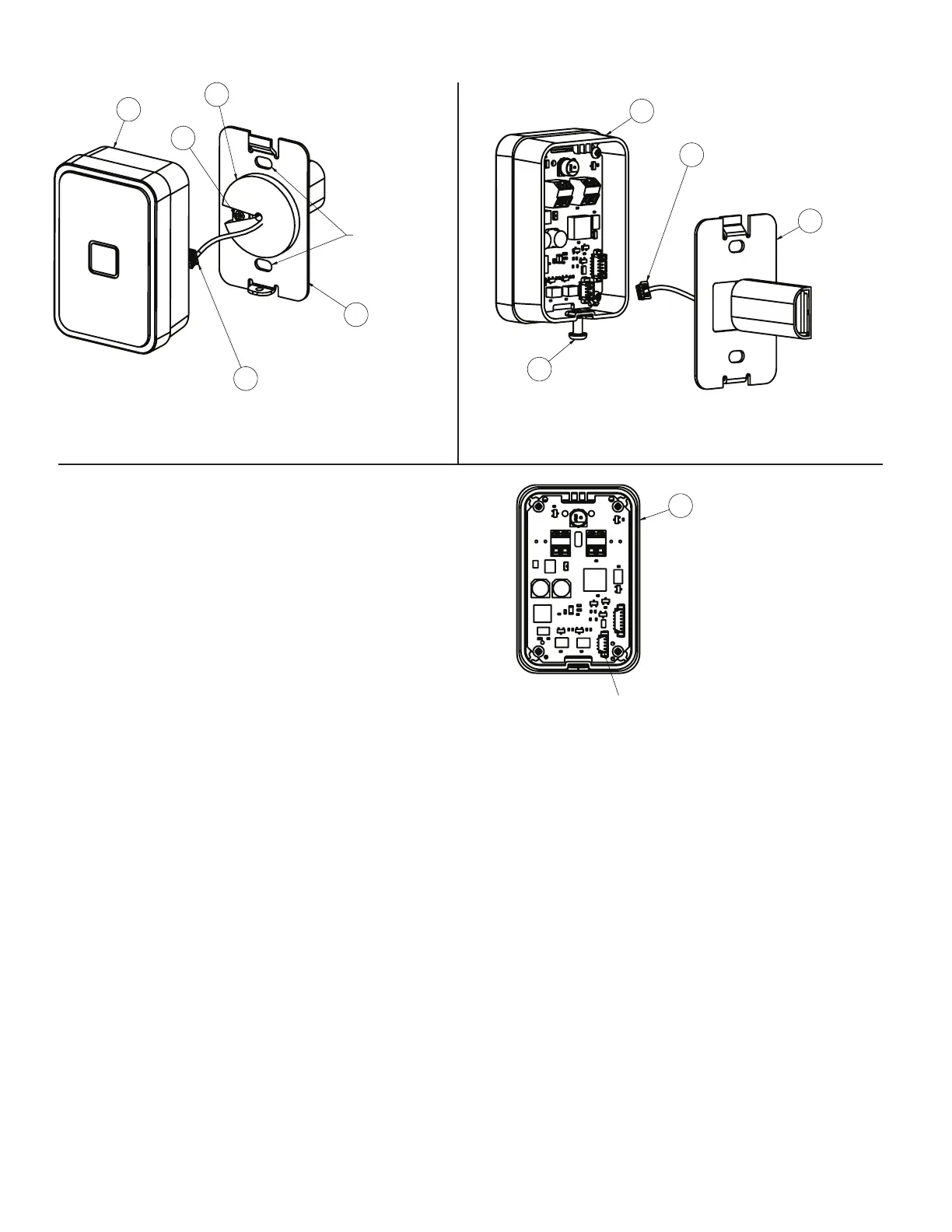

RFID Wall Reader Instructions - (Surface Mount)
FIGURE 2
1
2
4
6
BLE MODEL SHOWN
FIGURE 3
BLE CONNECTOR
2
2
6
4
FIGURE 1
3
BLE MODEL SHOWN
7
MOUNTING SCREW
HOLES

Kaba R79K-1G Series Specifications

General

Brand	Kaba
Model	R79K-1G Series
Category	Rfid Systems
Language	English
