Kaba R79K-1G Series - Flush Mount Installation; Flush Mount Installation Steps

5
RFID Wall Reader Installed with ILCO RAC 4 or RAC4XT Installation Guide - PK3660_07_16
Instructions
1. Remove screws (item #4) to remove reader assembly (item #2) from bracket
2. Install the drywall bracket on the wall
3. Connect cables for ILCO RAC 4 or RAC 4XT as per page 3 of this document
4. Install reader (item #2) then faceplate (item #5) using screws (item #4)
RFID Wall Reader Instructions - (Flush Mount)

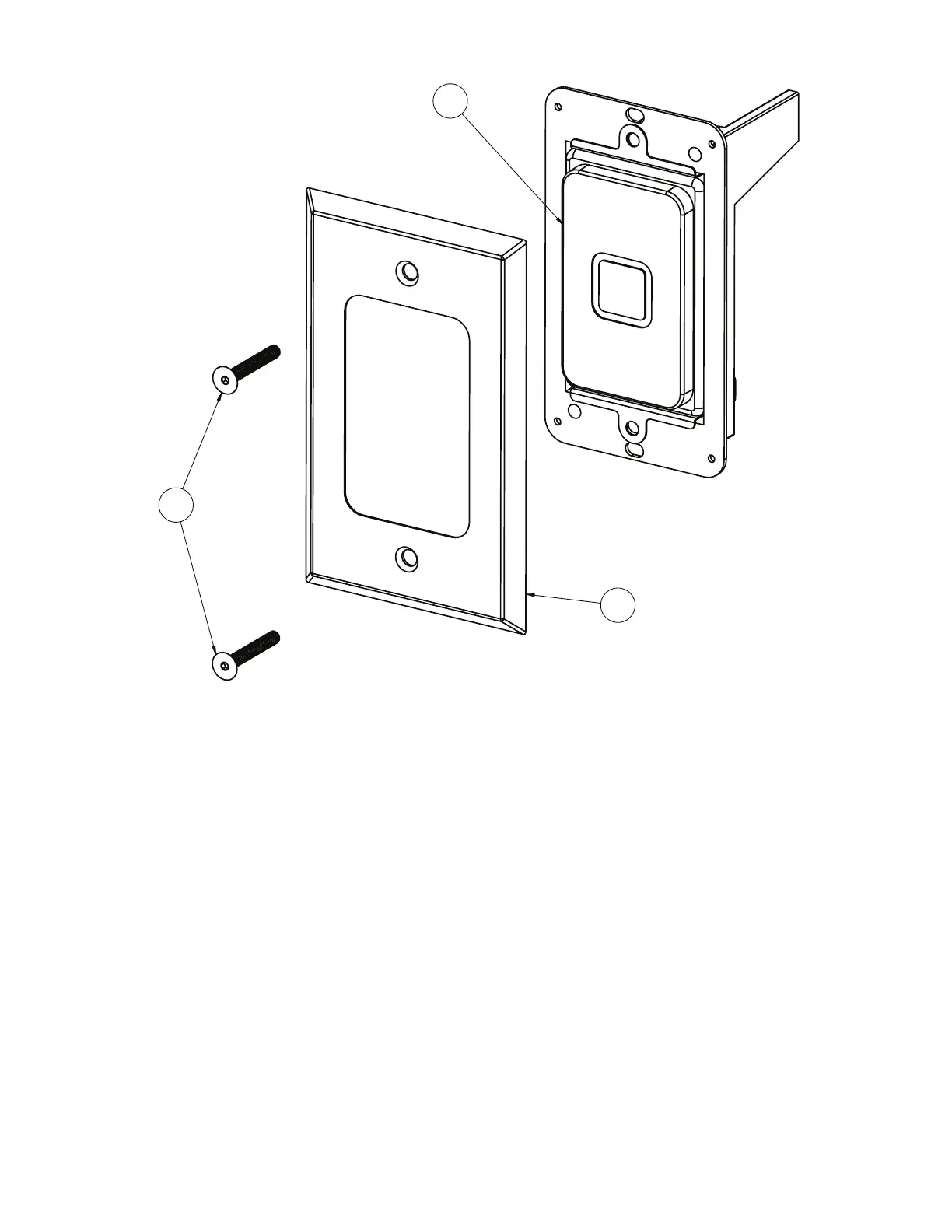

FIGURE 1
4
5
2
