Kaba R79K-1G Series User Manual

6
RFID Wall Reader Installed with ILCO RAC 4 or RAC4XT Installation Guide - PK3660_07_16
Instructions

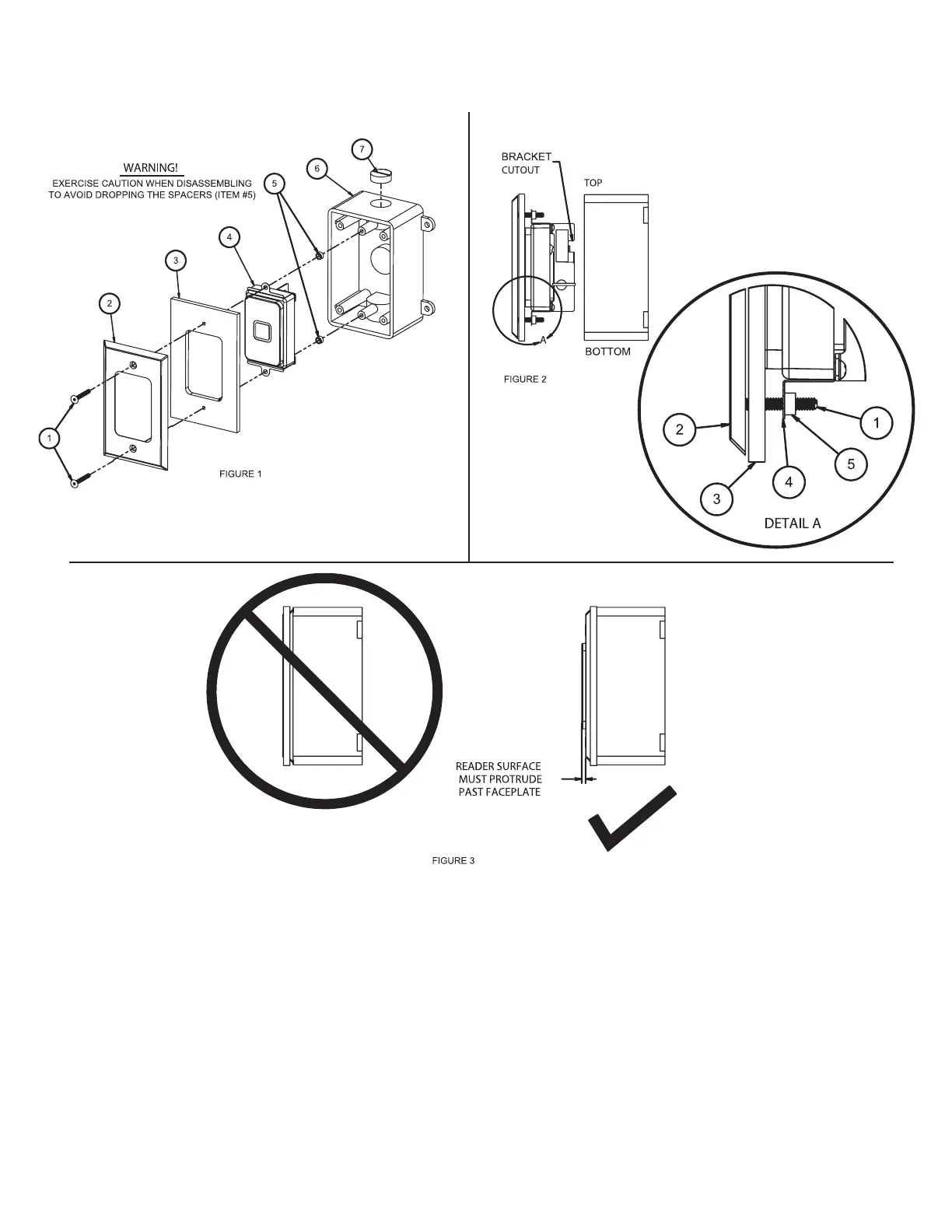

1. Remove screws (item #1) to gain access to reader assembly (item #4)
2. Carefully remove reader assembly (item #4) (see warning above) remove protective film from reader face
3. Install the gang box with proper screws, not provided
4. Connect cables for ILCO RAC 4 or RAC 4XT as per page 3 of this document
5. Reader assembly orientation to be as shown in figure 2 with bracket cutout at the top when installing BLE or as shown on
page 3 in Figure A when BLE not installed.
6. Re-assemble items #1 through #5 in order as shown in detail a, then assemble to gang box (item #6) and tighten screws
making sure the reader face protrudes past the faceplate as shown in Figure 3
RFID Wall Reader
Gang Box Instructions
(USED FOR PART NUMBER R79K-1GXX-XXX)

Kaba R79K-1G Series Specifications

General

Brand	Kaba
Model	R79K-1G Series
Category	Rfid Systems
Language	English
