RFID Wall Reader Installed with ILCO RAC 4 or RAC4XT Installation Guide - PK3660_07_16
Instructions

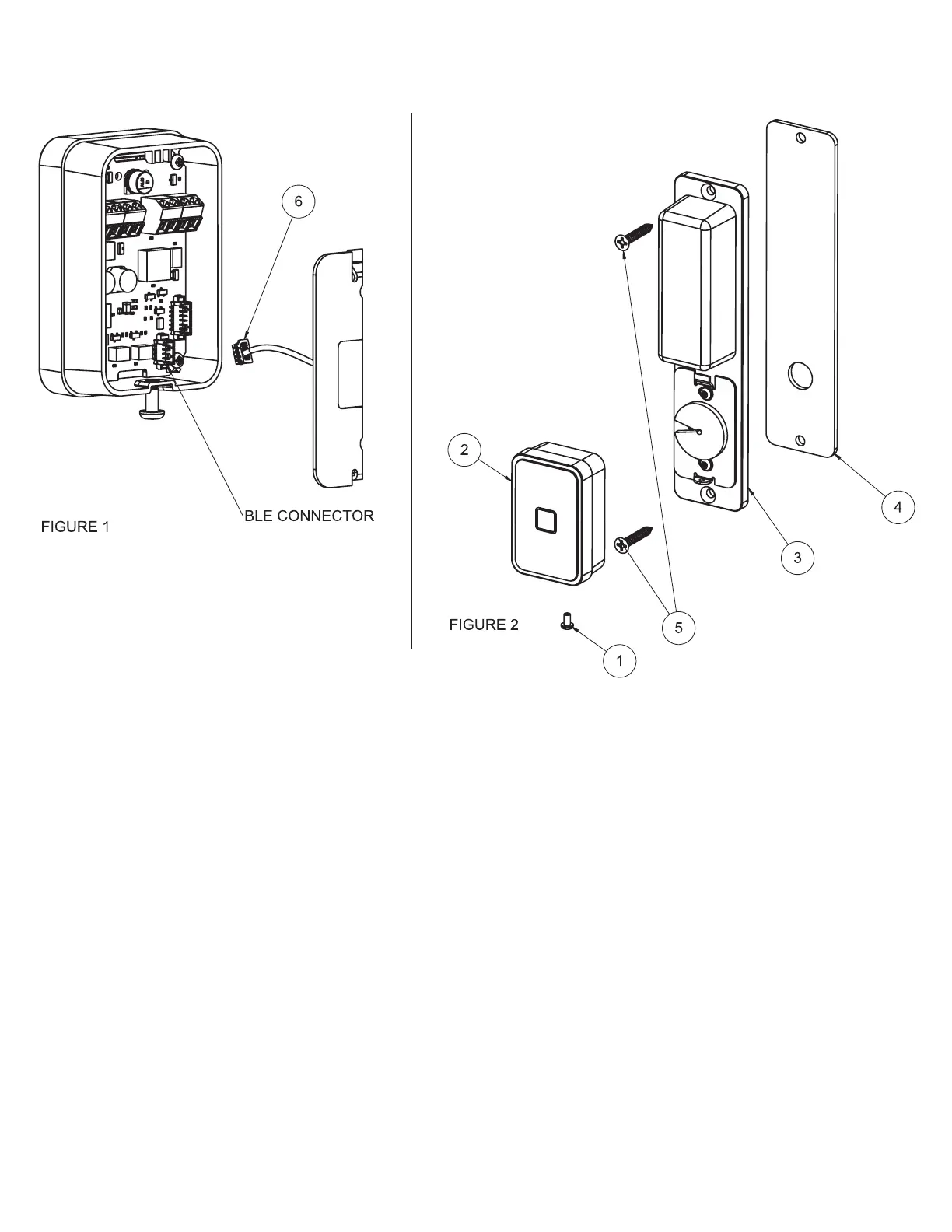

1. Remove screw (item #1) to gain access to reader assembly (item #2)
2. Disconnect BLE cable (item #6), if necessary
3. Remove protective film from reader face (item #2)
4. Pull cable(s) for RAC through hole in the back plate and, if applicable, through the gasket then attach plate (item #3) to
surface using gasket (item #4) and screws (item #5) that are included in the hardware bag
5. Connect cables for ILCO RAC 4 or RAC 4XT as per page 3 of this document
6. Re-connect ble cable (item #6)
7. Re-assemble reader (item #2) to assembly and secure with screw (item #1)
RFID Wall Reader
BLE Narrow Stile Mounting Instructions
(USED FOR PART NUMBER R79K-1NXX-XXX)
