Kafas F02 - Page 10

The image data recorded by the video camera are transmitted to the KAFAS control unit
along an LVDS data line. The video camera and the control unit are the components that
are fundamental to the lane departure warning’s range of functions.

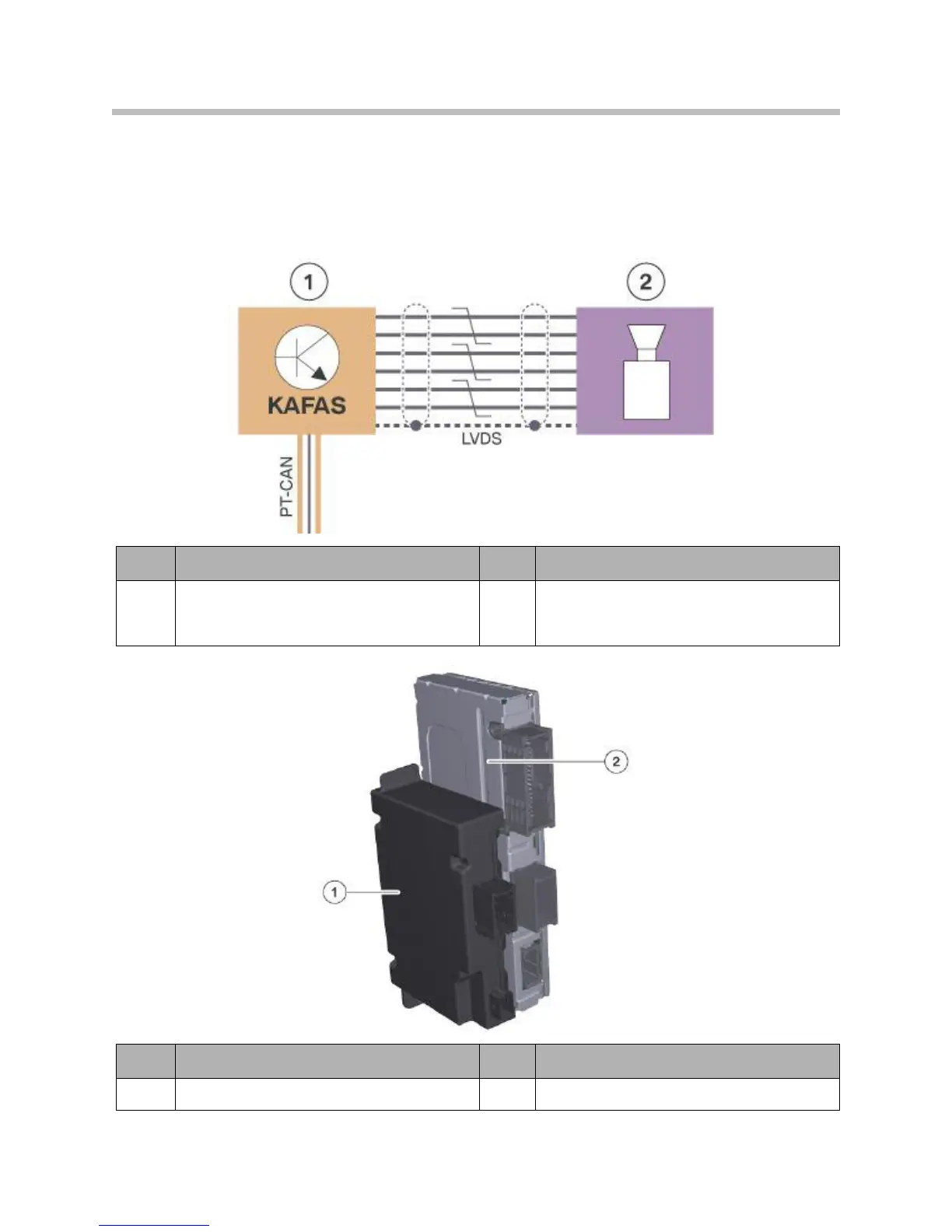

KAFAS control unit and video camera in the F01/F02
Index Explanation Index Explanation
1
KAFAS control unit with
PT-CAN
2
Lane departure warning video
camera with LVDS connection
to KAFAS control unit
Index Explanation Index Explanation
1
KAFAS control unit Driver's footwell
2
Central gateway module (ZGM)
10
F01 KAFAS
