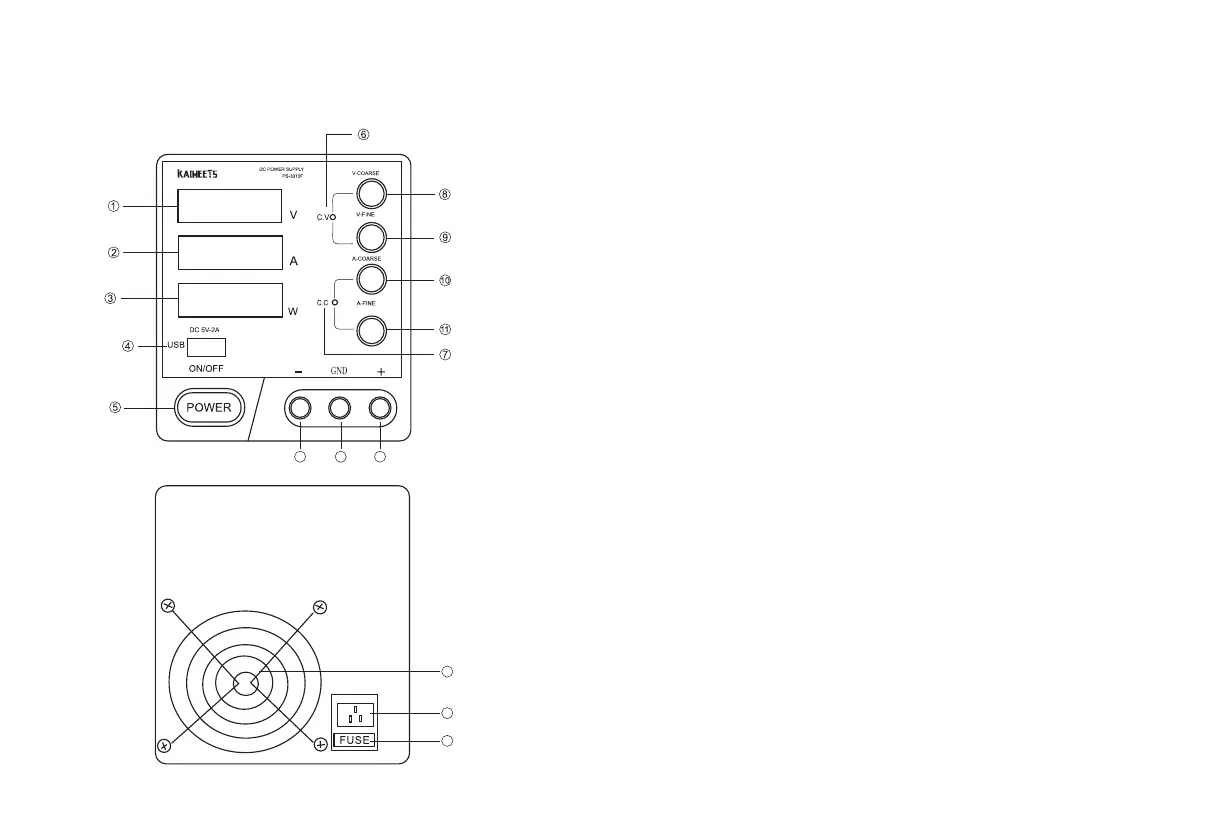

1. Output voltage display
2. Output current display
3. Output power display
4. USB power supply
5. Power ON/OFF switch
6. C.V. Indicator (Constant voltage mode indicator)
7. C.C. Indicator (Constant current mode indicator)
8. Coarse voltage regulator (To coarsely adjust output voltage)
9. Fine voltage regulator (To slightly adjust output voltage)
10. Coarse current regulator (To coarsely adjust output current)
11. Fine current regulator (To slightly adjust output current)
12. Negative output terminal
13. Ground output terminal
14. Positive output terminal
15. Fan
16. Power Connection
17. Concealed fuse box (Open the back cover to get to the fuse)
Controls and Indicators
3
12 13 14
16
17
15
