Battery available capacity operating field
20 40 60 80 100
Operation Control Field
The electronic power assistance is switched
on and off by using a switch mounted on the
handlebars (“Power”)
Switching on the power assistance
Press the on/off switch on the control panel (“Power”)
The LEDs on the control panel light up for about two seconds and then go out again. Do
not use the pedals when the LEDs are on. The torque sensor is configuring the control
programme.
● After this, the battery status indicators light up and show the remaining capacity of the
battery. If the lower power LED is blinking, you must charge the battery immediately
before use (see section on LED light mode when riding).

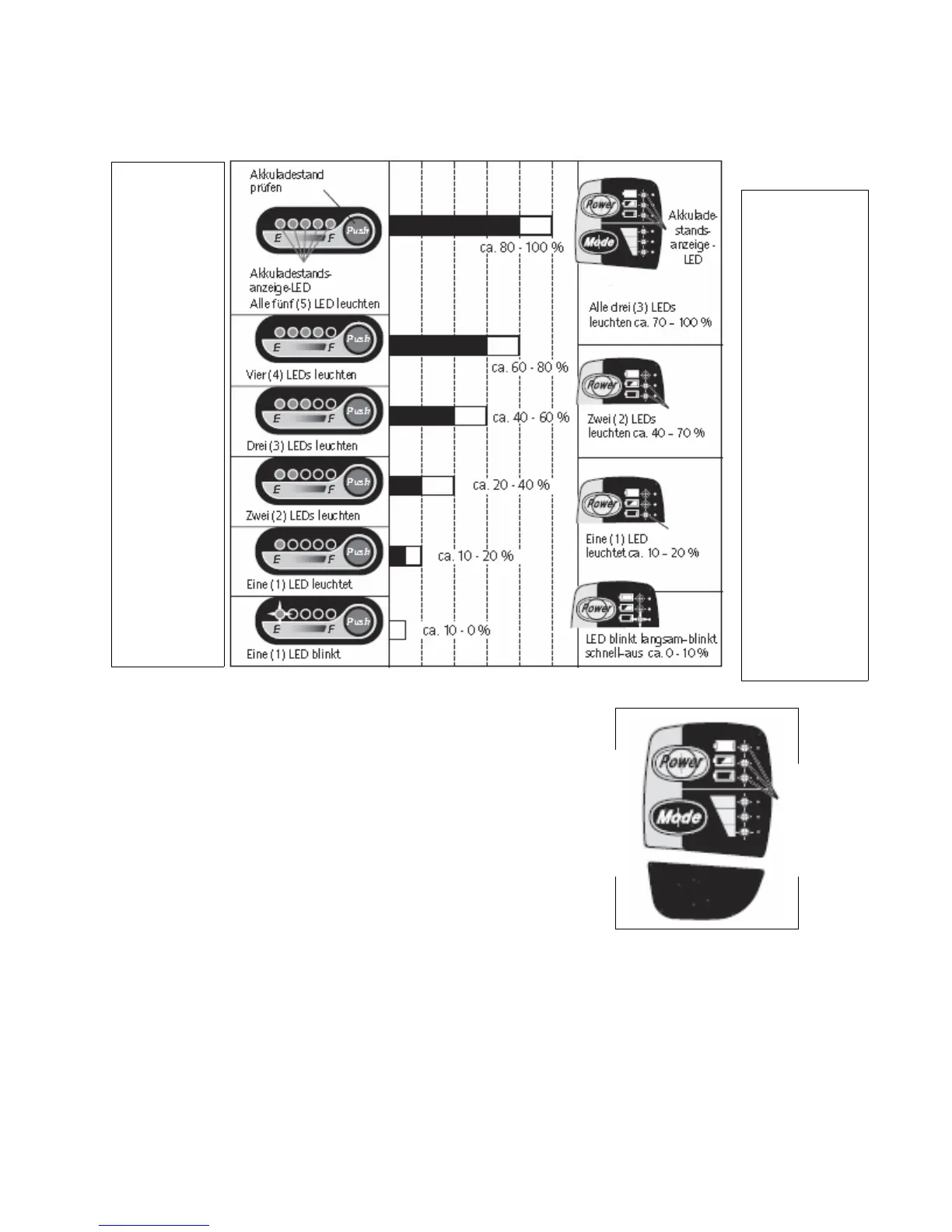

Battery status
indicator LED
All three LEDs
on means about
70-100%
capacity
remains
Two LEDs on
about 40-70%
One LED is on,
about 10-20%
LED blinks
slowly – blinks
quickly - off
about 0-10%
Check battery
status
Battery status
indicator LED
All five (5)
LEDs on
80-100%
Four LEDs on
60-80%
Three LEDs on
40-60%
Two LEDs on
20-40%
One LED on
10-20%
One LED
blinking 10-0%
Battery charge
status
indicator
LED
On/Off switch
Selection of
assistance level
“Mode”
