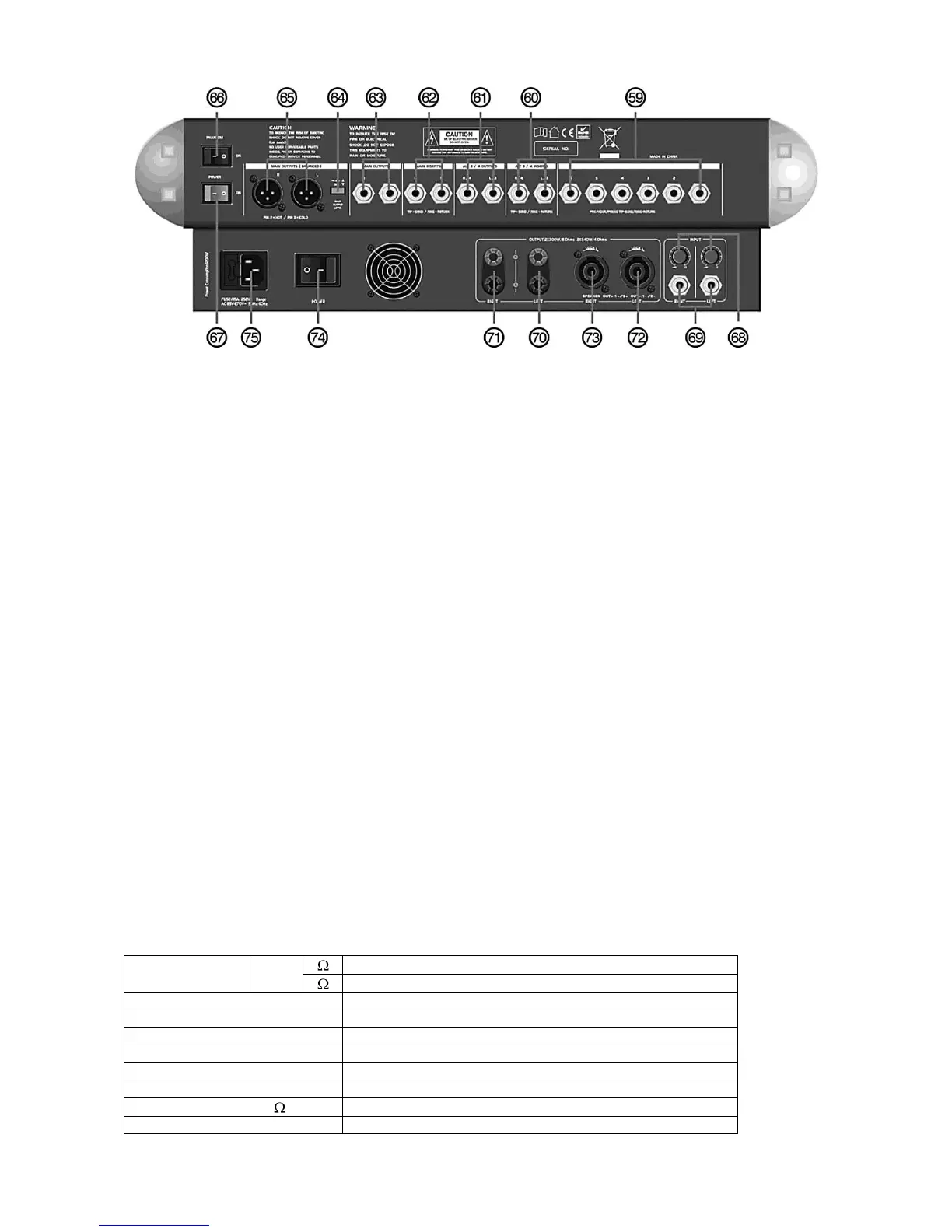

(59) CHANNEL INSERTS Pre-fader/pre-EQ. Tip = send / Ring = return.
(60) ALT3-4 INSERTS
(61) ALT3-4 OUTPUTS
(62) MAIN INSERTS
(63) MAIN OUTPUTS (UNBALANCED)
(64) MAIN OUTPUTS (BALANCED)
(65) BALANCED MAIN OUTPUT LEVEL SWITCHES To choose between the two operating level settings-10dBV and +4dBU.
(66) PHANTOM POWER When you push the switch, all Mic outputs have +48V phantom power supplied.
(67) POWER ON For mixing sections.
(68) AMPLIFIER LEVEL Adjusts the signal levels sent to the amplifier.
(69) BALANCED INPUT FOR SIGNALS FROM AMPLIFIER Get different signals from the source.
(70) LEFT binding output: red+ / black-.
(71) RIGHT binding output: red+ / black-.
(72) LEFT Speakon output: 1+ 2+ / 1- 2-.
(73) RIGHT Speakon output: 1+ 2+ / 1- 2-.
(74) POWER SWITCH For amplifier.
(75) POWER SUPPLY (fuse socket) - Please ensure the correct specifications before replacing the fuse.
Output power
EIA 1KHZ 1% THD
Stereo
8
300w + 300w
4
540w + 540w
Frequency range
20Hz-20KHz-0.5dB
S/N ratio
100dB
Distortion (typical)
Less than 0.03%
Distortion (SMPTE)
Less than 0.04%
Damping factor (5Hz-1KHz)
280
Slew rate
20V/uS
Crosstalk @ rated output 8 1KHz
A-B 80dB, B-A 80dB
Protection
Soft start, DC, AC, short circuit , clip limiter, thermal cut, power limiter
