Kangaroo Ava 9301B - Page 11

Assembly InstructionsAva
11
Step 1: Cabinet Shell
X
6x35 Cam Bolt x6
c1
8x30 Dowel Pin x4
d1

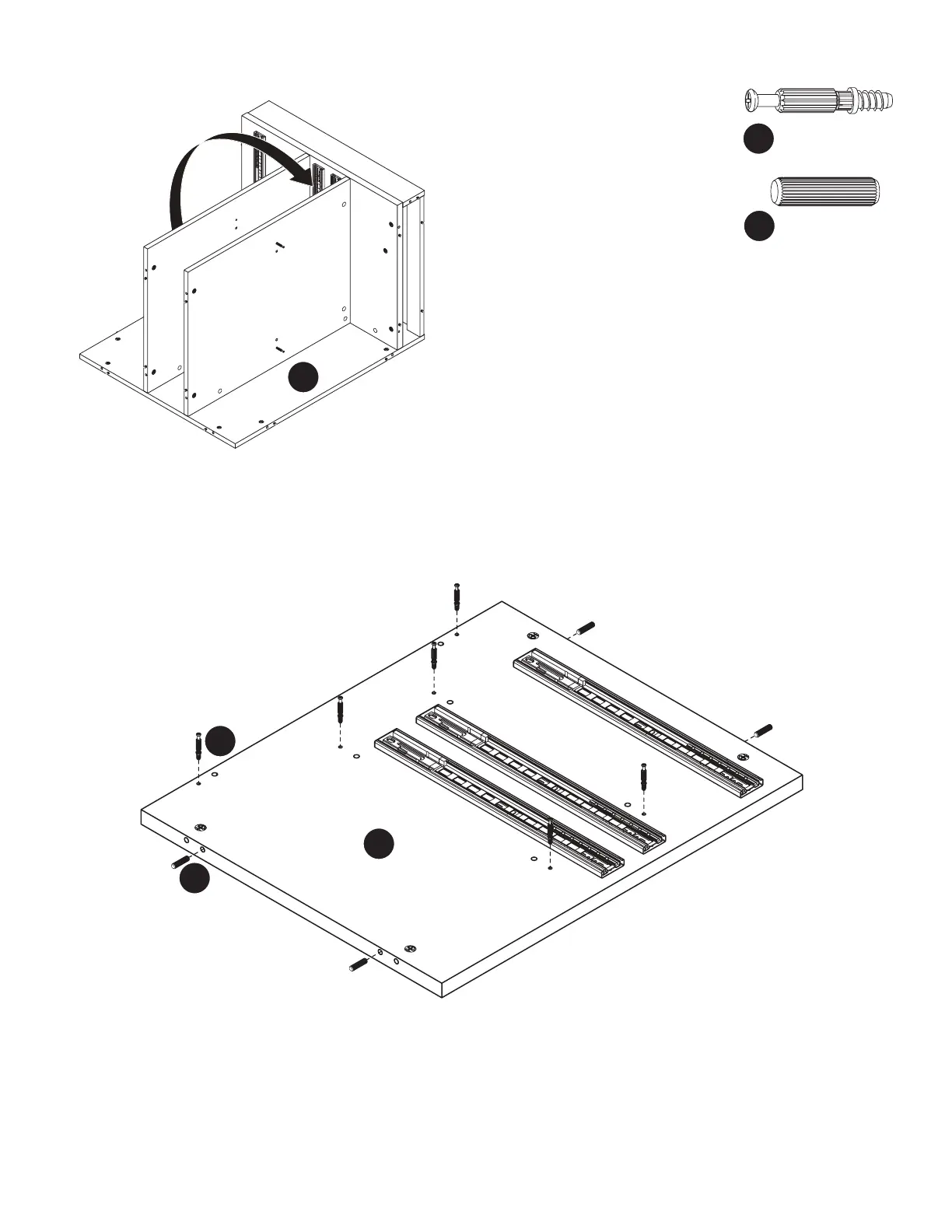

Carefully turn the cabinet over so that Panel D is
on the floor. You may need someone to help you
with this step.
Attach c1 Cam Bolts to Panel X as shown.
Insert d1 Dowel Pins into the edges of Panel X as shown.
c1
d1
D
