Kangaroo Ava 9301B - Attach Panels F1 and F2 to Panel Z

Assembly InstructionsAva
9
Step 1: Cabinet Shell
F2
F1
D
5
⁄
8
“ Cam Cover x4
c2
6x35 Cam Bolt x9
c1
8x30 Dowel Pin x6
d1

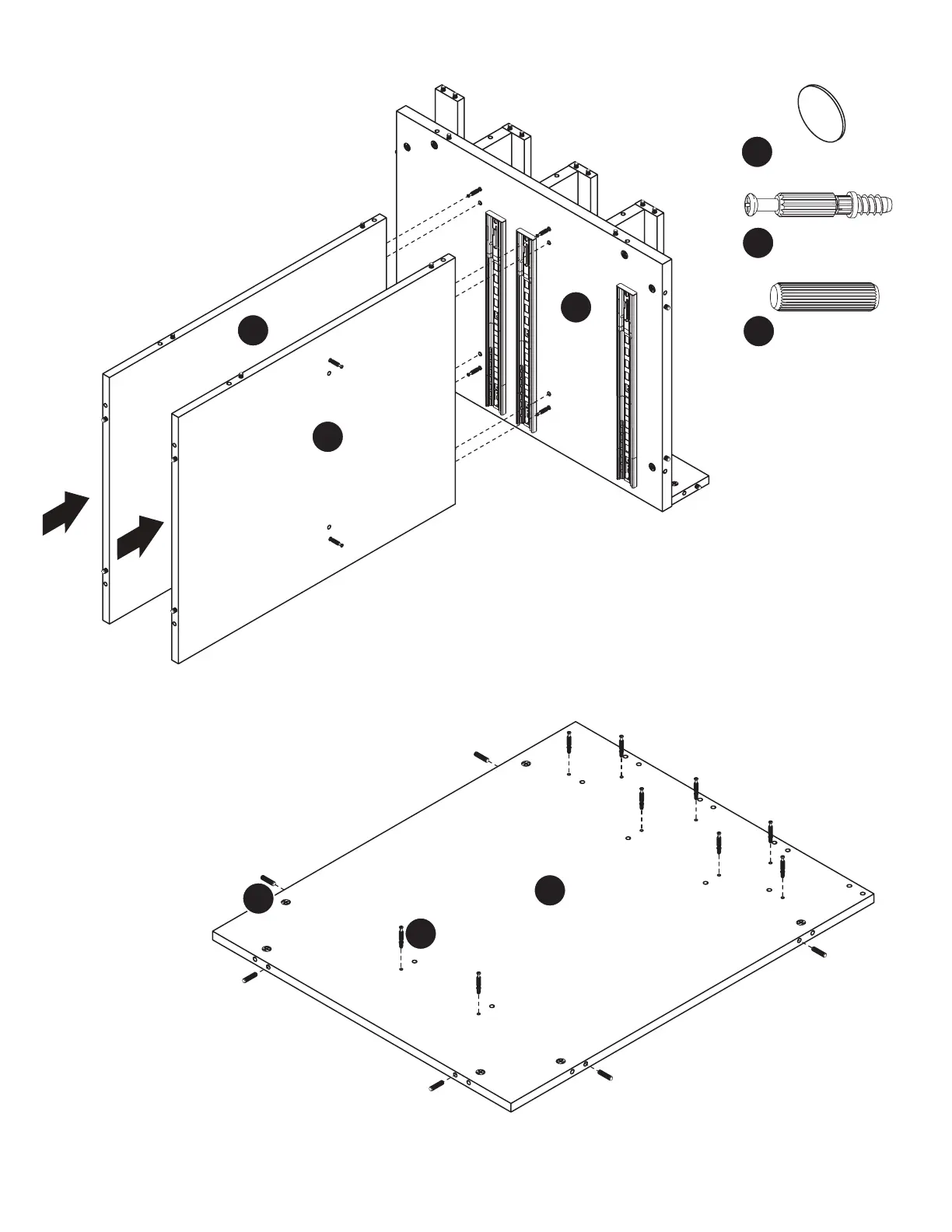

Attach Panels F1 and F2 to Panel Z as shown.
Insert cam bolts into cam locks, tighten, and
apply c2 Cam Covers.
Z
Attach c1 Cam bolts to Panel D.
Insert d1 Dowel Pins into the edges
of Panel D.
d1
c1
