Assembly InstructionsKangaroo
10
Part 1: Cabinet Shell
180°
5
⁄
8
“ Cam Cover x2

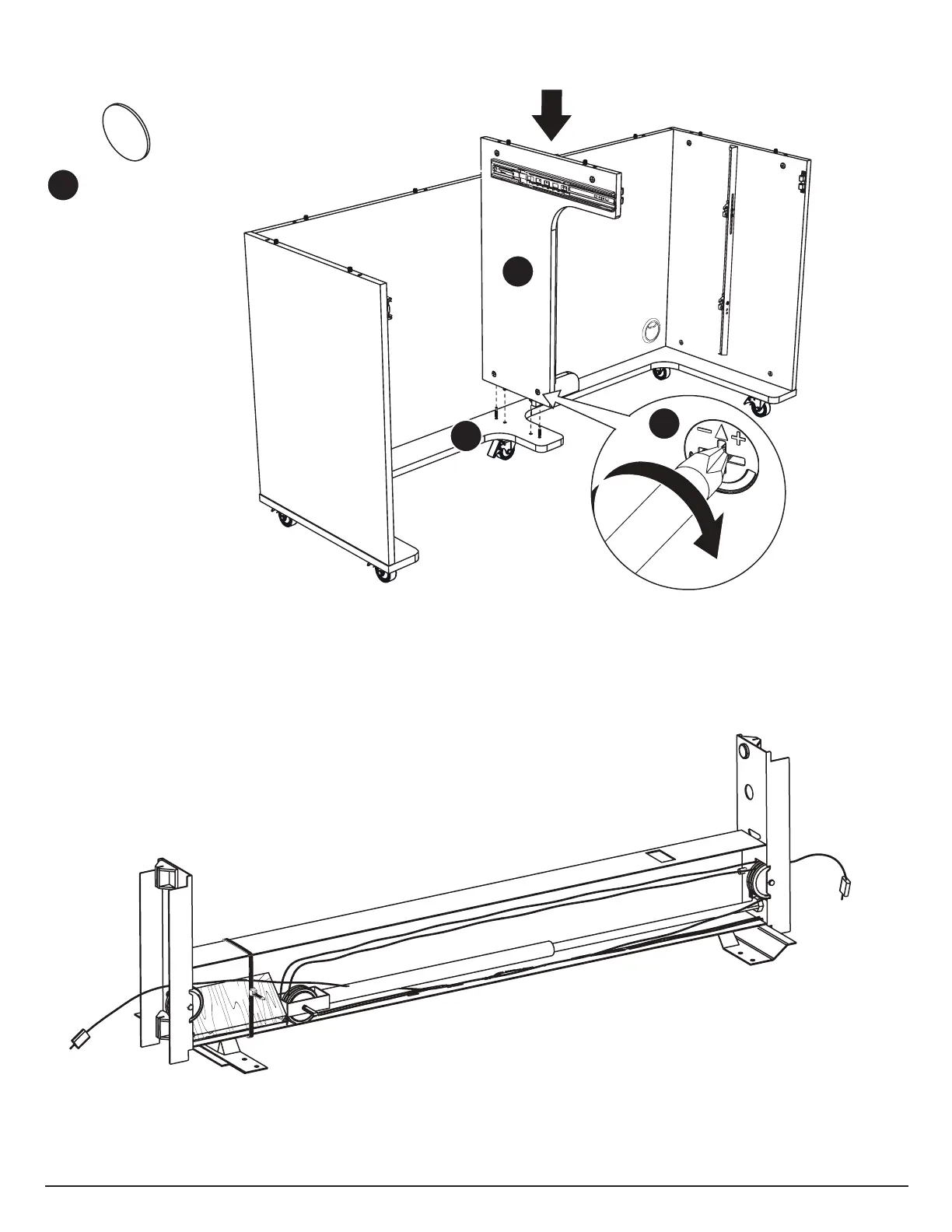

Insert c1 Cam Bolts on Panel G into
cams on Panel Y. Tighten and apply
c2 Cam Covers.
LIFT INSTALLATION WARNING:
DO NOT remove the small wooden block from the Lift until assembly is complete. If the block is removed or falls out
before lift assembly is complete, the cables will retract, making installation difficult. If the
block falls out before complete assembly, Call Customer Service at 1-800-533-7347, ext. 1
for assistance, or visit www.arrowcabinets.com/assembly-videos and find the
“Alternate Airlift Attachment Steps” video.
This illustration shows the back view of the Lift. Notice the
wooden block and zip tie; the wooden block holds the piston
in place so that the cables can be easily handled and inserted
into the Lift Rails installed on your cabinet.
