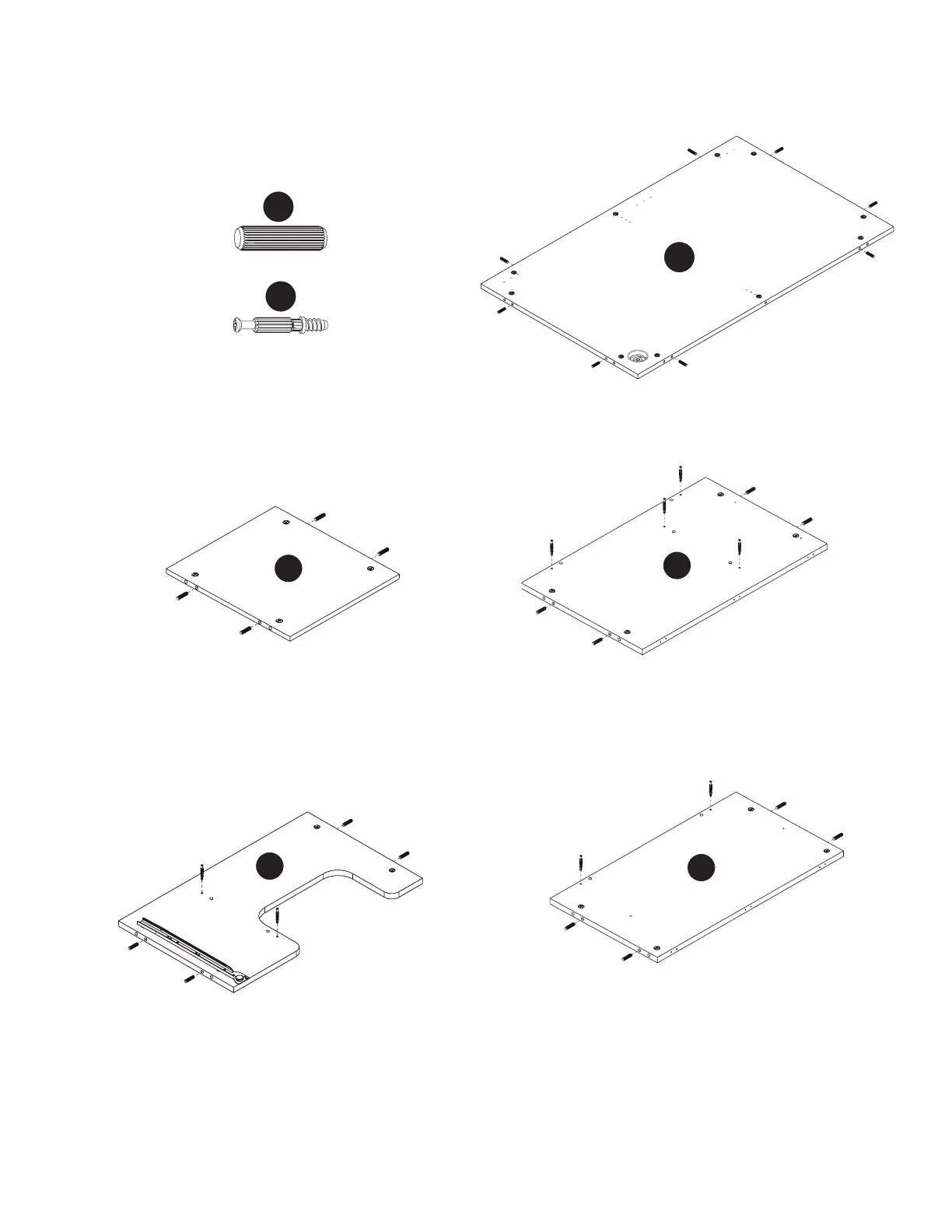

Step 2: Cabinet Sides and Back
8x30 Dowel Pin x24
d1
D
Insert 8 d1 Dowel Pins into the edges of Panel D
6x35 Cam Bolt x8
c1
F
X
Z
Y
Insert 4 d1 Dowel Pins into the
edges of Panel F
Insert 4 d1 Dowel Pins into the edges of Panel X
Install 4 c1 Cam Bolts into pre-installed Cam
Anchors on Panel X
Insert 4 d1 Dowel Pins into the edges of Panel Y
Install 2 c1 Cam Bolts into pre-installed Cam
Anchors on Panel Y
Insert 4 d1 Dowel Pins into the edges of Panel Z
Install 2 c1 Cam Bolts into pre-installed Cam
Anchors on Panel Z
