Assembly InstructionsWallaby II
5
Step 1: Cabinet Base
We can’t wait to get your brand new Wallaby II Sewing Cabinet up and running. Please contact our Customer Service Team at
1-800-533-7347, ext. 1 during normal business hours with any assembly related questions.
Locking Plate
Caster x5
8x16 Fix Bolt x20
6x35 Cam Bolt x11
Allen Wrench x1

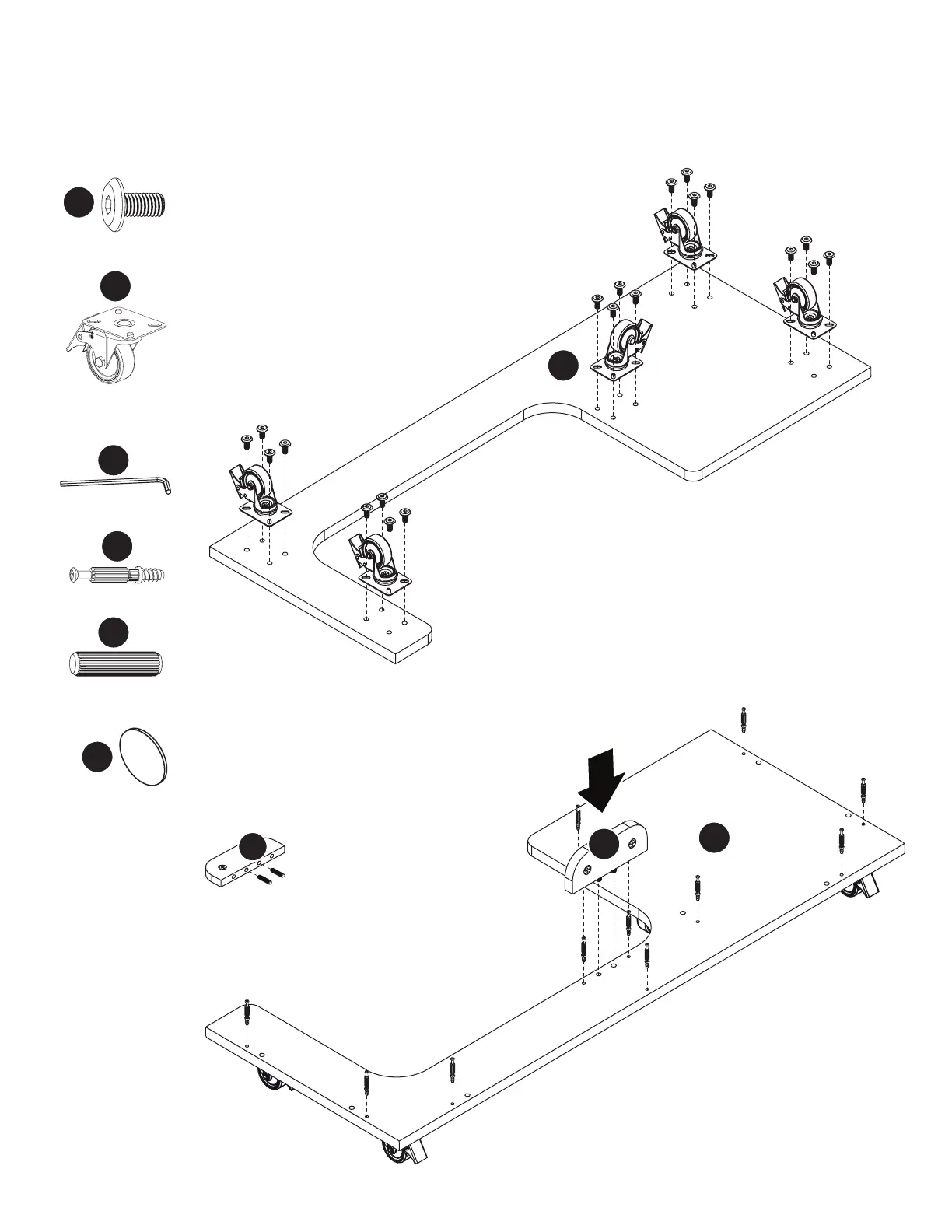

Attach t2 Locking Plate Casters
to Panel G with b1 Fix Bolts as
illustrated.
8x30 Dowel Pin x2
Insert d1 Dowel Pins
into Panel O
Install c1 Cam Bolts into pre-installed
Cam Anchors as illustrated.
Attach Panel O to Panel G. Tighten
Cam Locks and apply Cam Covers.
Set Panel G aside.
5
⁄
8
“ Cam Cover x2
To Next Page
