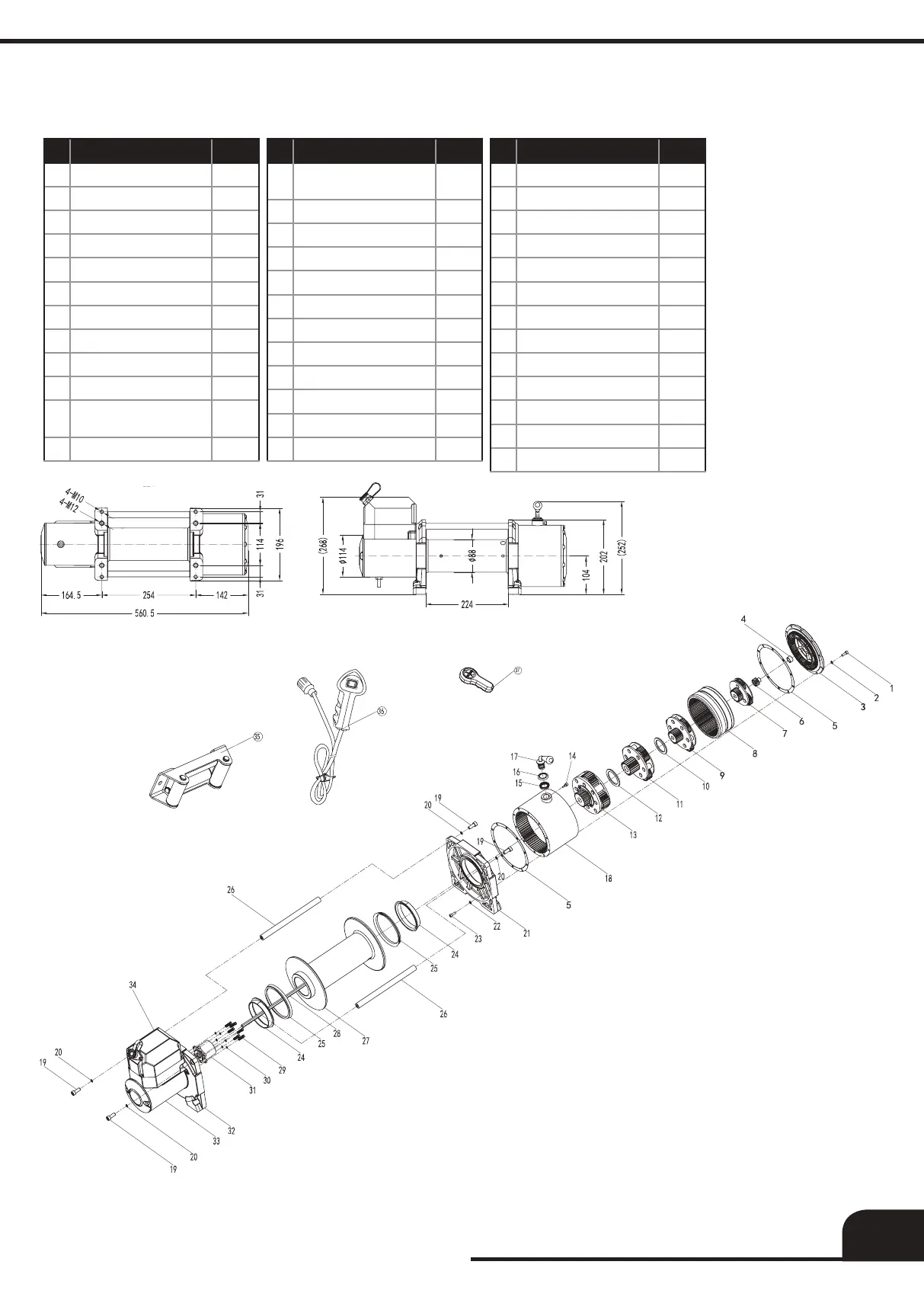

TECHNICAL DRAWINGS AND DIAGRAMS - 20000
REPLACEMENT PARTS LIST - 20000
No. Name Quantity
1 Allen screw M5X16 10
2 Spring washer 10
3 Transmission lid 1
4 Bearing 1
5 Gasket 2
6 First stage sun gear 1
7 First stage planetary gear 1
8 Ring gear 1
9 Second stage planetary gear 1
10 Spacer ring 1
11 Third stage planetary gear 1
12 Spacer ring 1
No. Name Quantity
13 Fourth-stage planetary gear 1
14 Clutch lever screw 1
15 Gasket 1
16 Clutch pin cover 1
17 Clutch lever 1
18 Gear housing 1
19 Allen screw M8X25 4
20 Spring washer 4
21 Gear mounting flange 1
22 Allen screw M5X16 10
23 Spring washer 10
24 Plain bearing 2
No. Name Quantity
25 Oil seal ring 2
26 Tie rod 2
27 Drum 1
28 Drive shaft 1
29 Allen screw M4X16 6
30 Spring washer 6
31 Brake assembly 1
32 Motor mounting flange 1
33 Motor 1
34 Box with relays 1
35 Roller cable guide 1
36 Wired remote control 1
37 Wireless remote control 1
