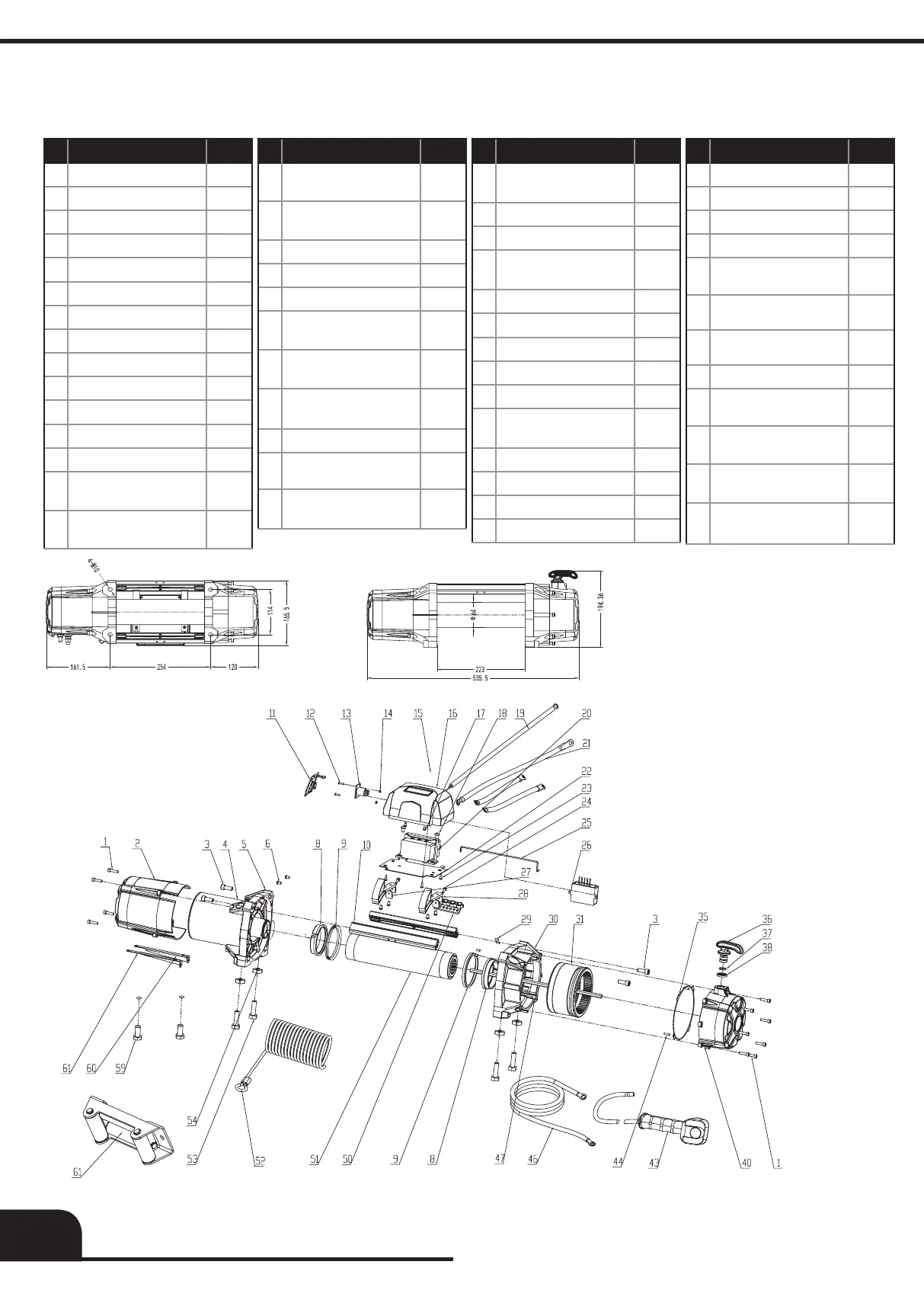

TECHNICAL DRAWINGS AND DIAGRAMS - 12000 XT-HD
REPLACEMENT PARTS LIST - 12000 XT-HD
No. Name Quantity
1 Allen screw M5X20 11
2 Motor cover 1
3 Screw of the tie rod 4
4 Motor assembly 1
5 Motor mounting flange 1
6 M5X8 screws 6
8 Plain bearing 2
9 Oil seal ring 2
10 Tie rod 2
11 Remote control slot cover 1
12 Remote control socket screw 2
13 Remote control socket 1
14 Remote control socket nuts 2
15 Complete box with relays 1
16
The upper part of the box with
relays
1
No. Name Quantity
17 Screws for the box with relays 2
18 Screws for the box with relays 2
19 Motor-relay cord 1
20 Relay assembly 1
21 Motor-relay cord 3
22 Base for the box with relays 1
23 Screws for the box with relays 4
24 Screws for the box with relays 2
25 Power cord 1
26
Wireless remote control
receiver
1
27
Assembly kit for the box over
the drum
2
No. Name Quantity
28
Assembly kit for the box over
the drum
2
29 Pin 4X8 4
30 Gear mounting flange 1
31 Ring gear 1
35 Gasket 1
36 Clutch lever assembly 1
37 Clutch lever assembly 1
38 Clutch lever assembly 1
40 Gear housing 1
43
Wireless and wired remote
control
1
44 Pin M4X14 2
46 Power supply cord 1
47 Drive shaft 1
50 Bolt to fix the rope 2
No. Name Quantity
51 Drum 1
52 STEEL/SYNTHETIC rope 1
53 Mounting screws 4
54 Mounting nuts 4
55
Mounting screws for the cable
guide
56
Assembly kit for the box over
the motor
57
Assembly kit for the box over
the motor
58 Rope guide (roller / sliding)
59
Śruby montażowe
prowadnicy liny
2
60
Zestaw montażowy skrzynki
nad silnikiem
1
61
Zestaw montażowy skrzynki
nad silnikiem
1
62
Prowadnica liny (rolkowa/
ślizgowa)
1
