Kangaroowinch 2000 - Page 35

kangaroowinch.eu
15
No. Name Quantity
1 Motor 1
2 M4x8 conical screw 2
3 Spring washer 2
4 Allen screw M8x25 4
5 Spring washer 2
6 Spring washer 4
7 Box with relay 1
8
Bracket to mount the box
with the relay
1
9
Bracket to mount the box
with the relay
1
10 4x16 screw 4
11 Motor mounting flange 1
12 Oil seal ring 2
13 Plain bearing 2
14 Brake assembly 1
No. Name Quantity
15 Tie rod 2
16 Allen screw M4x16 10
17 Drive shaft 1
18 Gear box mounting flange 1
19 Gasket 1
20 Ring gear 1
21 ThiThird stage planetary gear 1
22 Small spacer ring 1
23 Large spacer ring 1
24 O-ring 1
25 Clutch lever 1
26 The base of the clutch lever 1
27 Allen screw M4x16 1
28 Clutch spring 1
29 Clutch pin 1
No. Name Quantity
30 O-ring 1
31 M6x10 screw 1
32 M5x16 screw 8
33 Spring washer 8
34 Gear housing 1
35 Bearing 1
36 FirstFirst stage sun gear 1
37
FirstFirst stage planetary
gear
1
38
SecondSecond stage plane-
tary gear
1
39 Clutch ring 1
40 Power supply cord 2
41 Wireless remote control 1
42 Hook-up strap 1
43 Spring washer 4
No. Name Quantity
44 M10x25 screw 4
45 Washer 4
46 M10 nut 4
47
Fork-head hook with safety
catch
1
48 Drum 1
49 Washer 2
50 Spring washer 2
51 Roller/slide cable guide 1
52 Nut 2
53 M12x25 screw 2
54 STEEL/SYNTHETIC rope 1
55 Wired remote control 1
530
254
160
220
114 160
114
224
190
4-M10
530
254
160
220
114 160
114
224
190
4-M10

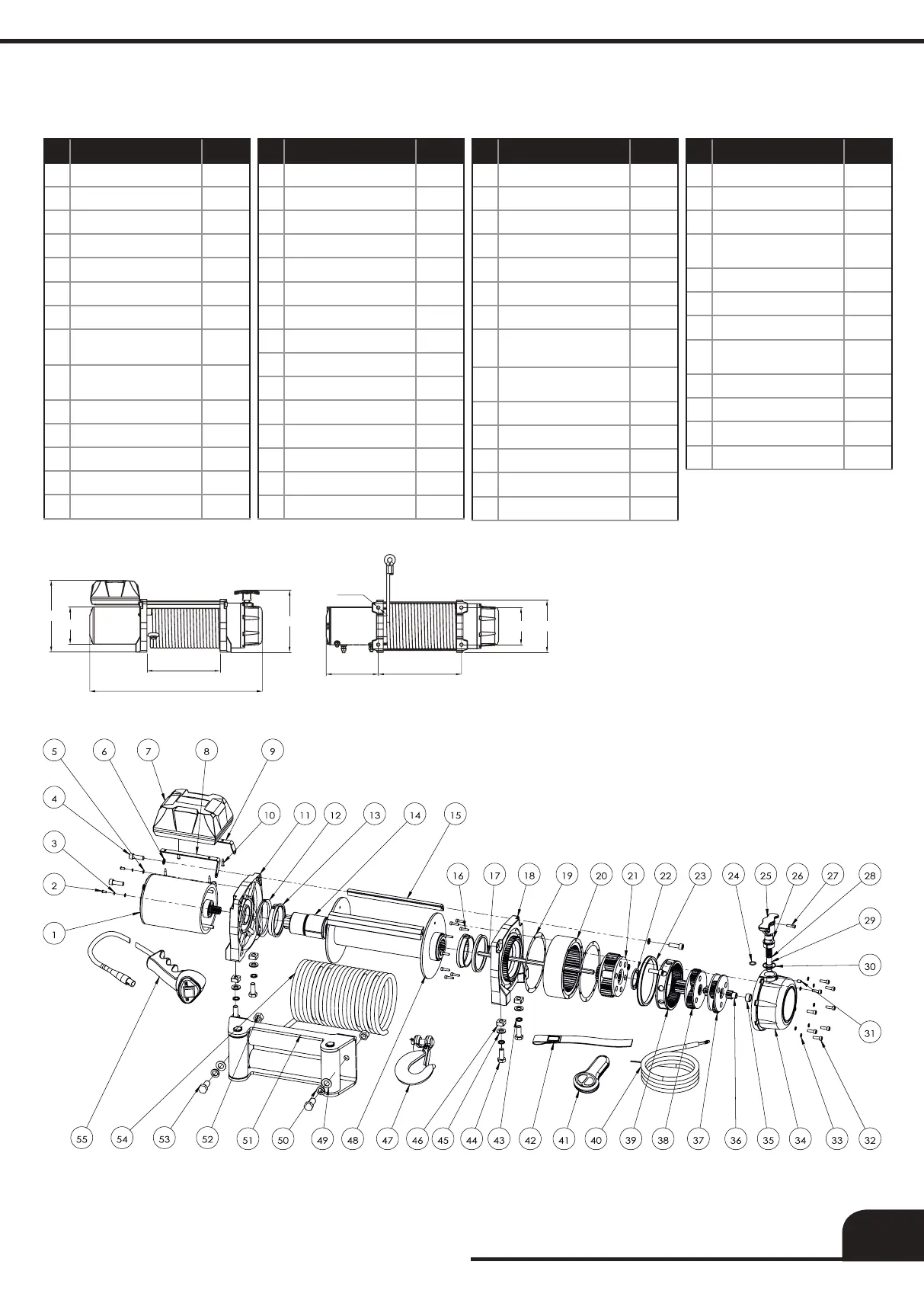

TECHNICAL DRAWINGS AND DIAGRAMS - 12000PS
REPLACEMENT PARTS LIST - 12000PS
