Kangaroowinch 2000 - Page 34

No. Name Quantity
1 M6X25 bottom tie rod screw 2
2 M6X20 top tie rod screw 4
3 Motor 1
4 Motor mounting flange 1
5 Top tie rods 2
6 Drive shaft 1
7 Transmission lid 1
8 O-ring 1
9
ThirdThird stage planetary
gear
1
10 O-ring 1
No. Name Quantity
11 Ring gear 1
12 Spacer ring 1
13
SecondSecond stage plane-
tary gear
1
14 FirstFirst stage planetary gear 1
15 Bearing 1
16 Gear housing 1
17 Clutch lever washer 3
18 The base of the clutch lever 1
19 Pins of the clutch lever 3
20 Cover for the clutch lever base 1
No. Name Quantity
21 M4X10 screw 3
22 Screw with washer M4X8 1
23 Clutch lever 1
24 Spring 6
25 Bottom tie rod 1
26 Drum 1
27 Plain bearing 2
28 Oil seal ring 2
29 Brake assembly 1
30 STEEL/SYNTHETIC rope 1
31
Fork-head hook with safety
catch
1
32 Hook-up strap 1
No. Name Quantity
35 M8X20 screw 2
36 Rope guide (roller / sliding) 1
37 Washer 6
38 Spring washer 6
39 M8 nut 2
40 Mounting plate 1
41 M8X25 screw 4
43 Relay 1
44 Wired remote control 1
45 Relay and motor cover 1

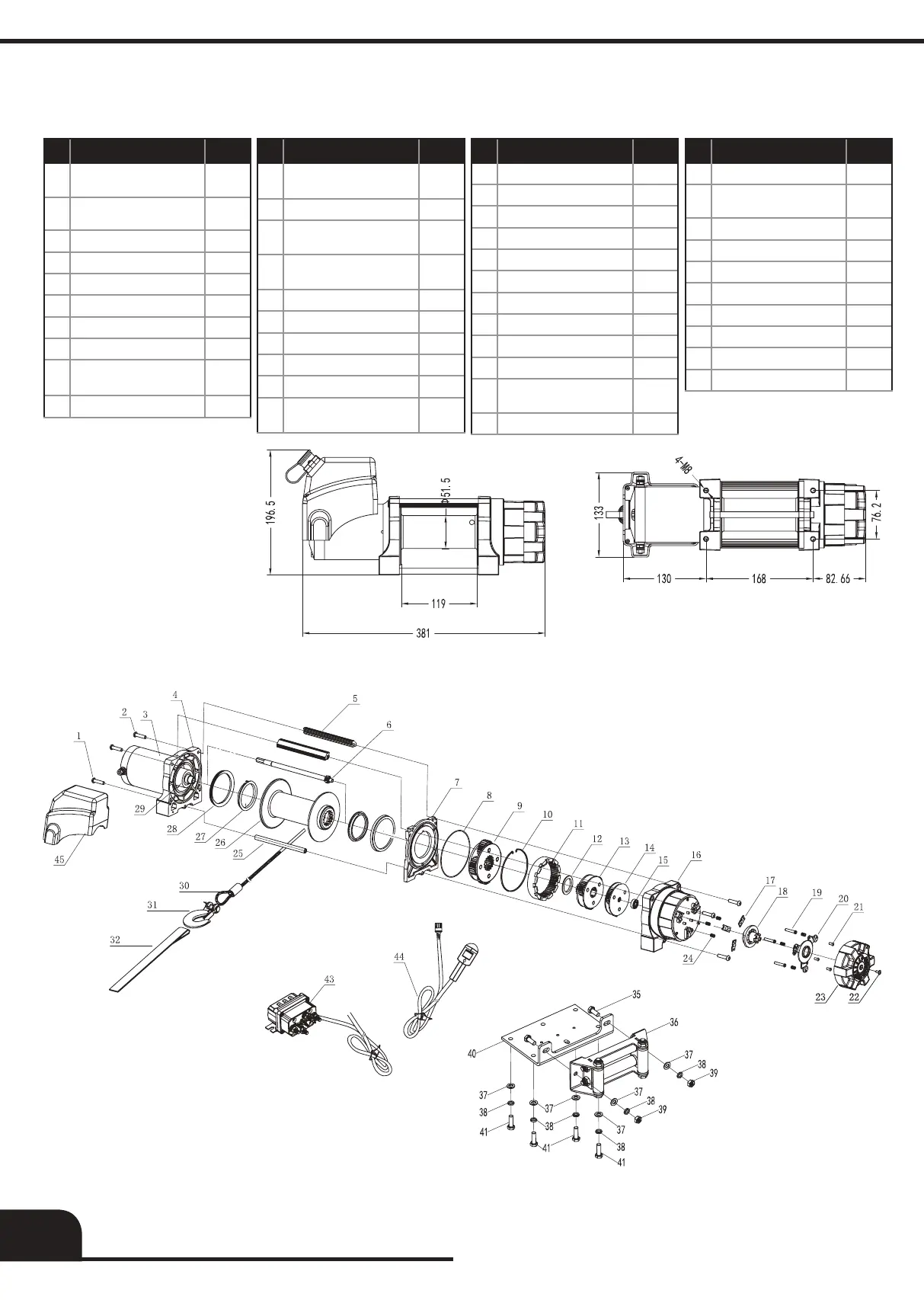

TECHNICAL DRAWINGS AND DIAGRAMS - 6000
