Kangaroowinch 2000 - Page 33

13
No. Name Quantity
1 Motor assembly 1
2 Stage of planetary gear 1
3 Internal gear disc 1
4 Transmission lid 1
5 M4x12 gearbox lid screws 4
6 Graphite-nylon flange 1
7 Drive shaft 1
8 Flexible 3x11 pin 1
9 Spline shaft 1
10 Spring 1
11 Drum 1
12 M5 rope bolt 1
No. Name Quantity
13 Drum bearing 1
14 Flanged M5 nut 2
15 Rope clamp 1
16 Winch base 1
17 Clutch lever 1
18 M5x10 conical screw 2
19 Allen screw M6x16 2
20 Steel rope 1
21 Roller guide 1
22 The remote control 1
23 Fork-head hook with safety catch 1
24 Hook-up strap 1

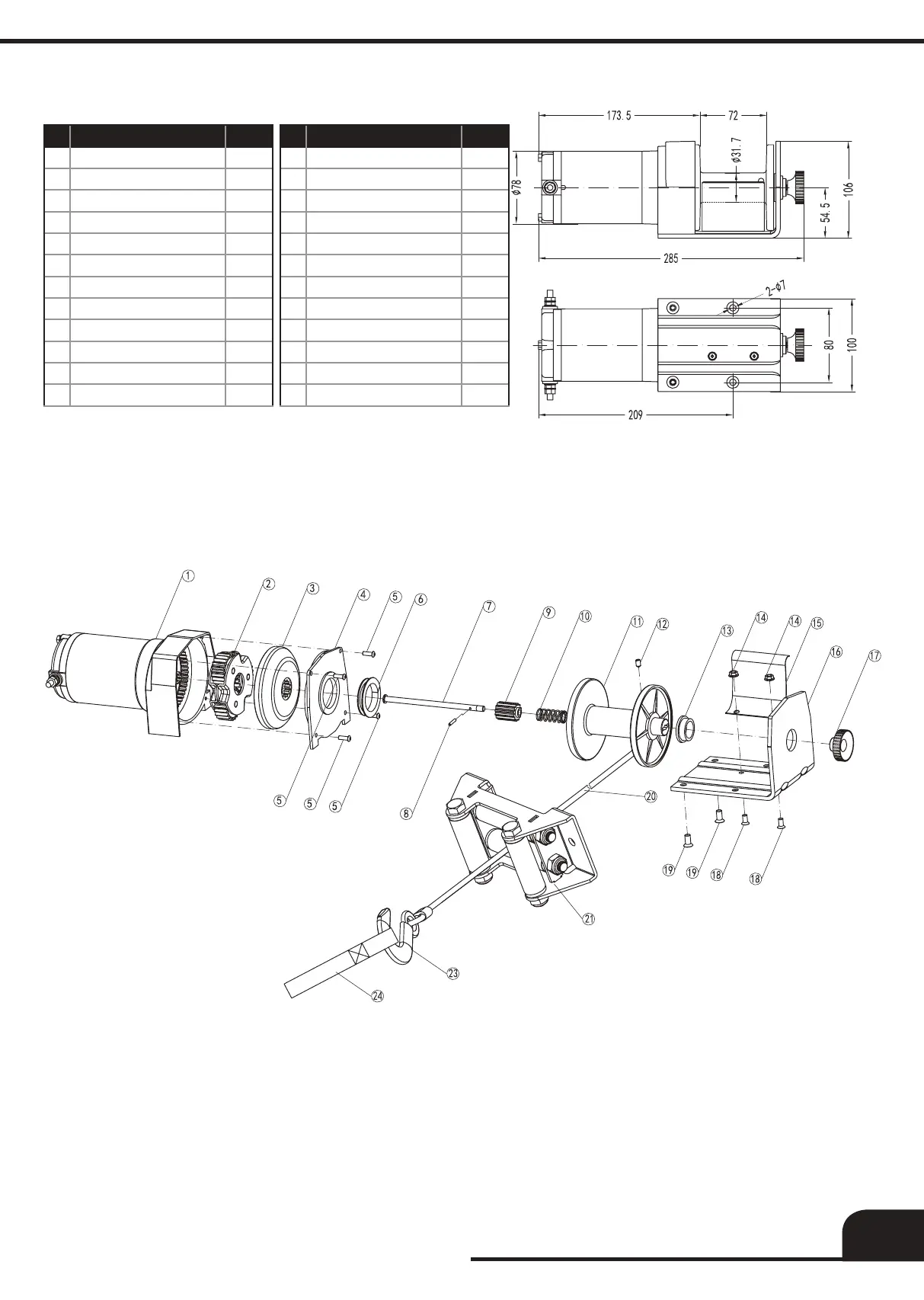

TECHNICAL DRAWINGS AND DIAGRAMS - 2000
REPLACEMENT PARTS LIST - 2000
