INITIAL INSTALLATION MANUAL
AF INTEGRA / AF-H INTEGRA
PAGE: 1
JUN 01/2011
1. Introduction
The instructions in this manual provide the information necessary for the initial
installation of AF INTEGRA / AF-H INTEGRA ELT system.
2. KANNAD INTEGRA System Presentation
A. System overview
NOTE: for details of approved part number of AF INTEGRA / AF-H INTEGRA
system, Refer to Section 12. Compatibility list for INTEGRA ELTs System,
page 53.
AF INTEGRA / AF-H INTEGRA system is composed of:
1. a transmitter;
2. a mounting bracket;
3. a remote control panel (RCP)
(see note 1 page 2)
;
4. a DIN-12 connector or programming dongle to connect the RCP;
5. an approved external whip, rod or blade antenna.

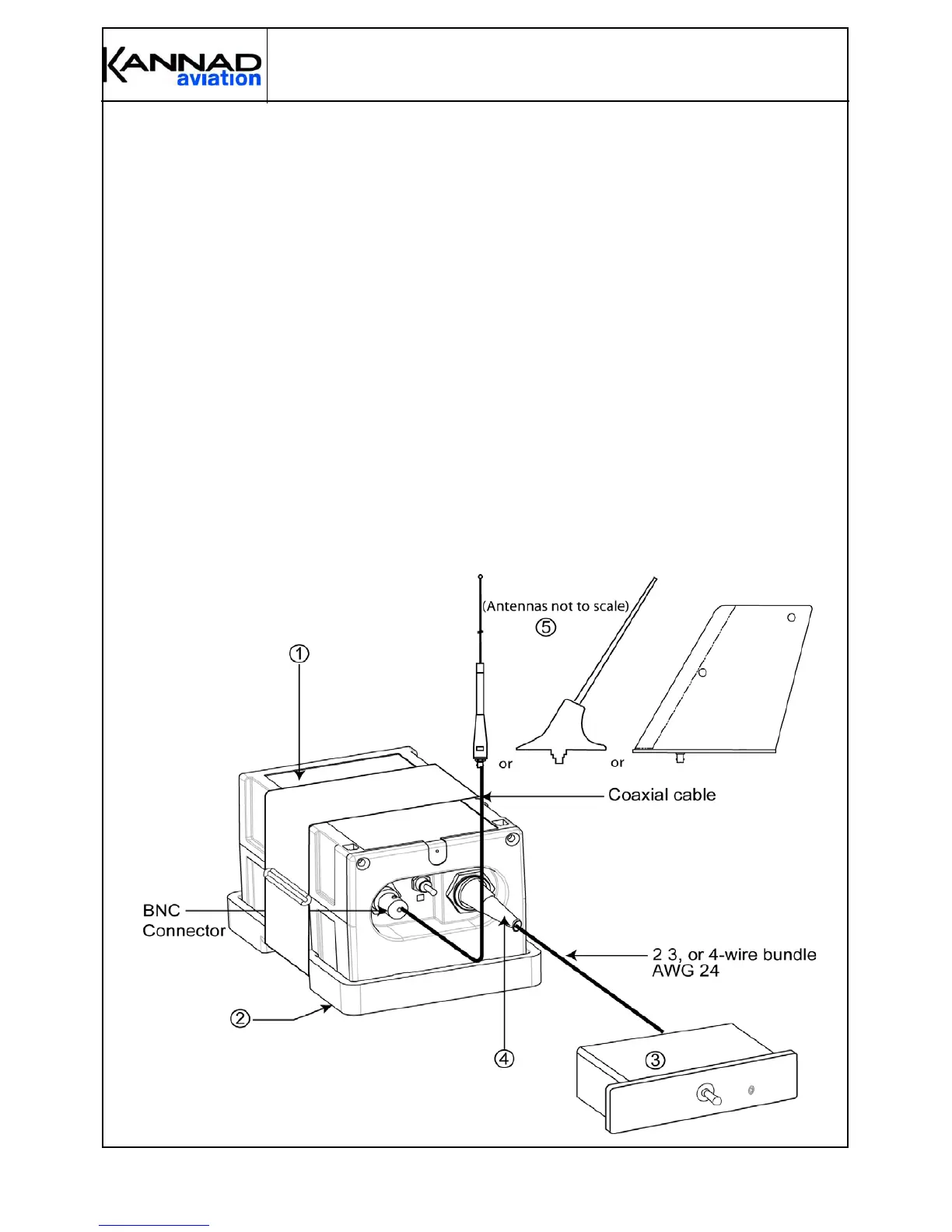

Figure 1: ELT system description
