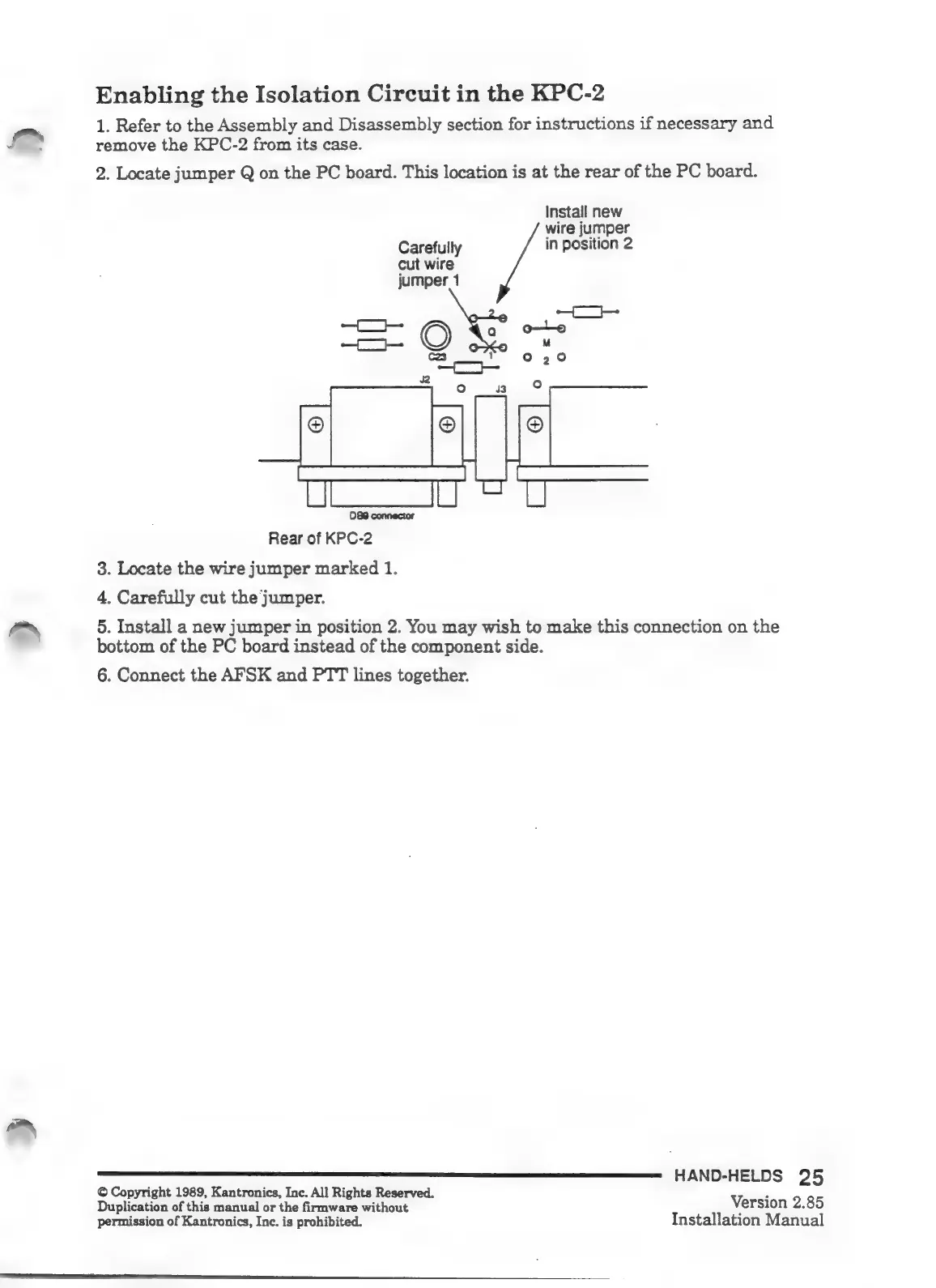

Enabling
the
Isolation
Circuit
in
the
KPC-2
1.
Refer
to
the
Assembly
and
Disassembly
section
for
instructions
if
necessary
and
remove
the
KPC-2
from
its
case.
2.
Locate
jumper
Q
on
the
PC
board.
This
location
is
at
the
rear
of
the
PC
board.
Install
new
wire
jumper
Carefully
in
position
2
cut
wire
jumper
1
en
E
Gg
0
mo
مهلو󰾯
مل󰾯
M
c23
1
0
2
0
J2
Rear
of
KPC-2
3.
Locate
the
wire
jumper
marked
1.
4.
Carefully
cut
the
jumper.
5.
Install
a
new
jumper
in
position
2.
You
may
wish
to
make
this
connection
on
the
bottom
of
the
PC
board
instead
of
the
component
side.
6.
Connect
the
AFSK
and
PTT
lines
together.
———————
HAND-HELDS
25
©
Copyright
1989,
Kantronics,
Inc.
All
Rights
Reserved.
5
Duplication
of
this
manual
or
the
firmware
without
Version
2.85
permission
of
Kantronics,
Inc.
is
prohibited.
Installation
Manual
