Kärcher 1.575-617.0 User Manual

9.800-103.0 - M • Karcher HDS 615-617
OPERATOR’S MANUAL
PRESSURE WASHER
28

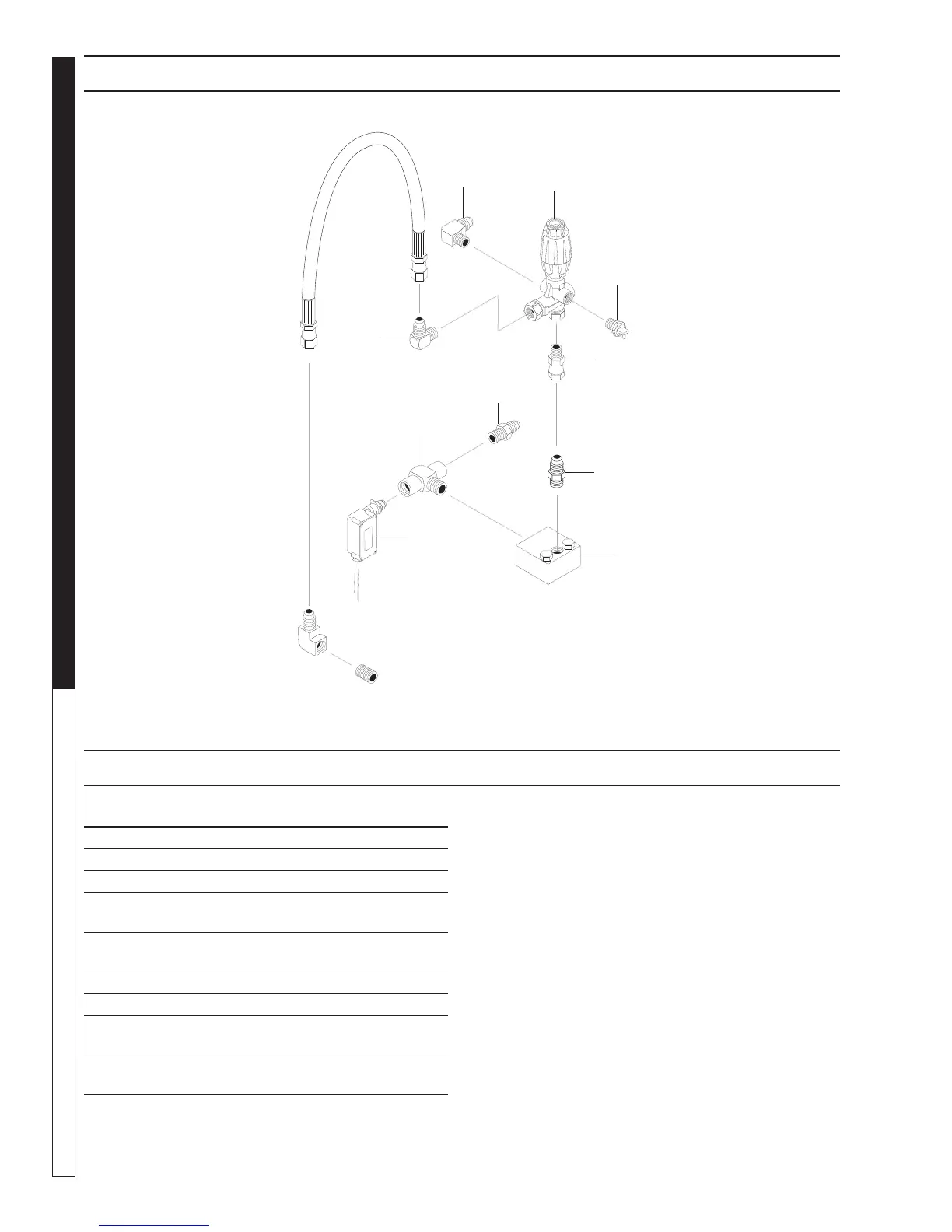

UNLOADER ASSEMBLY
98001030-2
UNLOADER PARTS LIST
ITEM PART NO. DESCRIPTION QTY
1 9.803-552.0 Tee, 3/8" Male, Branch 1
2 9.802-036.0 Nipple, 1/2" JIC, 3/8" Pipe 2
3 9.802-039.0 Elbow, 1/2" JIC, 3/8", 90° 1
4 9.802-870.0 Block, Unloader, 3/8" x 3/8"
1.25 Steel 1
5 9.802-048.0 Swivel, 1/2" JIC Female,
3/8" Male 1
6 9.802-129.0 Elbow, 1/2" JIC x 3/8", 90° 1
7 8.707-254.0 Pump Protector, 3/8" PTP 1
8 8.750-299.0 Unloader, VRT 3,
8 GPM@ 4500 PSI 1
9 8.716-125.0 Switch, Pressure N/O,
3/8" NPT SS 1
9
4
1
2
5
3
7
8
6
2

Kärcher 1.575-617.0 Specifications

General

Category	Pressure Washer
Max Pressure	110 bar
Flow Rate	360 l/h
Power source	Electric
Maximum flow rate	360 l/h
Maximum pressure	110 bar
Water temperature (max)	40 °C
Voltage	220-240 V
Frequency	50 Hz
Model	1.575-617.0
