9. TECHNICAL DATA
Power Connection
Voltage ................................................................... 230-240 V (AC)
Current ........................................................................ 1~50 Hz
Connected/Load............................................................. 2.5 KW
Mains Fuse ..................................................................... 13 AMP
Water Connection
Supply Temperature (Max) ............................................. 40 °C
Supply Rate (Min) ......................................................... 600 Litres per Hour
Supply Pressure (Max) ..................................................... 6 bar
Supply Hose Length....................................................... 7.5 metres
Diameter ................................................... 1/2 inch
Suction Height from open tank
at Water Temperature 20 °C............................................. 1 metre
Performance Data
Max. Pressure ............................................................... 140 bar (at bypass)
Rated Pressure ........................................................ 20-130 bar
Flow Rate ...................................................................... 530 litres per hour
Detergent Intake .......................................................... 0-25 litres per hour
Recoil Force of Spray Gun at Operating Pressure ......... 22 N
Sound Pressure Level – L
PA
(EN60704-1) ...................... 75 dB (A)
Guaranteed Sound Power Level – L
WA
(EN ISO 4871) ... 93 dB(A)
Optimum Working Distance on High Pressure ............... 30 cm
Dimensions
Length ........................................................................... 497 mm
Width ............................................................................. 411 mm
Height............................................................................ 926 mm
Weight ............................................................................. 21 Kg

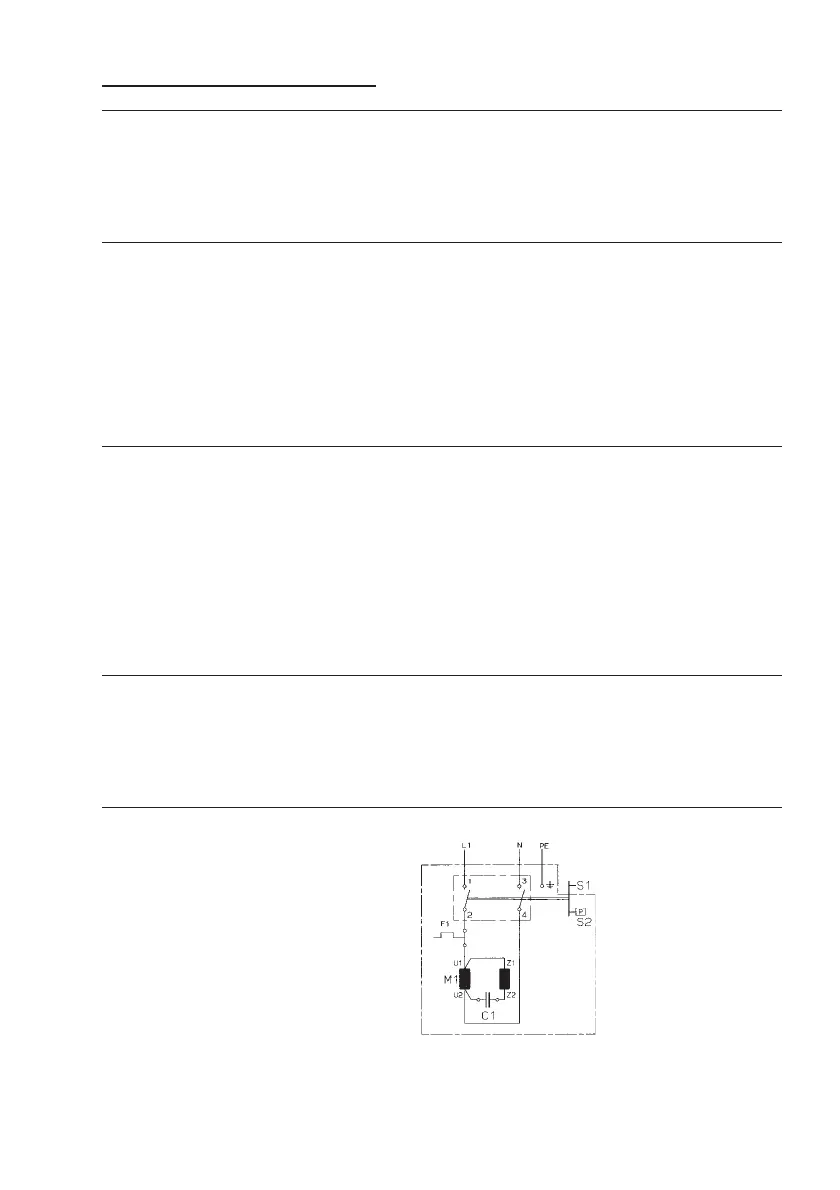

Circuit Diagramm
C1 Running capacitor
F1 Temperature fuse
M1 Motor
S1 Appliance switch
S2 Pressure-operated switch
