Kärcher BV 5/1 - Device Elements; Start Up

6 English

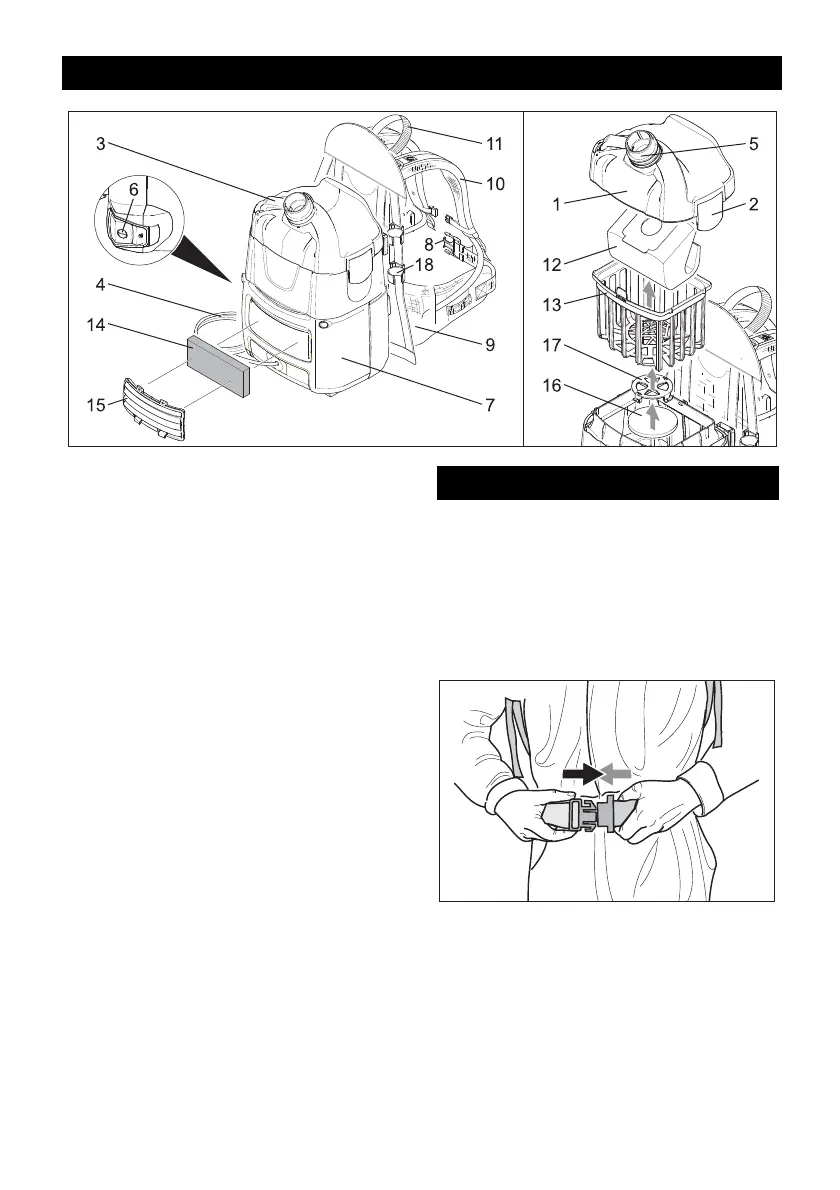

1 Filter cover
2 Filter cover latch
3 Mains cable hook (foldable)
4 Power cord
5 Suction support (exterior)
6 ON/OFF switch
7Casing
8 Hip belt
9 Back cushion
10 Shoulder carrier with middle and end
tensioners
11 Handle
12 Fleece filter bag
13 Main filter basket
14 Exhaust filter
15 Cover
16 Motor filter
17 Grid of the motor proction filter
18 Suction pipe holder
The appliance can be operated in 2 ways:
1 Operation with fleece filter bag or paper
filter bag (option)
2 Operation without filter bag
 Check whether main filter basket has
been inserted into the appliance.
 Put appliance on your back.
 Latch the closure and adjust the hip
belt.
Device elements
Start up
