8English

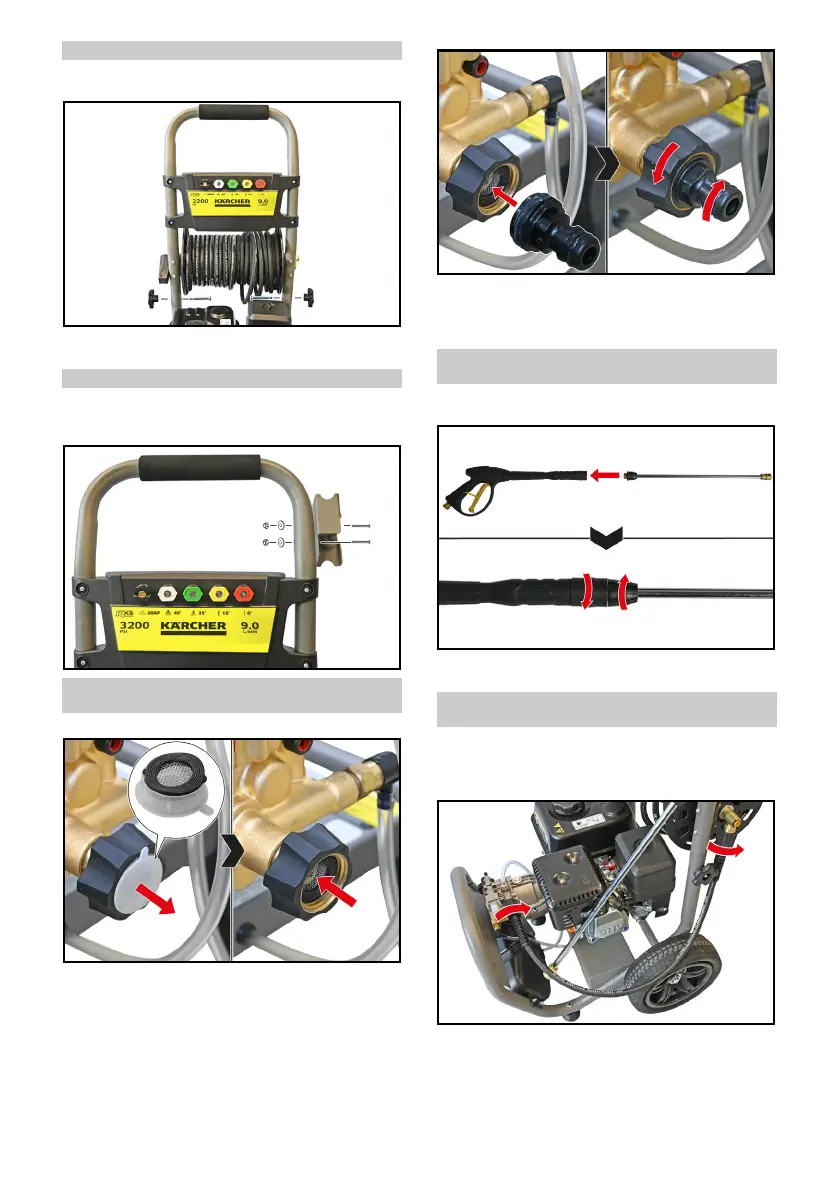

Installing the handle
1. Secure the handle on the device frame with the 2-
thread screws and the star grip nuts.
Note
Removal is performed in the reverse sequence.
Installing the high-pressure gun holder
1. Install the high pressure gun holder on the side of
the handle with the M5x38 screws, washers and
M5 stop nuts.
Installing the coupling plug on the water
spigot
1. Pull the cap out of the union nut on the water spigot.
2. Remove the water sieve from the cap.
3. Carefully fit the water sieve into the union nut on the
water spigot.
4. Screw the coupling plug into the union nut on the
water spigot.
5. Hold the square end of the coupling plug with an
open-end wrench and hand-tighten the union nut.
Note
Removal is performed in the reverse sequence.
Installing the spray lance on the high-
pressure gun
1. Screw the spray lance onto the high-pressure gun
and hand-tighten the union nut.
Note
Removal is performed in the reverse sequence.
Mounting the high-pressure connecting hose
(device with hose reel)
1. Remove the cover on the high-pressure spigot.
2. Plug the high-pressure connecting hose into the
high-pressure spigot and hand-tighten the union
nut.
3. Plug the high-pressure connecting hose into the
connection on the hose reel and hand-tighten the
union nut.
Note
Removal is performed in the reverse sequence.
