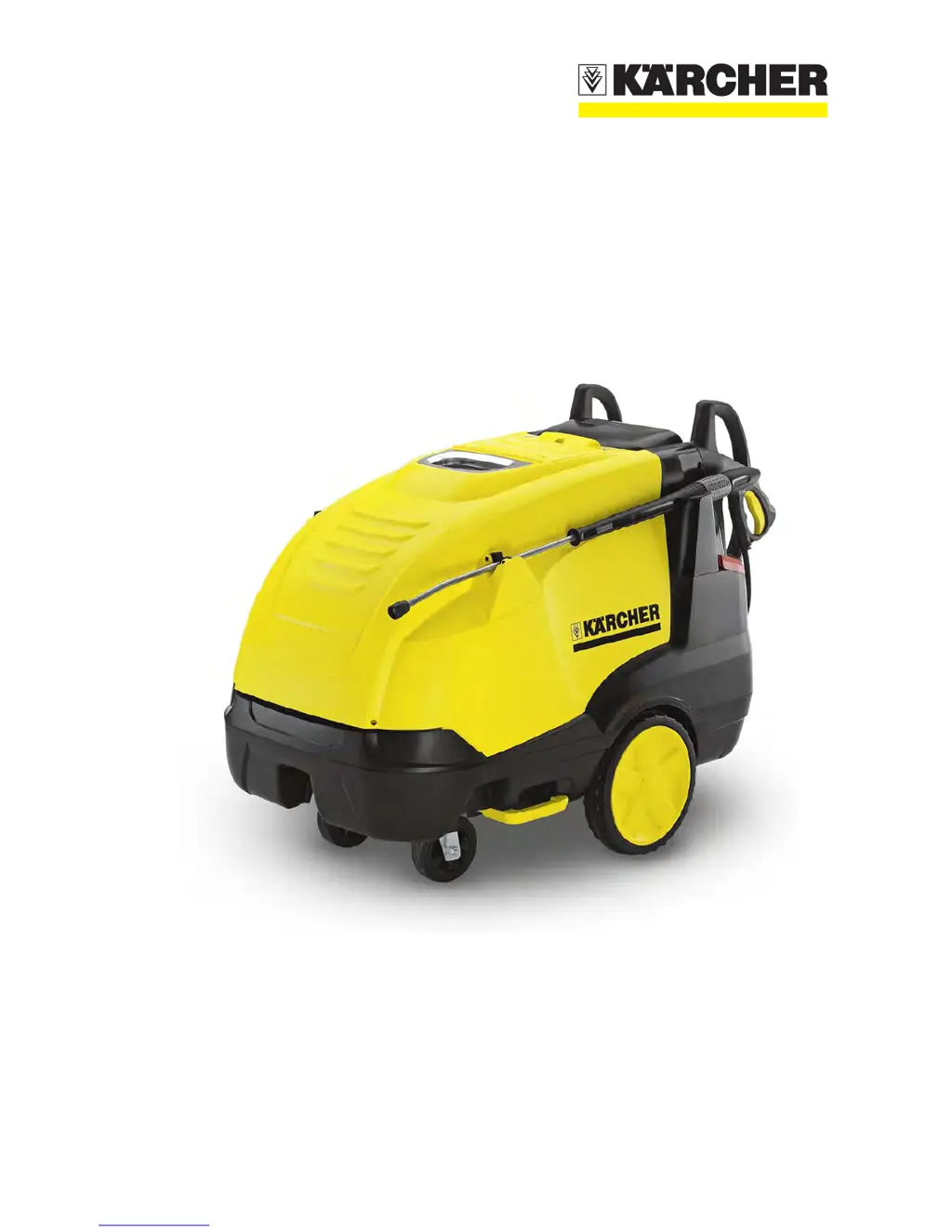

Kärcher HDS 10/20 - User Manual

Questions and Answers

A
amandafowlerAug 14, 2025
Why is the water pressure too low in my Kärcher HDS 10/20 Pressure Washer?
- J
  Jeff RiveraAug 14, 2025
  Low water pressure in your Kärcher Pressure Washer can be due to several factors. You can check and increase the water supply volume, or inspect, clean, or replace the water fine filter. Other potential solutions include venting the unit, checking or replacing the high-pressure nozzle, and inspecting the pressure and suction valves for leaks, replacing them if necessary. Additionally, you may need to check, adjust, or replace the overflow or safety valve.
W
wileyjayAug 17, 2025
What to do if my Kärcher HDS 10/20 is not running (no LED display)?
- A
  Alexander EllisAug 18, 2025
  If your Kärcher Pressure Washer isn't running and the LED display is off, you should check or replace the mains voltage, connection cable, and mains fuse. Also, check the fuse (F1), unit switch, and pressure switch. Further troubleshooting includes checking or replacing the control circuit transformer, thermal fuse, printed circuit board and soft start, and contactor (K1).
R
reginabakerAug 21, 2025
Why is my Kärcher Pressure Washer not heating the water?
- J
  Jessica SanchezAug 21, 2025
  If your Kärcher Pressure Washer is not heating the water, begin by checking and correcting the temperature setting. Ensure an adequate water supply when the low-water protection is switched off, or repair the low-water protection. Also, check and top-up the fuel level in the tank. Other steps include checking or replacing the fuel pump solenoid valve, fuel filter, and fuel nozzle. You might also need to correct the fuel pump setting, check or replace the ignition cable, correct the ignition electrode spacings, repair the burner fan, or correct the air flap setting.
M
Mikayla DyerAug 25, 2025
What to do if there's a pressure drop in my Kärcher HDS 10/20's high-pressure system?
- E
  Emily HardyAug 25, 2025
  If you're experiencing a pressure drop in the high-pressure system of your Kärcher Pressure Washer, check the handgun and O-rings on the high-pressure hose for leaks and replace if necessary. Inspect the non-return valve for leaks and replace the O-rings. Also, check, adjust, or replace the overflow valve, pressure switch, and control piston.
Z
Zachary FloresAug 27, 2025
Why is there insufficient cleaning agent function in my Kärcher HDS 10/20 Pressure Washer?
- S
  scott88Aug 27, 2025
  If you're experiencing insufficient or no cleaning agent function with your Kärcher Pressure Washer, start by checking and correcting the metering valve setting. Ensure the cleaning agent tank is topped up. Additionally, check, clean, or replace the cleaning agent filter. You may also need to check or replace the cleaning agent suction hose, metering valve, and cleaning agent suction at the cylinder head.
L
Lisa SandersAug 31, 2025
What to do if my Kärcher HDS 10/20 pump knocks?
- C
  Colleen CoxAug 31, 2025
  If your Kärcher Pressure Washer pump is knocking, inspect the pump for leaks and remove any you find. Also, try venting the unit.
A
Adam FrenchSep 3, 2025
What does it mean when the motor thermal contact has actuated on my Kärcher Pressure Washer?
- J
  Jamie VazquezSep 3, 2025
  If the motor thermal contact has actuated on your Kärcher Pressure Washer, switch off the unit and allow it to cool. Then, identify and correct the fault before switching the unit back on.
R
Raymond NelsonSep 7, 2025
What to do if there is an oil leak between the cylinder head and piston housing of my Kärcher HDS 10/20 Pressure Washer?
- K
  Karen CabreraSep 7, 2025
  If you notice an oil leak between the cylinder head and piston housing of your Kärcher Pressure Washer, replace the oil seals.
R
Ryan GrantSep 9, 2025
What to do if there is a water leak between the cylinder head and piston housing of my Kärcher HDS 10/20?
- W
  wilsoncourtneySep 10, 2025
  If you observe a water leak between the cylinder head and piston housing of your Kärcher Pressure Washer, check and replace the high-pressure and low-pressure seals.

Summary

Equipment Features

Unit Function

Control Panel and Settings

Explains control panel, displays, error messages, service switch, and related settings.

Key Component Identification

Core Systems Overview

Describes motors, pump, safety block, burner, heater, handgun, and control valves.

Operational Diagrams and Pressure Switches

Schematics of operation and explanation of pressure switch functions.

Basic Settings and Service Procedures

Service Functions (LED & Display)

Guides for using service functions via LED and digital panel displays.

Operational Adjustments and Tests

Unit-Specific Settings and Procedures

Circuit Diagrams

Troubleshooting Guide

Unit Not Running or No Display

Troubleshooting steps for when the unit does not power on or show any display.

Motor Thermal Protection Issues

Water Pressure and Heating Problems

Diagnosing and resolving low water pressure and water not heating issues.

Cleaning Agent and High Pressure Issues

Technical Specifications

Kärcher HDS 10/20 Specifications

General

Water flow rate	500-1000 l/h
Max. water feed temperature	80°C
Power rating	7.8 kW
Fuel tank capacity	25 l
Dimensions (L x W x H)	1330 x 750 x 1060 mm
Fuel oil consumption	6.4 kg/h
Voltage	400 V
Frequency	50 Hz
Hose length	10 m
Operating pressure	30-200 bar
