English 9
1 Transport wheel
2 Storage for spray lance
3 Storage / parking position for high-
pressure gun
4 Power Control spray lance dirt
blaster for stubborn dirt, pressure
level: HARD
5 Vario Power Control spray lance for
the most common cleaning tasks,
pressure levels: HARD / MEDIUM /
SOFT / MIX
6 Power Control high-pressure gun
7 Button for separating the high-pres-
sure hose from the high-pressure
gun
8 High-pressure gun trigger
9 Pressure indicator (MIX / 1-SOFT /
2-MEDIUM / 3-HARD)
10 High-pressure gun safety lock
11 Power switch (“0/OFF” / “I/ON”)
12 Power-supply cord with GFCI plug
13 Storage hook for power cord
14 Carrying handle
15 Transport handle, telescoping
16 Quick coupling for high-pressure
hose
17 Type plate
18 High-pressure hose
19 Detergent suction hose with deter-
gent filter and lid
20 Detergent tank
21 Water connection with integrated
sieve
22 Water connection coupling
23 Garden hose connector
24 **Garden hose
– Fabric reinforced
– Diameter of at least 1/2 inch
(13 mm)
– Length at least 7.5 m
25 Washing brush
26 Foam nozzle for powerful detergent
foam
27 Detergent container
** additionally required
Safety devices
몇 CAUTION
Missing or modified safety devices
Safety devices are provided for your
own protection.
Never modify or bypass safety devices.
Power switch
The power switch stops you from oper-
ating the device unintentionally.
High-pressure gun safety lock
The safety lock blocks the trigger of the
high-pressure gun and prevents the
device from starting unintentionally.
This safety feature DOES NOT lock
spray in the ON position.
Auto-stop function
If the trigger of the high-pressure gun is
released, the pressure switch turns off
the pump and the high-pressure jet
stops. If the trigger is pressed, the
pump switches on again.
Assembly
Before initial startup, mount the loose
enclosed parts on the device.

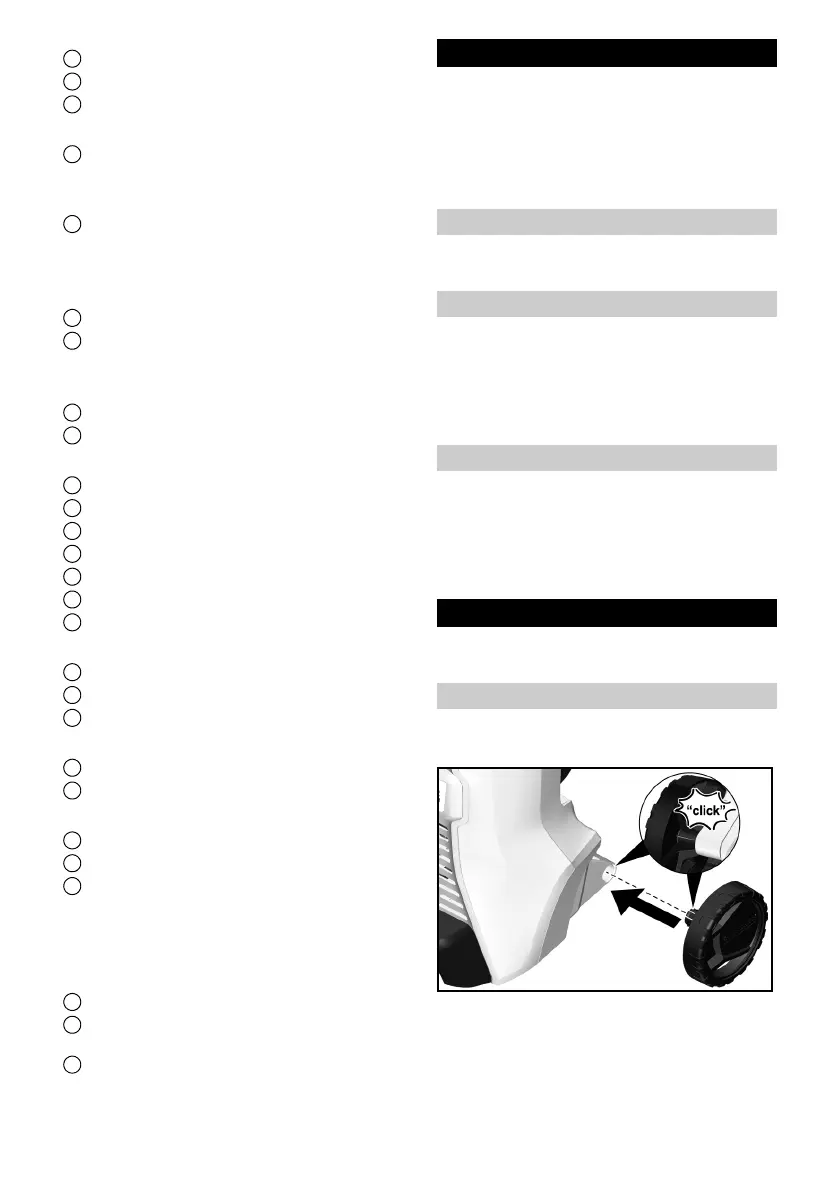

Mounting the wheels
1. Attach and secure the wheels to the
device.
