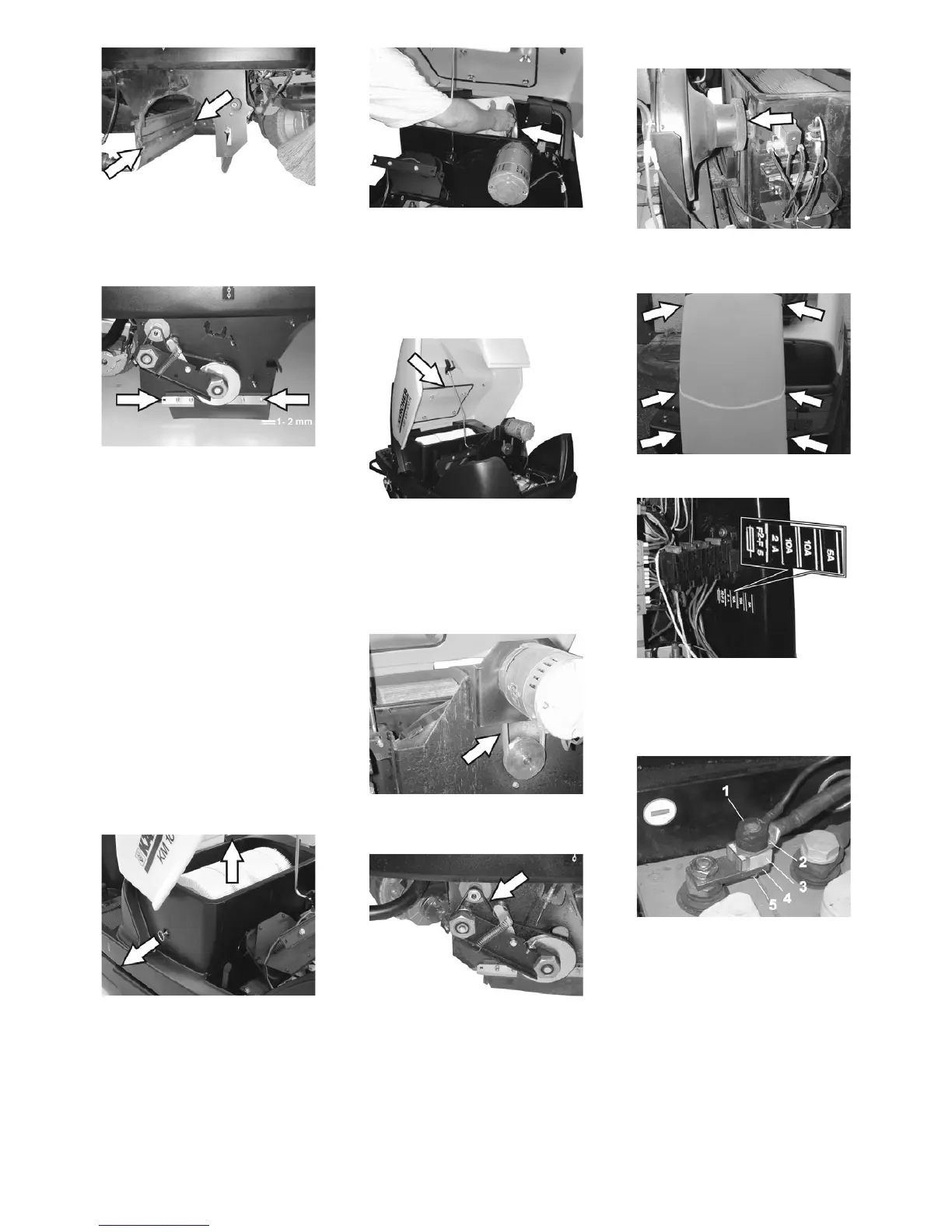

- 10
Î Unscrew retaining nuts for rear sealing
strip.
Î Screw on new sealing strip.
Side sealing strips
Î Slightly loosen retaining nuts for the
side sealing strip (to replace, unscrew).
Î Screw on new sealing strip without fully
tightening the nuts.
Î To set the floor clearance, insert a
sheet with a thickness of between 1 and
2 mm under the sealing strip.
Î Adjust sealing strip.
Î Tighten nuts.
Î Screw on side panels.
Î Push in the waste containers on both
the sides and lock them.
몇 Warning
Empty waste container before replacing
dust filter. Wear a dust mask when working
around the dust filter. Observe safety regu-
lations on the handling of fine particulate
material.
Î Turn main key to "0" and remove it.
Î Press emergency-stop button.
Î Open the hood, insert retaining rod.
Î Pull out the filter holder to the maximum
possible extent and lock.
Î Remove the lamella filter.
Î Insert new filter.
Î Make sure driver engages with holes on
drive side.
Î Lock the handle of the filter cleaner
back into place.
Note: Make sure when installing the new
filter that the fins are not damaged.
Î Lift filter case seal out of groove in the
cover.
Î Insert new seal.
Î Turn main key to "0" and remove it.
Î Press emergency-stop button.
Î Open the hood, insert retaining rod.
Î Check tension of drive belt and V-belt of
the suction blower, also check for wear
or damage.
Î Check tension, wear and damages on
the V-belt of the sweep roller drive.
Î Chek the cup seal at the suction blower
regularly to see that it sits properly.
Î Loosen screws on both sides of the
panel.
Î Replace defective fuses.
Î Replace front panel.
Note: Only use fuses with identical safety
ratings.
1Nut
2 Battery charging cable
3Pole fuse
4 Jumper
5Screw
Î Replace defective fuse.
Note:A defective pole fuse may only be re-
placed by a Kärcher service technician or
an authorised expert.
Replacing dust filter
Replacing filter case seal
Checking drive belt
Check cup seal
Replacing fuses
Pole fuse
26 EN
