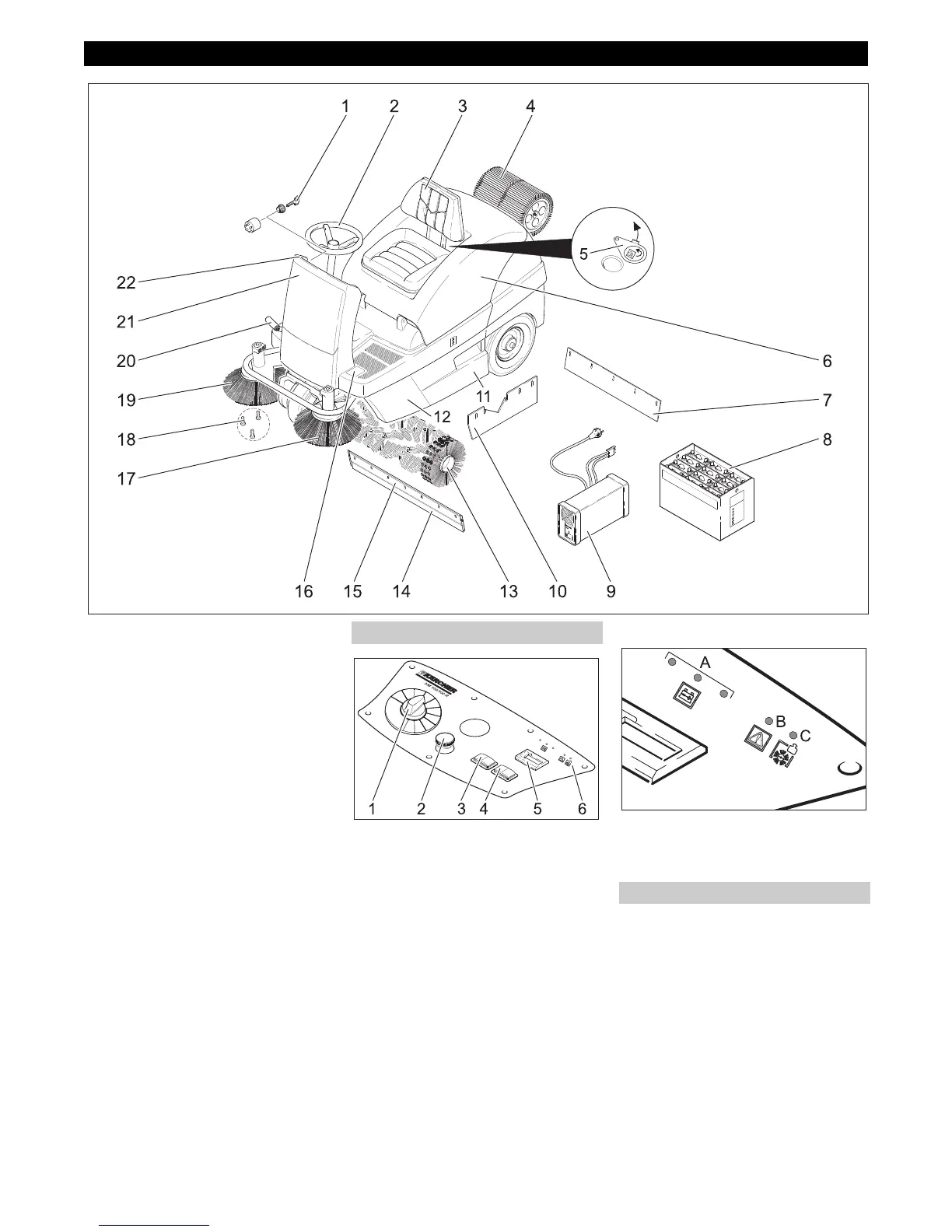

- 3
1 Key switch
2 Steering wheel
3 Seat (with seat contact switch)
4 Dust filter
5 Wet/dry flap
6 Cover
7 Rear sealing strip
8 Battery
(KM 100/100 R Bp Pack)
9 Charger (under the appliance hood)
(KM 100/100 R Bp Pack)
10 Side sealing strip
11 Waste container (both sides)
12 Side panels
13 Roller brush
14 Front sealing strip
15 Bulk waste flap
16 Pedal for raising/lowering bulk waste flap
17 Left side brush (optional)
18 Fastener of the side brush
19 Right side brush
20 Drive pedal
21 Front panel
22 Operator console
1 Programme switch
2 Emergency-stop button
3 Filter dedusting
4Horn
5 Operating hour counter
6 Indicator lamps
A Battery charge status (red/yellow/
green)
B Overlaod of the drive motor (red)
C Overlaod of the sweep roller (red)
The operating elements for the cleaning
process are yellow.
The controls for the maintenance and
service are light gray.
Operating and Functional Elements
Operator console
Indicator lamps
Colour coding
