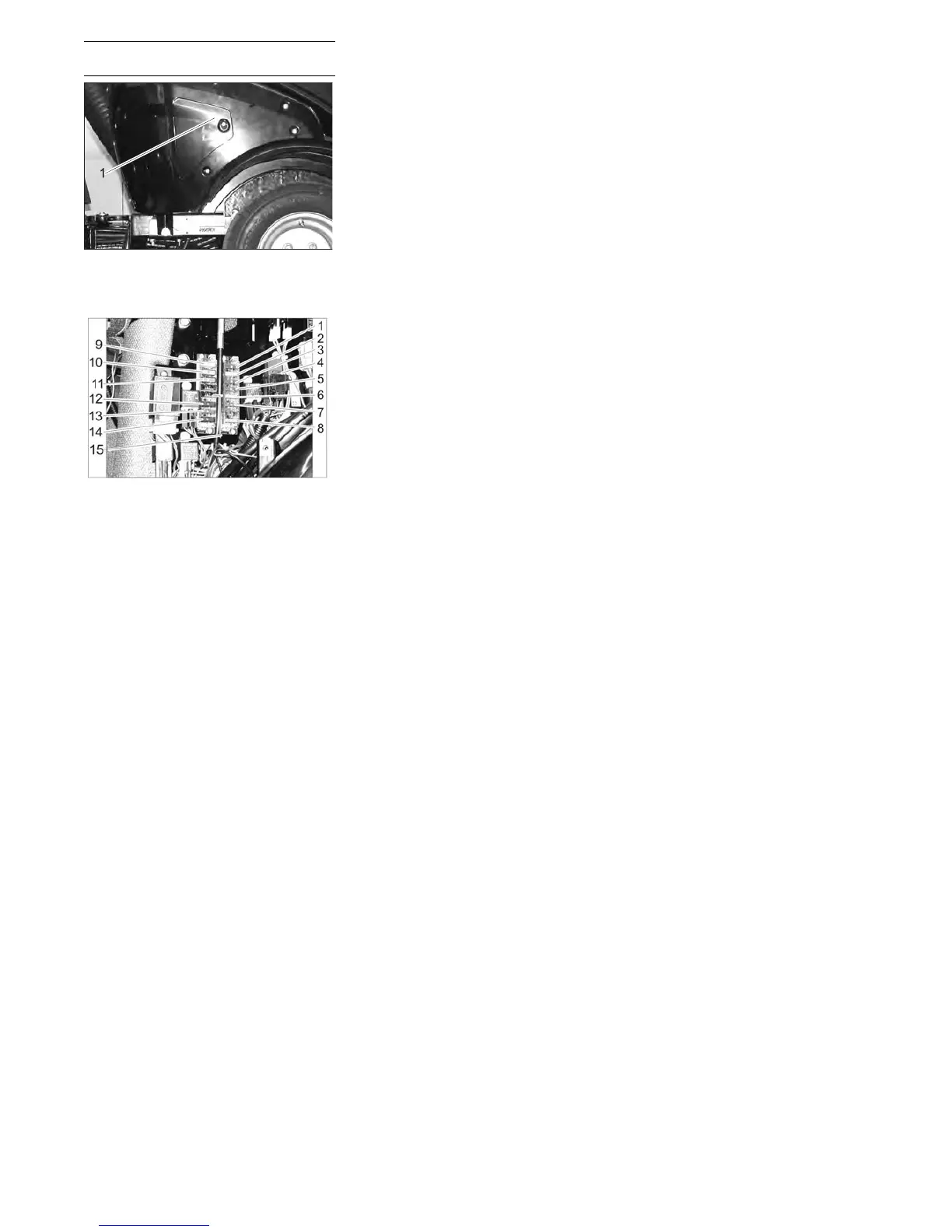

1 Cover
Remove the lid.
1 Fuse 10 A
Indicator lamps, cooling water tempera-
ture buzzer, fuel pump, reverse horn, 7-
way socket outlet front, 2-way socket
outlet front, motor shutoff valve timer,
motor shutoff valve (holding current)
2 Fuse 20 A
2-pin socket front, 7-pin socket front, 2-
pin socket rear, front light
3 Fuse 10 A
Driving direction valve, generator,
4 Fuse 7.5 A
Air-conditioner
5 Fuse 10 A
Onboard socket panel, 7-pin socket
front
6 Fuse 30 A
Motor shutoff valve (inrush current)
7 Fuse 10 A
Hourmeter for sweeping operation,
PTO Stop, indicator lamp brake
8 Fuse 40 A
Main fuse
9 Fuse 20 A
Dipped beam
10 Fuse 20 A
Air-conditioner
11 Fuse 30 A
Cabin
12 Fuse 10 A
Rotating beacon, horn, light relay, 7-
way socket outlet front (pin 1)
13 Fuse 10 A
Blinker, hazard warning system
14 Fuse 10 A
Air-conditioner
15 Fuse 15 A
Comfort seat
Replacing the fuses in the fuse box of
the motor compartment
29EN
