Kärcher NT 27/1 Service Manual

10 English 5.906-472.0 Rev. 00 (08/08)
Î The suction turbine (6) can be removed for cleaning or replace-
ment.
Note

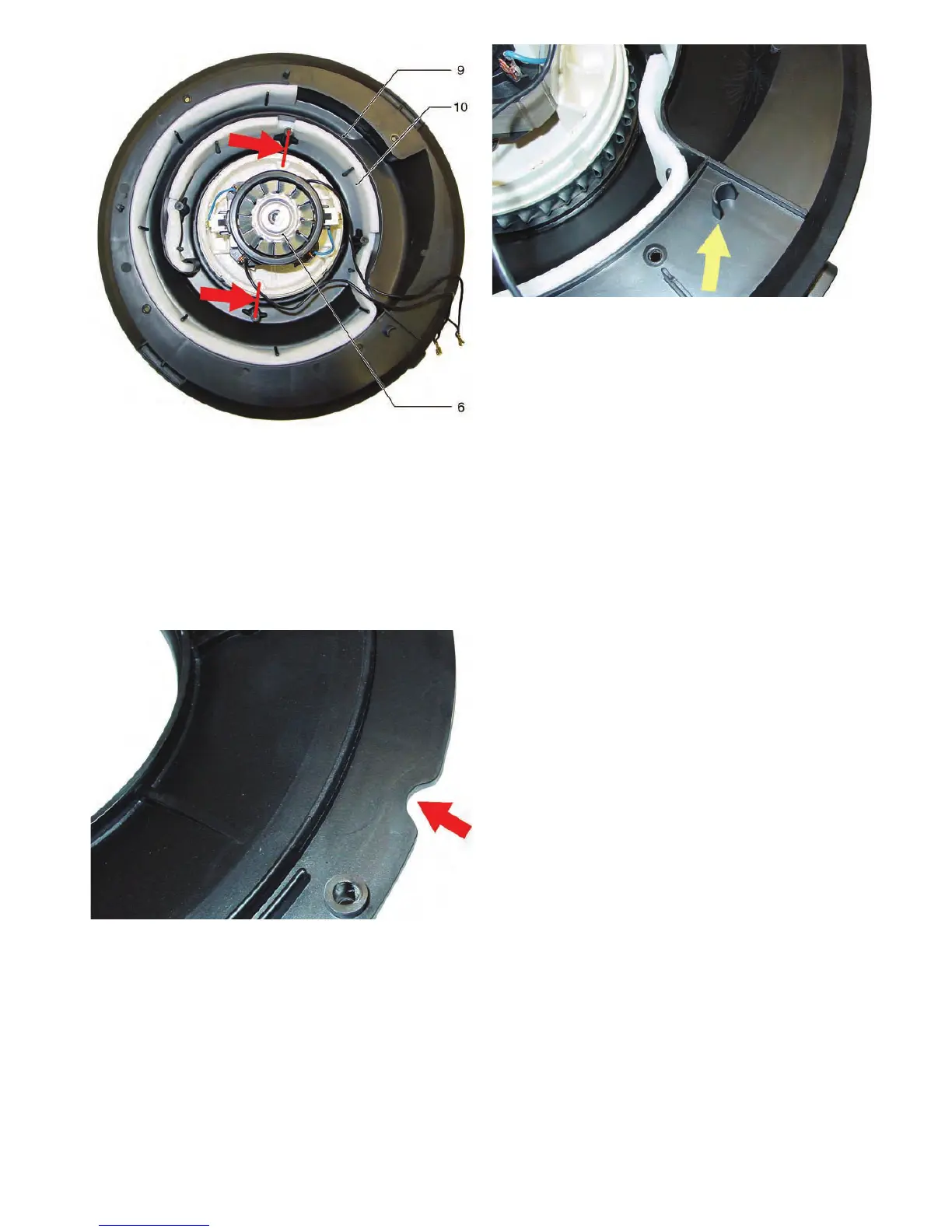

When installing the suction turbine, watch for correct placement.
The protrusions on the suction turbine must be aligned with the
screw heads (see arrows).
Observe the following when installing the suction channel
cover (7):
The suction channel cover (7) has a semi-circular recess on its
edge.
There is a semi-circular stop in the suction turbine casing.
Î Place the suction channel cover (7) on the suction turbine cas-
ing, so that the semi-circular stop of the suction turbine casing
rests in the semi-circular recess of the suction channel cover
(7).
1 Insulation
2 Connecting cable, suction turbine (M1)
3 Appliance switch (S1)
4 Bracket
5Cover
6 Suction turbine (M1)
7 Suction channel cover
8 Fastening screws (4x), suction channel cover
9 Suction channel
10 Insulation

Kärcher NT 27/1 Specifications

General

AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Maximum input power	1380 W
Annual energy consumption	- kWh
Type	Drum vacuum
Hose length	2.5 m
Cleaning type	Dry&wet
Dust capacity	27 L
Flexible hose	Yes
Product color	Black, Grey, Yellow
Tube material	Metal
Container material	Plastic
Dust container type	Bagless
Airflow	67 l/s
Proper use	Professional
Noise level	72 dB
Cable length	7.5 m
Vacuum air filtering	-
Handles quantity	1
Standard nominal width	35 mm

Weight and Dimensions

Width	420 mm
Height	525 mm
Weight	7500 g
