Kärcher NT 27/1 Service Manual

6 English 5.906-472.0 Rev. 00 (08/08)

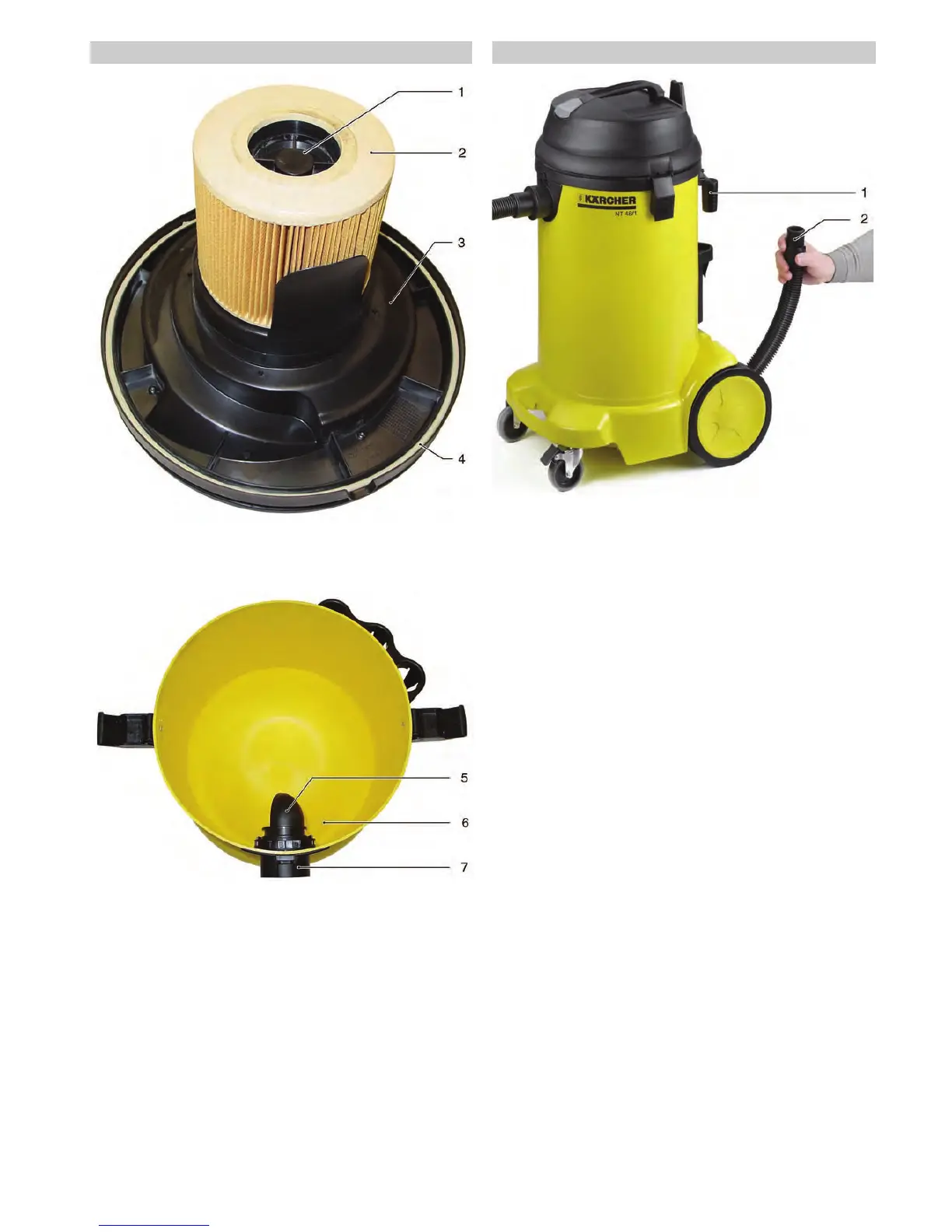

Î Open the locks on the suction head and remove the suction
head (3) from the dirt container (6).
1 Fastening nut, cartridge filter
2 Cartridge filter
3 Suction head
4 Seal
5 Suction air guide
6 Dirt receptacle
7 Suction hose connection
The NT 48/1 is equipped with a dirt water drain hose (2). The dirt
water can be drained from the dirt container into a drain chute via
this dirt water drain hose.
Î Pull the dirt water drain hose (2) off of the intake (1) and place
it into a drain chute.
Î Let the dirt water drain completely.
Î After emptying, reinsert the dirt water drain hose (2) into the in-
take (1).
1 Intake for dirt water drain hose
2 Dirt water drain hose
4.3 Suction head removed 4.4 Dirt water drain hose on the NT 48/1

Kärcher NT 27/1 Specifications

General

AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Maximum input power	1380 W
Annual energy consumption	- kWh
Type	Drum vacuum
Hose length	2.5 m
Cleaning type	Dry&wet
Dust capacity	27 L
Flexible hose	Yes
Product color	Black, Grey, Yellow
Tube material	Metal
Container material	Plastic
Dust container type	Bagless
Airflow	67 l/s
Proper use	Professional
Noise level	72 dB
Cable length	7.5 m
Vacuum air filtering	-
Handles quantity	1
Standard nominal width	35 mm

Weight and Dimensions

Width	420 mm
Height	525 mm
Weight	7500 g
