New Unit Information 05.2007
Puzzi 8/1 C Unit functions
Page 5 / 29

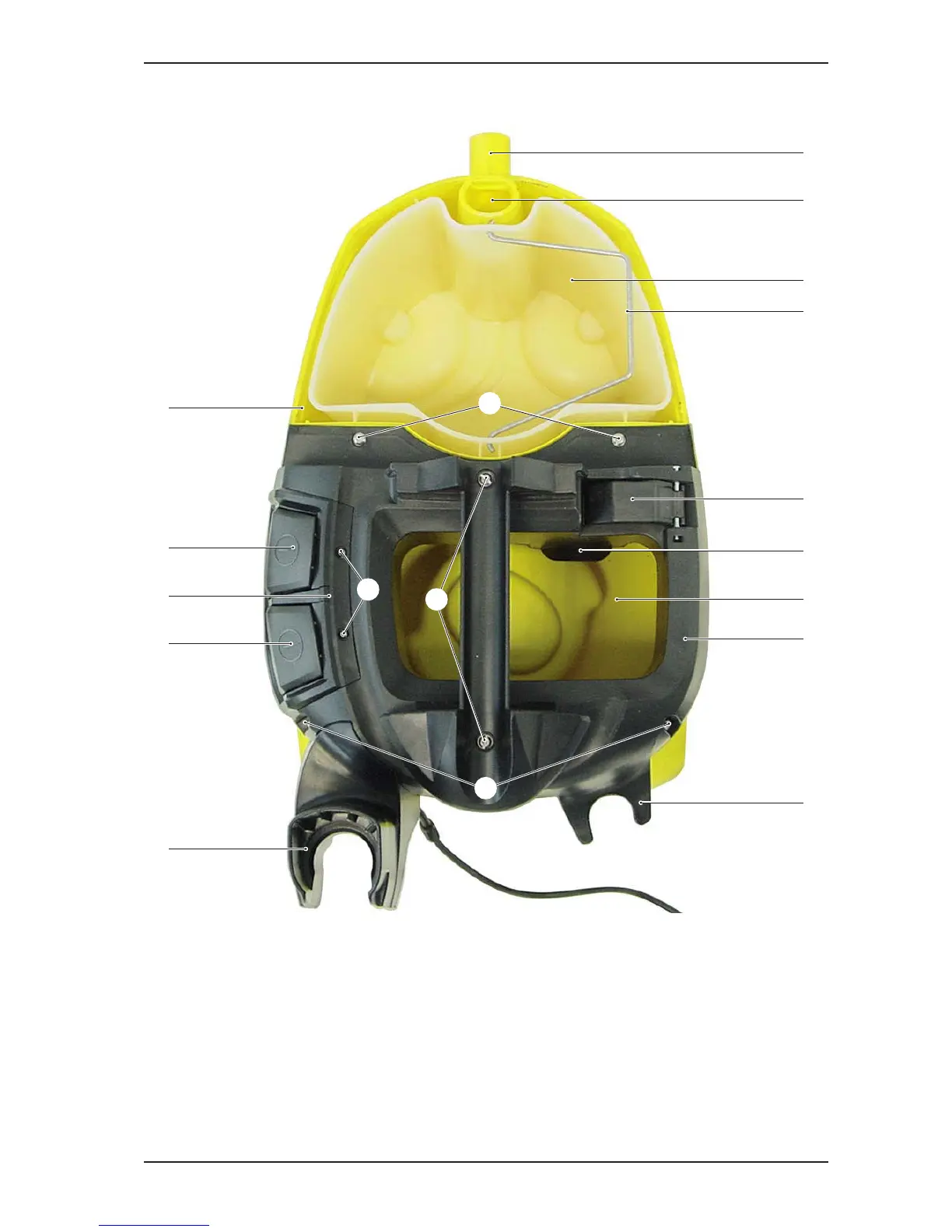

View from above, wastewater tank cover removed
1 Connection, suction hose
2 Wastewater channel
3 Wastewater tank
4 Handle, wastewater tank
5 Retaining screws (4x), unit housing,
upper section
6 Hook, for transporting the suction hose
7 „MAX“ mark, maximum water level in the
fresh-water tank
8 Fresh-water tank
1
2
3
4
6
8
7
9
10
11
12
13
14
17
5
15
16
5
9 Unit housing, upper section
10 Bracket, upholstery tool (optional)
11 Bracket, floor tool with suction tube
12 Switch element of (S2)
13 Bracket, switch elements
14 Switch element of (S1)
15 Retaining screws (2x), carrying handle
16 Retaining screws (2x), bracket, switch
elements
17 Unit housing, lower section
