Karma BLAZER User Manual

39
11.3 Control settings
The side control joystick module is adjustable in depth and height.
To set the depth take the following steps:

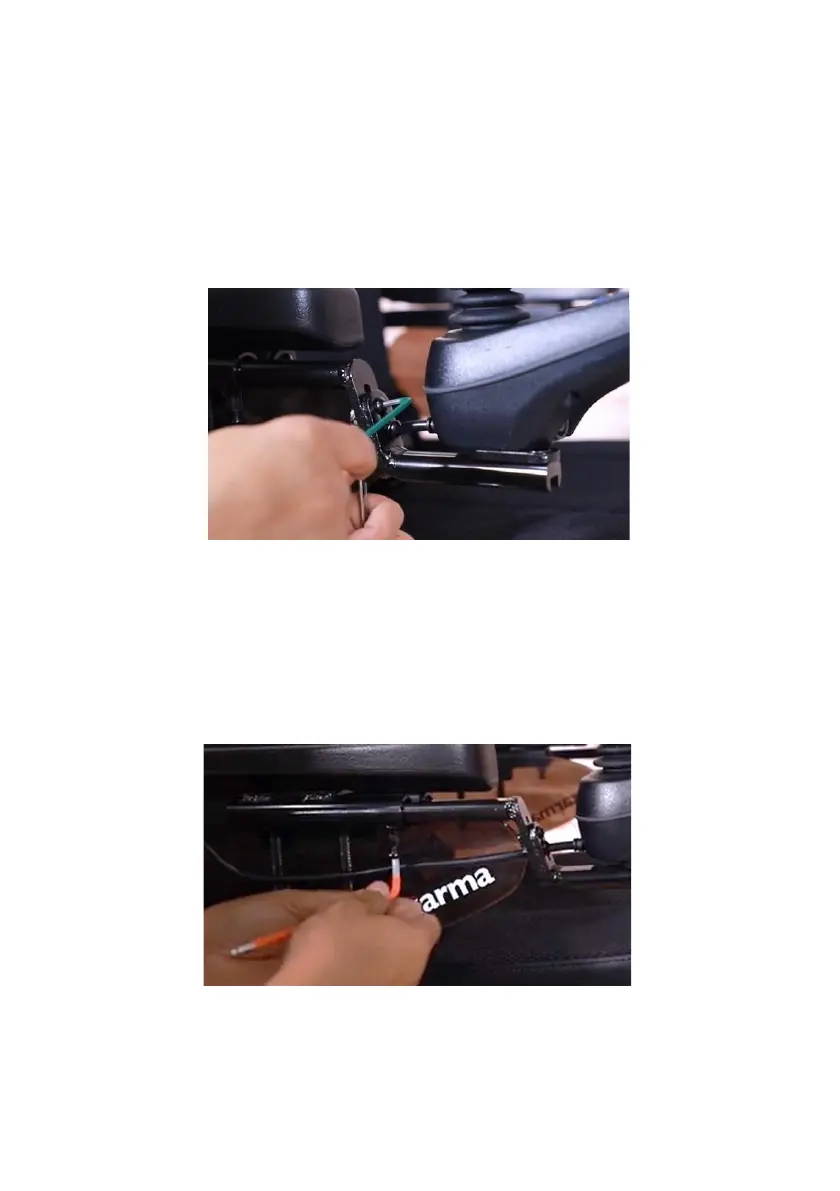

11.3.1 Height adjustment side control
To set the height adjustment of the side control follow the next steps:
step 1: Use 3mm Allen key and 8mm open wrench to loosen up this bolt.
step 2: After confirming the position, re-tighten the screw.
11.3.2 Depth adjustment side control
To set the depth adjustment of the side control follow the next steps:
step 1: Use 5mm Allen key to loosen up this bolt.
step 2: After confirming the position, re-tighten the screw.
