4.1.3 Armrest
4.1.3.1 Standard armrest: flip-back armrest.
4.1.3.2 Flip back the armrest by pressing the release lever located at the front base
of the armrest. After you press the release lever, you can lift the armrest

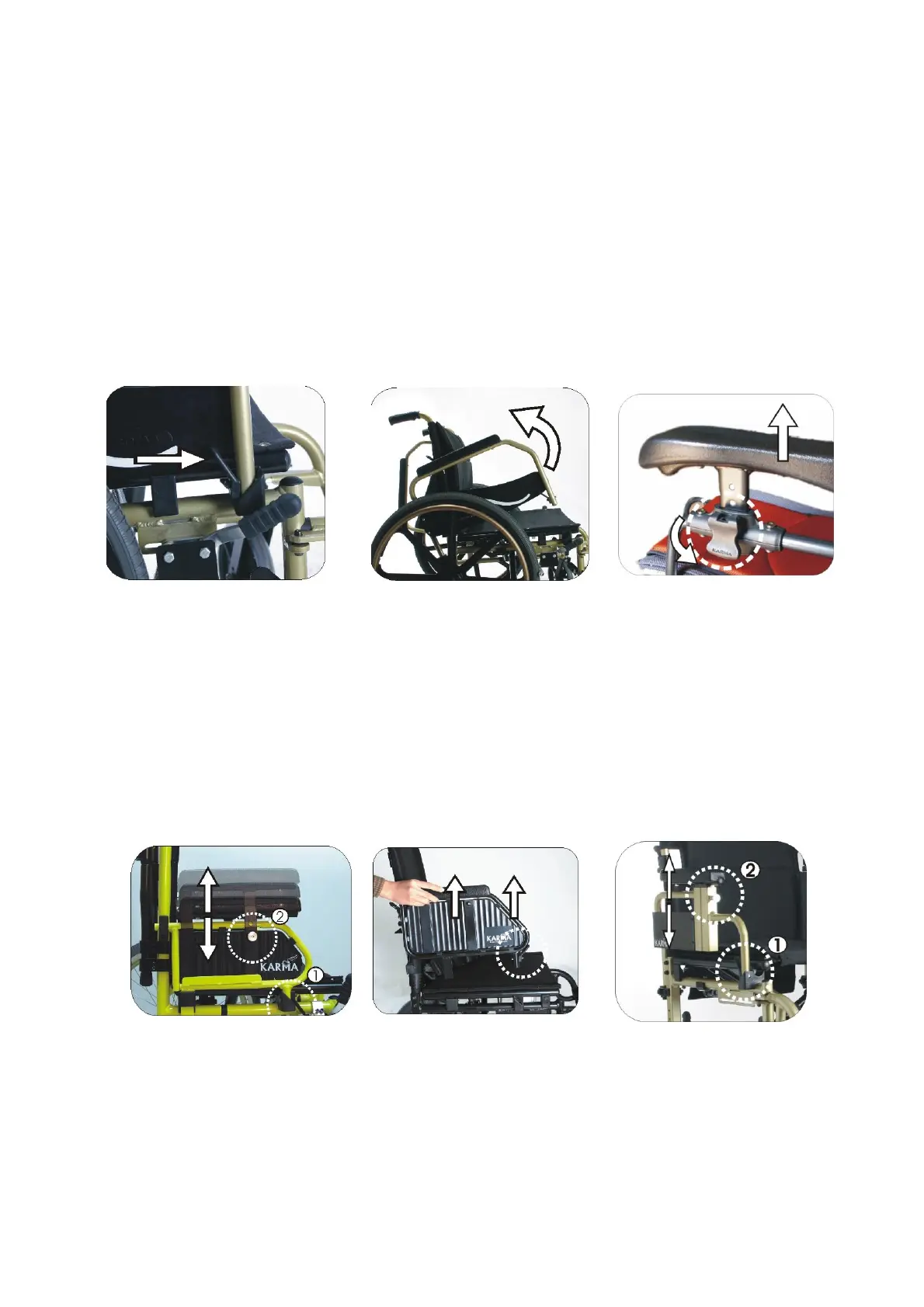

backwards. (See Figures 4.12 and 4.13).
4.1.3.3 Height adjustment of armrest (Option, See Fig. 4.14)
4.1.3.4 Unscrew the knob bolt.
4.1.3.5 Adjust the armrest to the desired height.
4.1.3.6 Tighten the knob bolt.
Figure 4.12
Figure 4.13
Figure 4.14
4.1.3.7 Armrest options; detachable and height adjustable, detachable armrest,
flip-back and height adjustable armrest.
4.1.3.8 Detachable: press the lever of No. 1 in Figure 4.15 to release the armrest
and side frame. And pull upwards the armrest. Detaching is completed.
4.1.3.9 Height adjustment: pull the bolt of No. 2 in Figure 4.15 (Figure 4.17) and
adjust the armrest to the desired height, release bolt.
Figure 4.15
Figure 4.16
Figure 4.17
4.1.3.10 Detachable height adjustment armrest (See Fig. 4.15).
4.1.3.11 Detachable armrest (See Fig. 4.16).
4.1.3.12 Flip-back height adjustment, desk length armrest (See Fig. 4.17).
