2HP-5HP VFX AERATOR MANUAL
5
ASSEMBLY INSTRUCTIONS

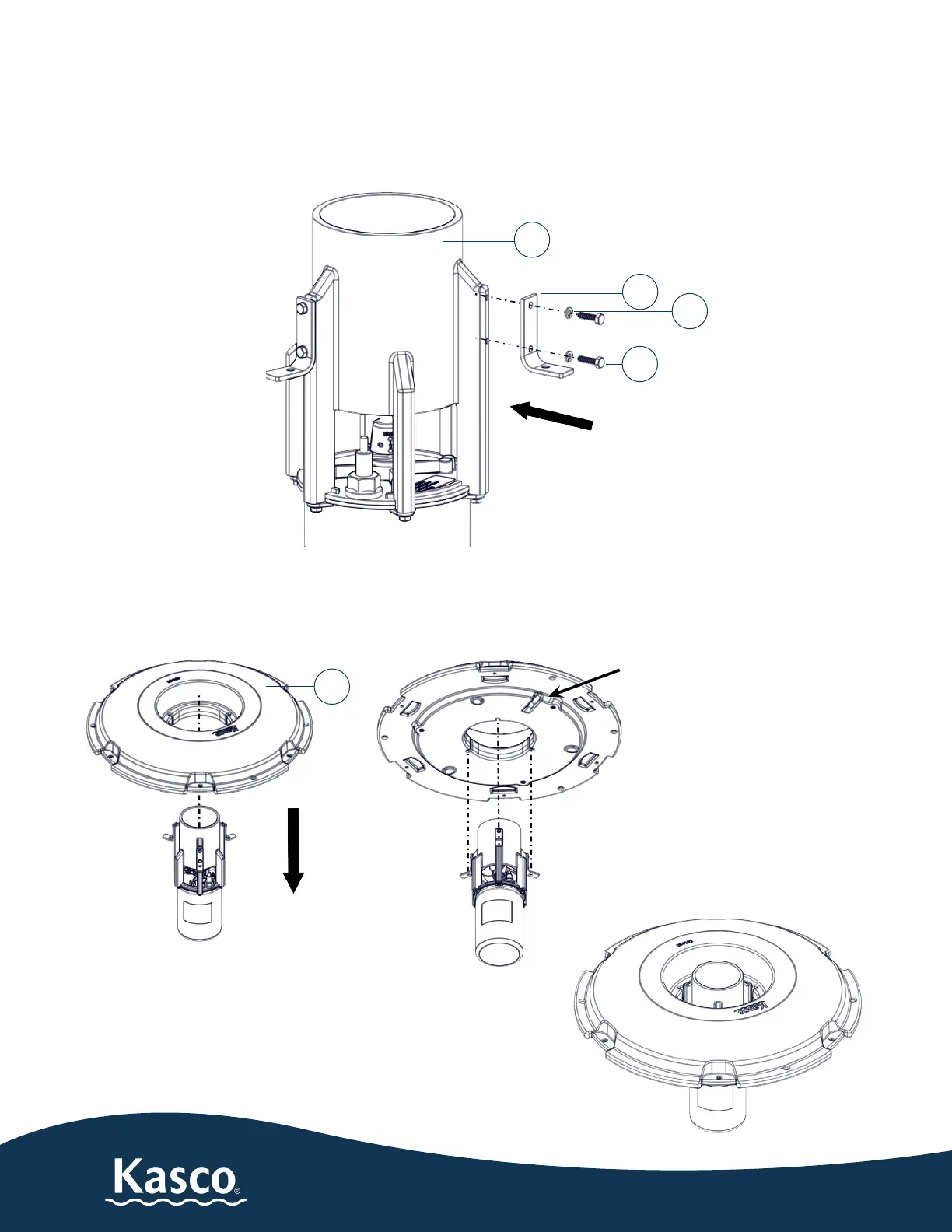

1. Attach the oat L-bracket (E) to the unit assembly (H) by tightening the 1/4’’ lock washer (F) and 1/4”-20
x 1’’ hex head screw (G) with 7/16’’ socket or combination wrench. Repeat for all three legs on the unit
assembly.
2. Place the oat (D) over the unit assembly so that it rests on the L-brackets. Ensure the three channels
on the inside of the oat line up with the threaded hole in the L-brackets, and the dedicated power cord
channel on the underside of the oat is near the cord connection on the unit assembly.
H
F
G
Dedicated power
cord channel
D
E
To Next Page
