2HP-5HP VFX AERATOR MANUAL
9
UNIT INSTALLATION INSTRUCTIONS
Note: Before installing 3-phase units (2.3VFX,
5.3VFX) into the pond, please refer to 3-phase start-
up procedure on page 10.
Use ropes to position the fountain in the desired
location in the pond or lake. Anchor the ropes or
secure them to the shoreline so that they are free of
slack, but not tight. To prevent twisting of the unit
due to motor torque, place the anchor at least 3
feet from the oat for each foot of depth (Ex. a 6 ft.
deep pond would require an anchor 18 ft.. horizon-
tally from the oat).
Alternate Installation
In ponds where the water level uctuates signi-
cantly, a small weight may need to be suspended
at the midpoint of the rope to take up any slack
caused by a drop in water level (1 foot of 1’’ gal-
vanized pipe works well). The weight should be
light enough so that the fountain can rise as the
water level rises. This weight can also help hide the
anchoring ropes by sinking them further below the
surface.
After unit is installed in the water, connect the power cord to a properly installed Kasco control panel (C-85,
C-95, etc.) with built-in ground fault protection according to the instructions and electrical schematics in-
cluded with the panel. Follow all local and national electrical codes for unit and control panel installation;
consult a qualied electrician or service person if needed.
Power cord
Kasco power
control box

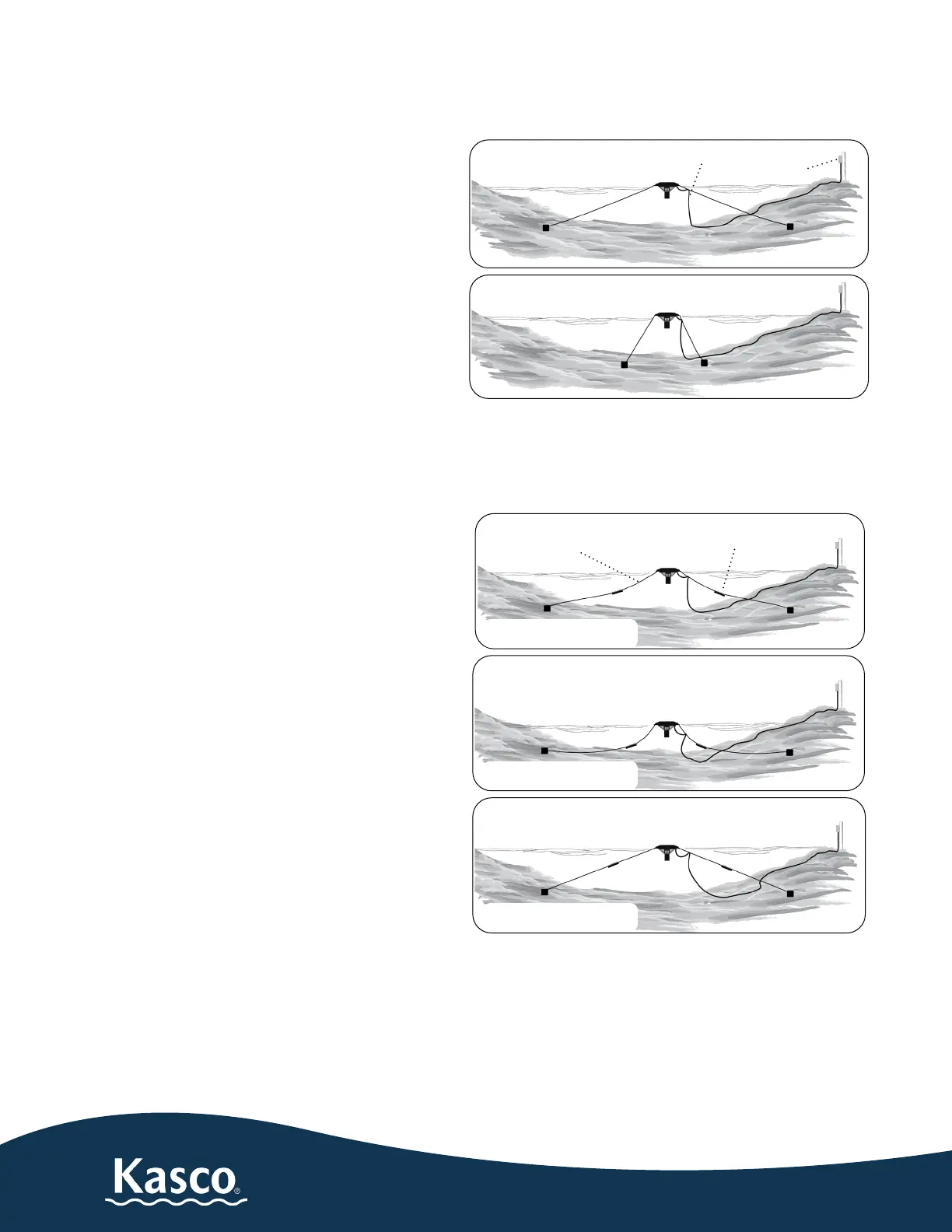

Correct anchoring
Incorrect anchoring
Anchor rope Secondary weight
Normal water level
Low water level
High water level
