2HP-5HP VFX AERATOR MANUAL
6
ASSEMBLY INSTRUCTIONS (CONT.)

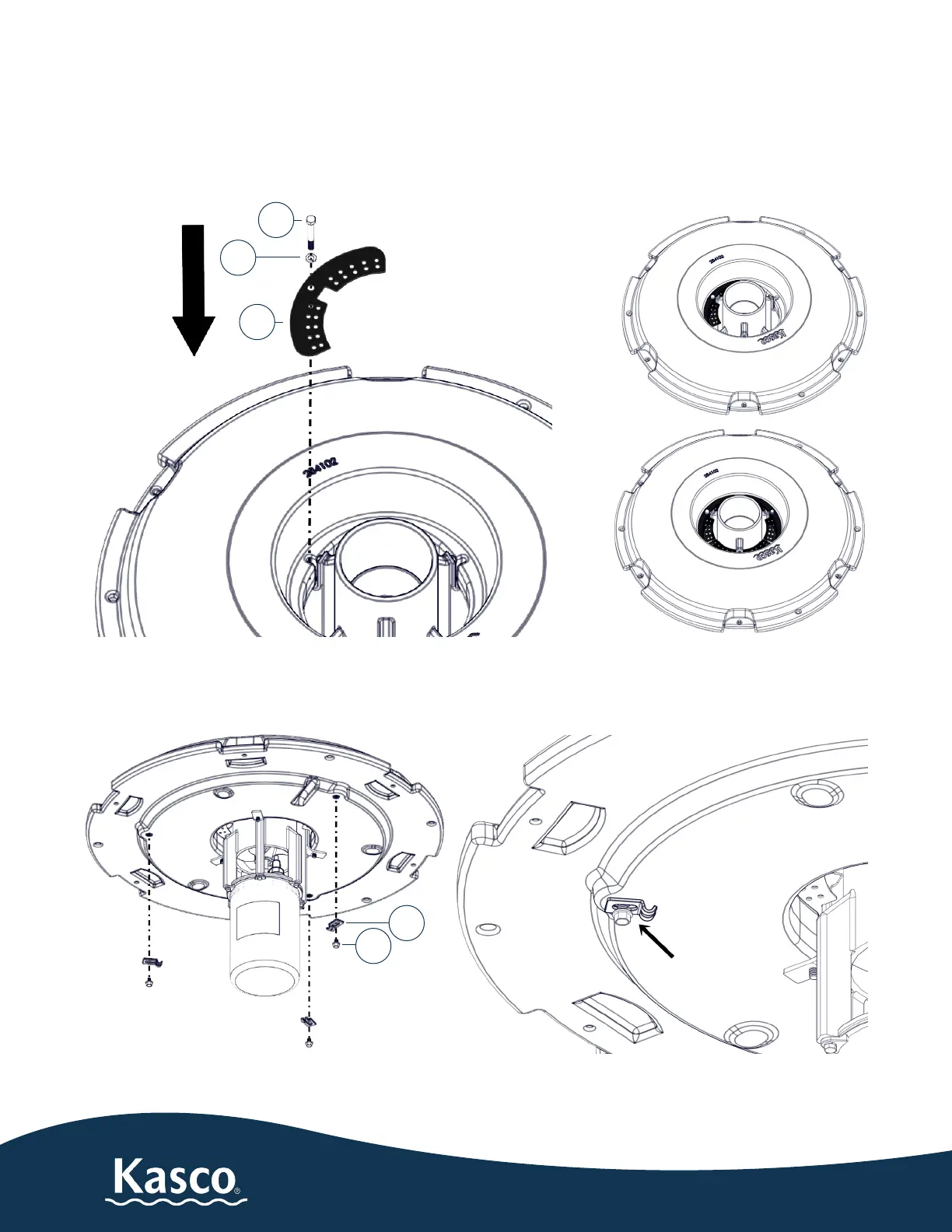

3. Tighten the upper screen section (C) to the ledge on the top of the oat using the 3/8”-16 x 3’’ hex head
screw (A) and 3/8’’ lock washer (B) through the hole in the L-bracket using the 9/16’’ socket wrench. Re-
peat for all three upper screen sections. Socket extension may be required.
A
B
C
4. On the underside of the oat, line up the (3) bottom screen clips (J) and start threading in the (3) 3/8”-16
x 1/2’’ serrated hex head screws (K), but do not tighten down at this time. Be sure the clips can slide back
and forth freely.
Allow movement
J
K
To Next Page
