W H E E L B L A N C E R

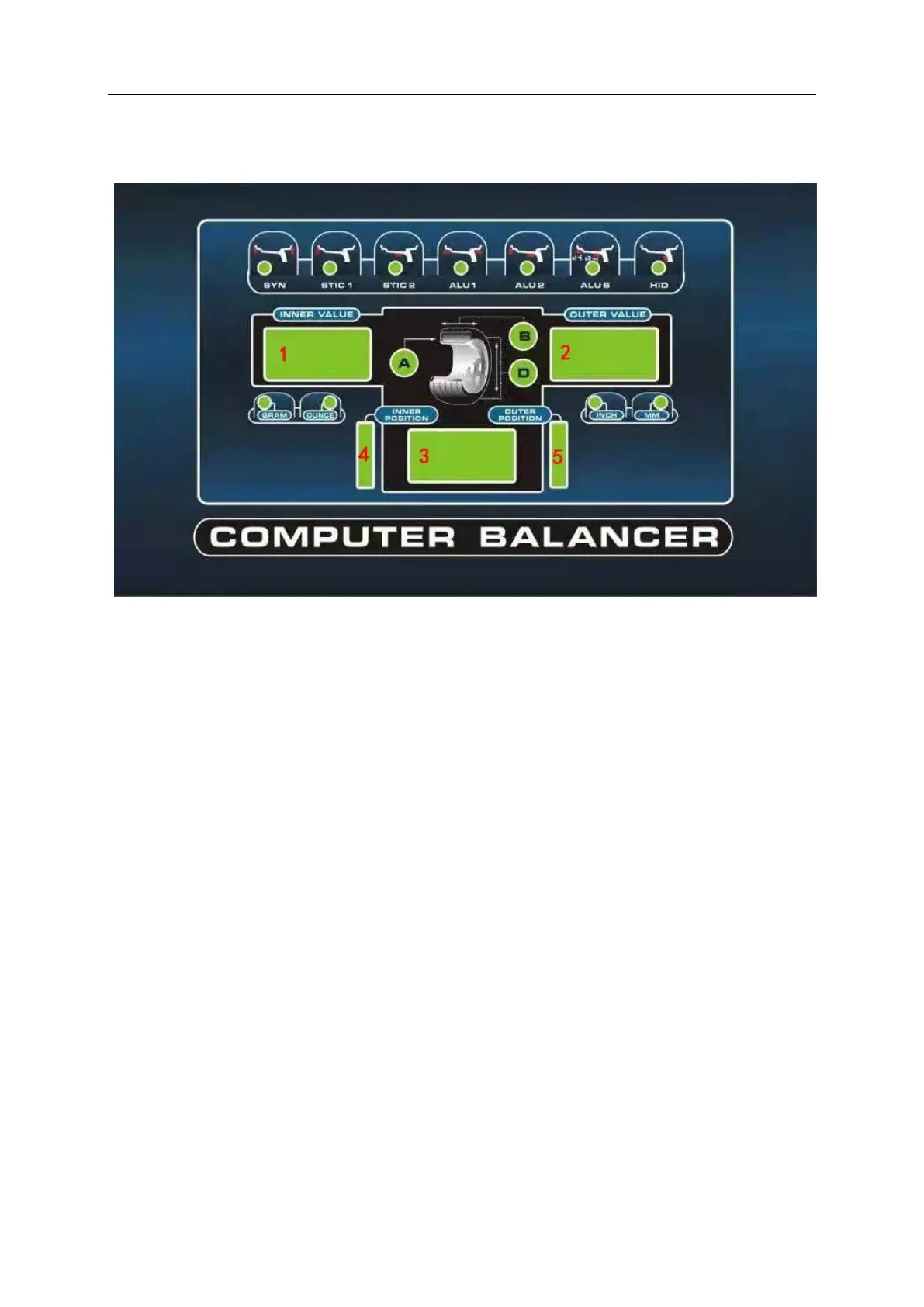

Display panel meaning:
-Window 1. shows tire inboard unbalance value or reference distance A size.
-Window 2. show
s tire outside unbalance value or diameter D size. -Window 3. shows
tire width B dimensions and suggestive characters.
-Window 4. displays inner side unbalance position indication (inner side with key
indication).
-Window 5. displays indication of unbalanced position on the outside (with key
indicator on the outside)
Control Panel Display:
6
-Panel area 6: The first five lights on the top row are in balance mode (as shown in the icon),
and the last one is hidden indicator for unbalanced block segmentation.
-The two lights below window 1. represent the gram and ounce switching instructions, and the
two lights below window 2. indicate the tire size unit "mm/INCH" (mm/INCH) switching
instructions.
