KDK 24CURB - Page 11

11
将机体安装在地脚螺栓(M8-M10另购)上。
注意应保持机体顶部和天花板的距离不小于20 mm
(图14)。
Model No.
型号
Net weight
净重
1. Fan body installation Method 2 install
with anchor bolt
1.机体的安装 方法二 使用地脚螺栓安装
24CURB
24CHRB
2.8 2.9
[k ]
4 Install the louver. refer to page 10
安装百叶窗。 参考第10页

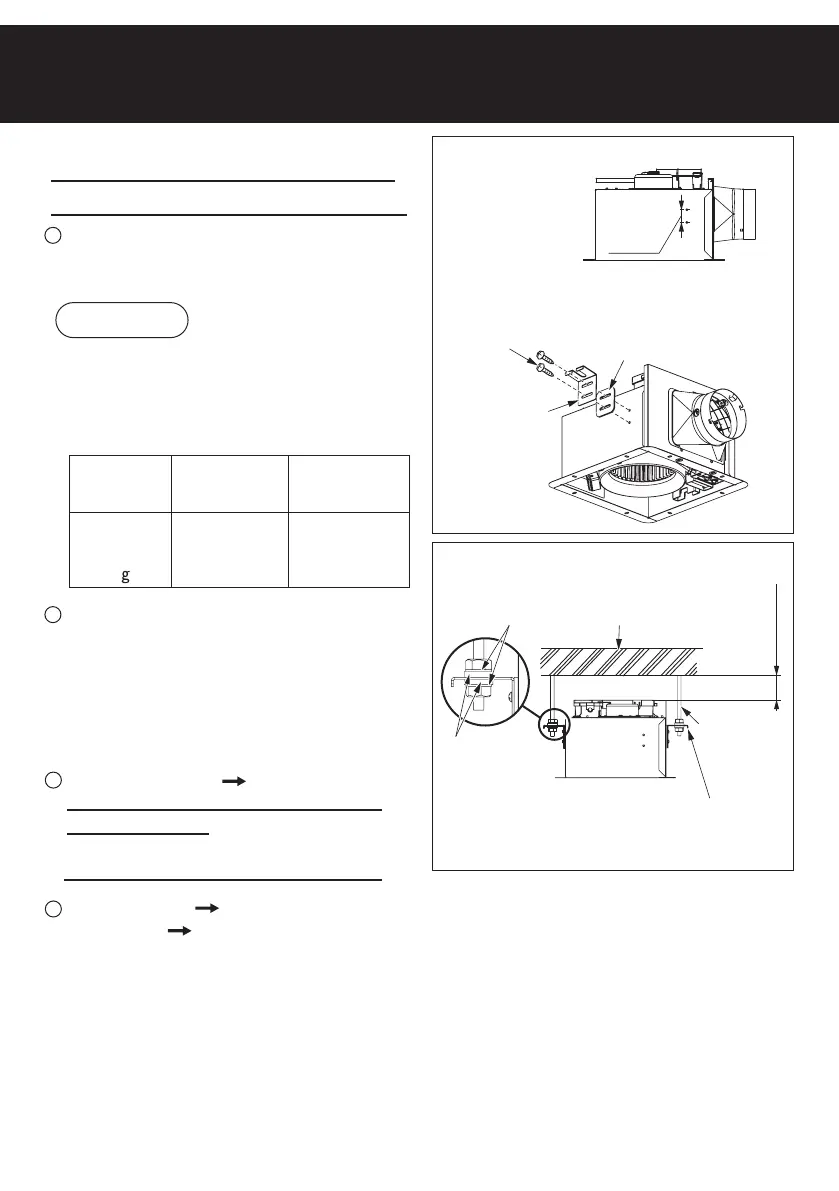

HOW TO INSTALL
安装方法
Fig.13 / 图13
Fig.14 / 图14
1 Secure the suspension bracket (not supply) with
screws (not supply) (Fig.13).
用螺丝(另购)固定悬吊支架(另购)(图13)。
2 Install the fan body on the anchor bolt.
The distance between the top of fan body and
ceiling should not be less than 20 mm. (Fig.14)
Anchor bolt (M8-M10, not supply) refer to the
following form.
Notice
提示事项
Suspension bracket must be made of metal with
sufficient strength.
悬挂支架必须由具有足够强度的金属制成。
The screw length is 8 mm.
自攻螺丝长度为8mm。
Ceiling
天花板
Washer
垫圈
Anchor bolt
地脚螺栓
Suspension bracket
(not supply)
悬吊支架(另购)
At least 20 mm 不小于20
mm
Rubber Washer
No.1 and No.2
(If necessary)
防震垫圈No.1和No.2
(如有必要)
Tapping screw
ST4. 2×8
自攻螺丝
ST4. 2×8
Screw mounting
position
螺丝安装位置
23 mm
23 mm
Suspension
bracket
悬吊支架
Vibration-resitance rubber
piece (If necessary)
防震橡皮件
(如有必要)
连接电源线→参考第9页
1.机体的安装方法一 使用木龙骨安装 ④
3 Connect power cord. refer to page 9
1. Fan body installation Method 1 install with
wooden joist ④.
24CHRVB
