Vent cap
管盖
Adhesive tape
(not supply)
胶带(另购)
Inside
内侧
Outside
外侧
Gradient
斜度
Wall
墙壁
Duct (not supply)
管道(另购)
1
100
1
50
Pipe hood
(not supply)
管罩(另购)
1 Insert the duct (not supply) into the adaptor and secure it with adhesive tape (not supply) tightly.
Suspend the duct from the ceiling so that no force is applied to the fan body. Install the duct
horizontally with a gradient downwards to the outside. And the outlet of duct shall be located to avoid
the rain ingress.
将管道(另购)装入接头组合上，然后用胶带(另购)粘紧密闭，防止漏风。将管道悬挂在天花板上，
以防止外力施加于机体。管道水平向下倾斜的安装到外侧，其出口应设置在避免雨水进入的地方。
2. Connect duct
2.管道连接
The minimum diameter of the wall hole :
ø116 mm
墙壁的最小开口尺寸为:116 mm。
2 Insert the pipe hood or vent cap
(optional accessories) on the outer wall.
将管盖或管罩(需要另外选购)安装到墙外。
Notice
提示事项
MCX100K
VCX100K
HOW TO INSTALL
安装方法
Pipe hood
管罩

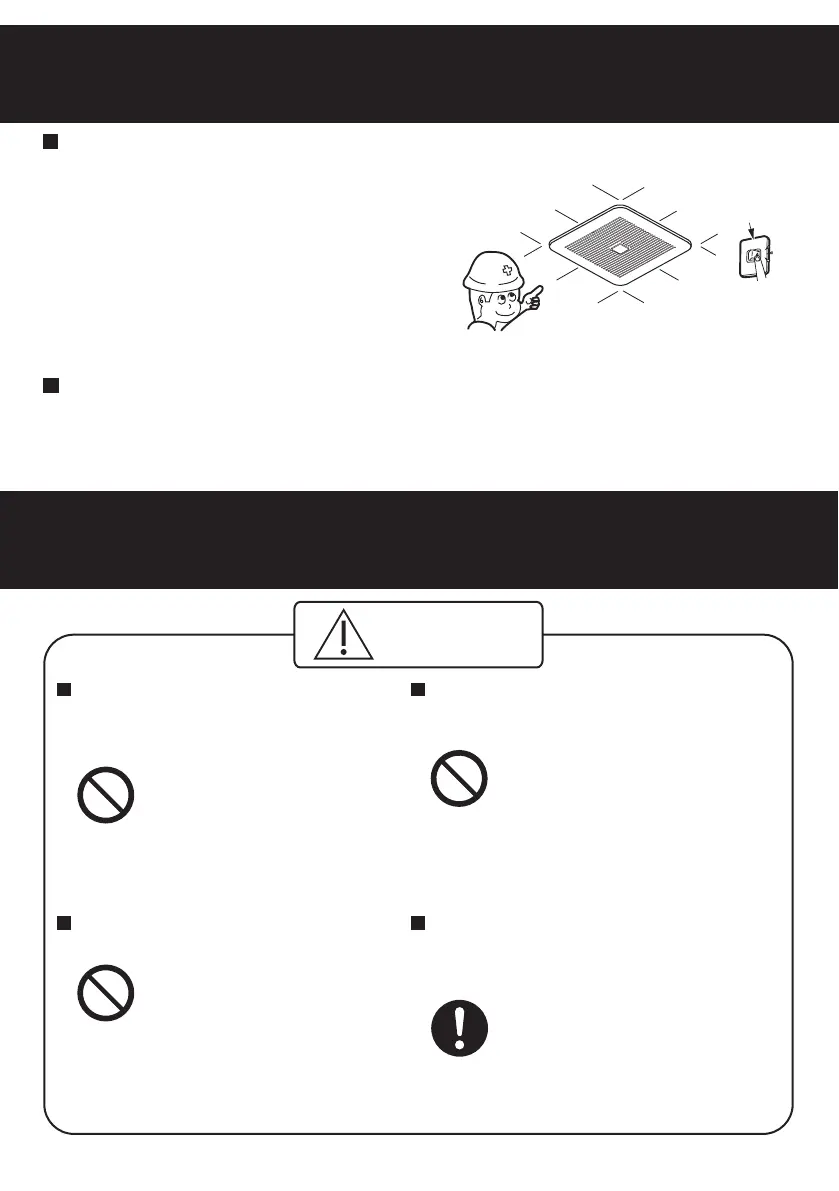

TEST RUN
试运转
Power switch
电源开关
Please check whether all kinds of anomalies below happen after connecting power.
(When motion sensor is detected, fan runs)
If anomalies happen, please check whether the installation is right.
• Blades doesn't run properly.
• Blades is clockwise rotation.
• Blades have abnormal vibration or noise.
在接通电源后，检查一下是否发生以下各种异常现象。
(当动作传感器感应到用户运动时，扇叶开始运转)
扇叶不正常的运转。
扇叶顺时针旋转。
发生不正常的声音或震动。
若出现异常现象，请检查是否安装正确。
Do not directly spray this product with
water and other liquids.
禁止用水及其他液体直接喷射、清洁本
产品。
Otherwise, it may cause short circuitor
electric shock.
否则可能会导致短路或触电。
否则可能会损坏本产品或导致火灾。
Otherwise, it may damage the
product or cause fire.
Do not let water flow into the motor.
禁止让水进入电动机。
Once flammable gas leaks, do not start
any function of this product.
Otherwise, it may generate sparkle and
this leads to explosion.
当发生煤气泄漏时，禁止开启本产品的任何功能。
否则可能会产生电火花而引起爆炸。
Warning
警告
MAINTENANCE
日常使用及维修
If you will not use this product any more,
remove the product.
如果以后不打算再使用本产品，不得放置不管，
而应予以拆除。
Otherwise, the product may fall down and it
may cause injury.
万一掉落，可能会导致受伤。
