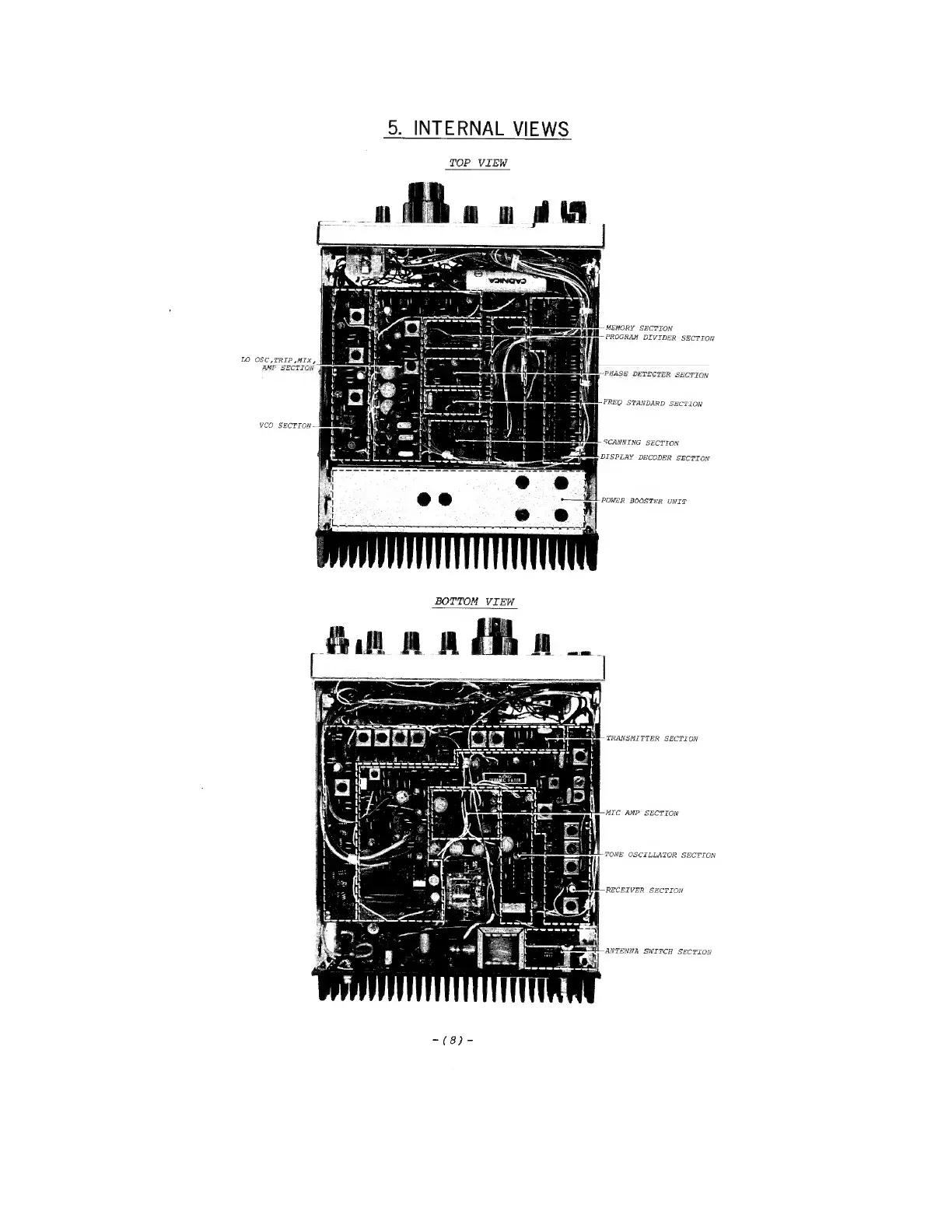

5. INTERNAL VIEWS.
TOP VIEW.
MEMORY SECTION
PROGRAM DIVIDER SECTION
IO OSC,TRIP ,MIX,
AMP
SECTION
PHASE
DETECTER
SECTION
FREQ STANDARD SECTION
VCO SECTION ~
SCANNING SECTION
iy DISPLAY DECODER SECTION
POWER BOOSTER UNIT
BOTTOM VIEW
we LRANSMITTER SECTION
MIC AMP SECTION
TONE OSCILLATOR SECTION
RECEIVER SECTION
ANTENNA SWITCH SECTION
