KEB combivert B6 User Manual

GB - 18
1
2
3
4
5
6
7
8
9
10
11
12
13
X2A
Installation and Connection

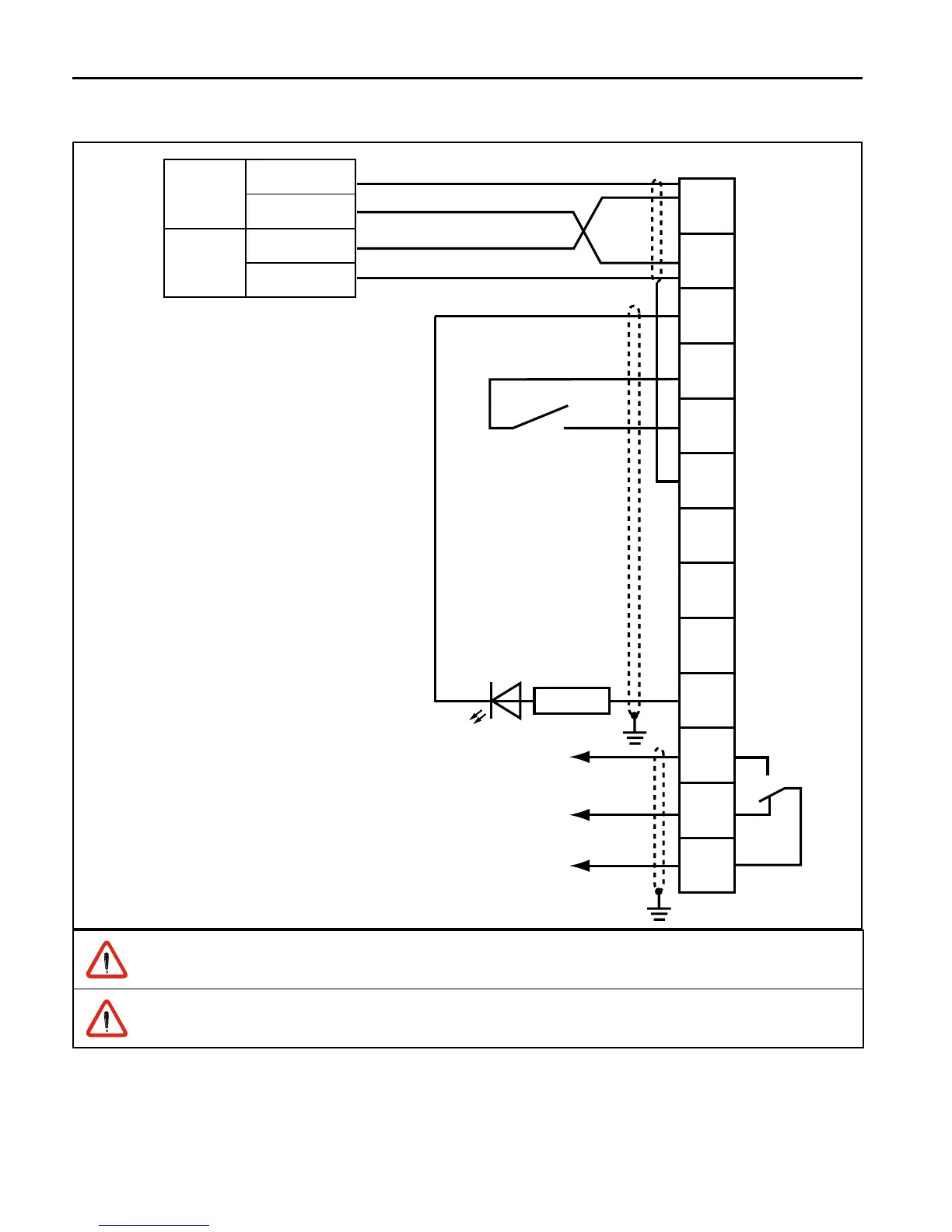

3.5.2 Connection of the control terminal strip
max. 30 V DC / 0.01…1 A
To avoid interferences separate shieldings must be provided for bus and control lines.
Depending on the use of the relay output, an extra shielding is to be used, too.
In case of inductive load on the relay outputs a protective wiring must be provided (e.g.
free-wheeling diode)!
IN
CAN high
CAN low
OUT
CAN high
CAN low
15 V ±10 %
max. 50 mA
