3) Release the lock on the right side of the expansion module to be added
by pushing it up.

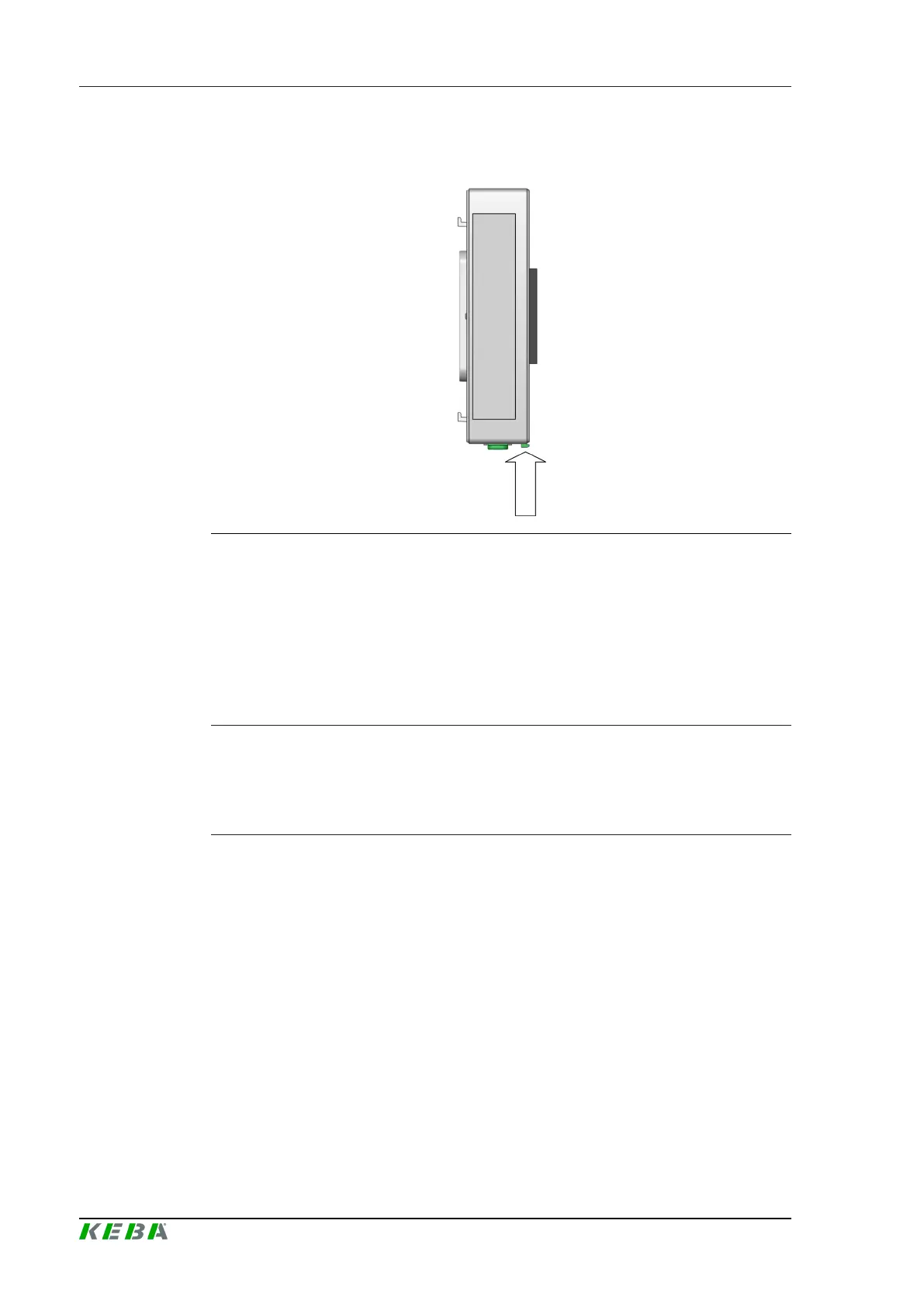

Fig.5-19: Releasing the lock
4) Remove the protective cap of the plug connector on the left side of the
already installed module.
5) Install the expansion module to be added on the mounting rail and lock
it, see 5.5 Installing the module.
6) Slide the expansion module to be added to the right until the recesses
are fully engaged in the hooks of the already installed module.
Caution
If the expansion module is installed improperly, its function may be im-
paired. When adding expansion modules, make sure that the hooks are en-
gaged.
