Keebox W150NR User Manual

30
1. DHCP Server: Choose “Disable” or “Enable.”
2. Lease time: This is the length of time that the client may use the IP address it has
been
Assigned by dhcp server.
3. IP pool starting Address/ IP pool starting Address: Whenever there is a request,
the DHCP
server will automatically allocate an unused IP address from the IP address pool to
the requesting computer. You must specify the starting and ending address of the IP
address pool.
4. Domain Name: Optional, this information will be passed to the client.
5. Primary DNS/Secondary DNS: This feature allows you to assign DNS Servers
6. Primary WINS/Secondary WINS: This feature allows you to assign WINS Servers
7. Gateway: The Gateway Address would be the IP address of an alternate Gateway.
This function enables you to assign another gateway to your PC, when
DHCP server offers an IP to your PC.

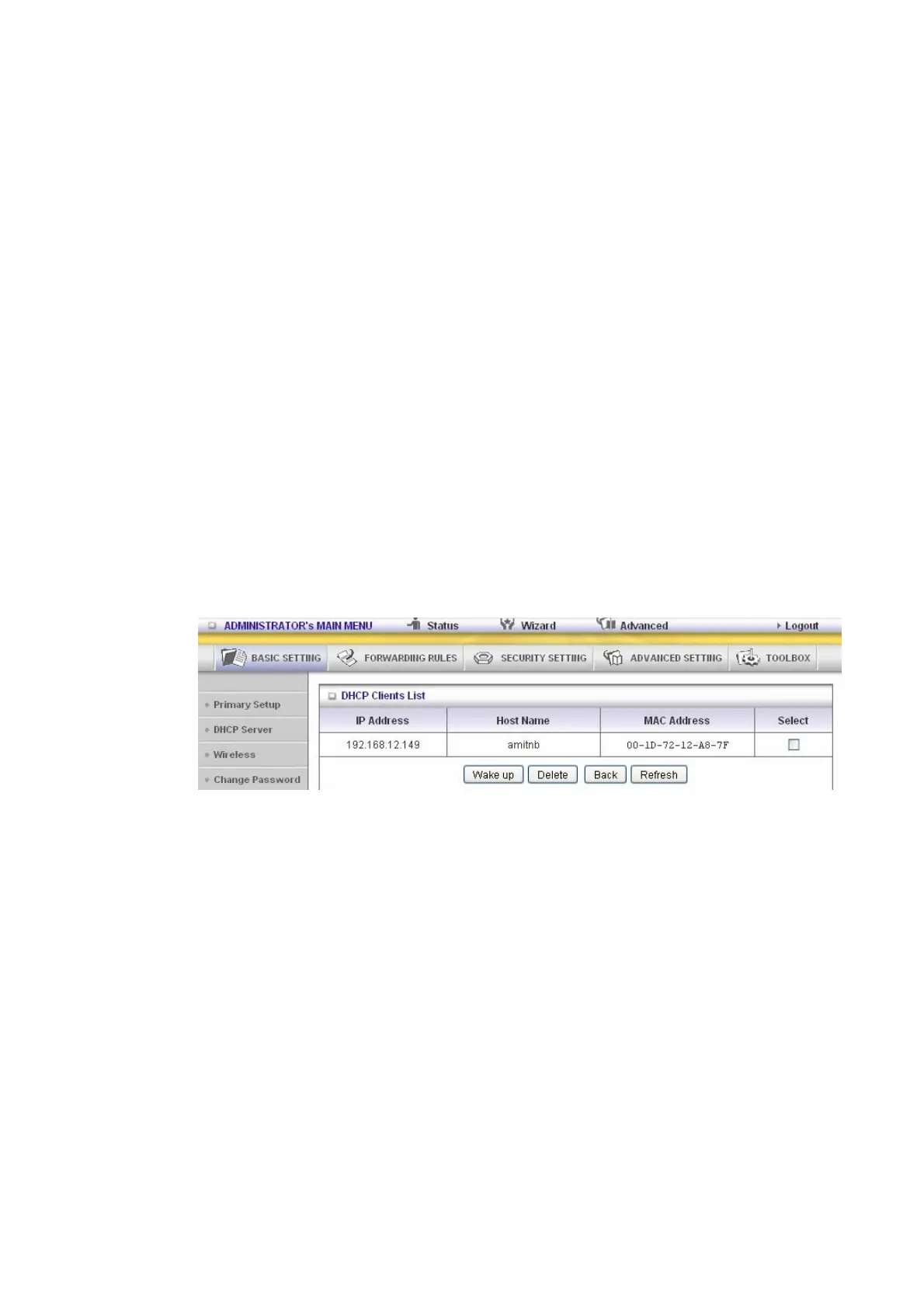

8. DHCP Client List:

Keebox W150NR Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Input current	1 A
Rack mounting	-
Frequency range	2.4 - 2.4835 GHz
Minimum system requirements	- Internet Explorer 6.0, Firefox, Safari, Chrome
WLAN data transfer rates supported	11, 54, 150 Mbit/s
Ethernet LAN (RJ-45) ports	5
Routing protocols	RIP-1, RIP-2
Supported network protocols	PPPoE, PPTP, L2TP
Antennas quantity	1
Antenna gain level (max)	17 dBi
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2-PSK
Certification	- CE, FCC
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Product color	White
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	110 mm
Width	150 mm
Height	25 mm
Weight	200 g
