Keebox W150NR User Manual

70
global IP 202.93.91.218, But I can not access the site that inputs domain
name, for example http://espn.com ?
A: Please check the dns configuration of Static IP Address. Please refer to the information of
ISP and assign one or two in dns item.
How do I connect router by using wireless?

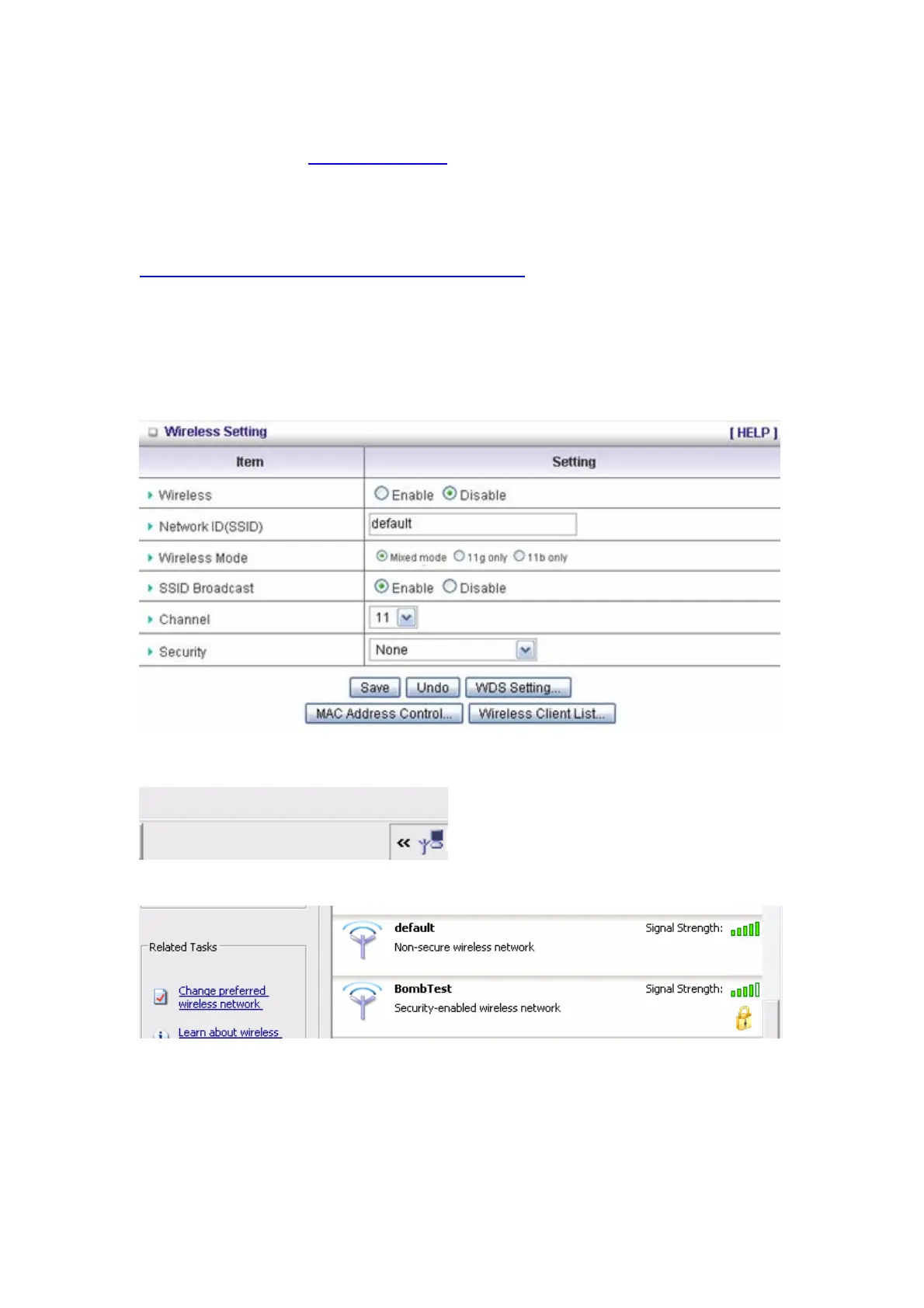

1.How to start to use wireless?
A: First, make sure that you already installed wireless client device in your computer. Then
check the Configuration of wireless router. The default is as below:
About wireless client, you will see wireless icon:
Then click and will see the ap list that wireless client can be accessed:
If the client can not access your wireless router, please refresh network list again. However, I
still can not fine the device which ssid is “default”, please refer to Q3.

Keebox W150NR Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Input current	1 A
Rack mounting	-
Frequency range	2.4 - 2.4835 GHz
Minimum system requirements	- Internet Explorer 6.0, Firefox, Safari, Chrome
WLAN data transfer rates supported	11, 54, 150 Mbit/s
Ethernet LAN (RJ-45) ports	5
Routing protocols	RIP-1, RIP-2
Supported network protocols	PPPoE, PPTP, L2TP
Antennas quantity	1
Antenna gain level (max)	17 dBi
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2-PSK
Certification	- CE, FCC
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Product color	White
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	110 mm
Width	150 mm
Height	25 mm
Weight	200 g
