Keebox W150NR User Manual

69
2.Why can I not connect the router even if the cable is plugged in Lan
port and the led is light?
A: First, please check Status Led. If the device is normal, the led will blink per second.
If not, please check How blinking Status led shows.
There are many abnormal symptoms as below:
Status Led is bright or dark in work: The system hanged up .Suggest powering off and on
the router. But this symptom often occurs, please reset to default or upgrade latest fw to try
again.
Status led flashes irregularly: Maybe the root cause is Flash rom and please press reset
Button to reset to default or try to use Recovery mode.(Refer to Q3 and Q4)
Status flashes very fast while powering on: Maybe the router is the recovery mode and
please refer to Q4.
3.How to reset to factory default?
A: Press Wireless on /off and WPS button simultaneously about 5 sec
Status will start flashing about 5 times, remove the finger. The RESTORE process is
completed.
4.Why can I not connect Internet even though the cables are plugged in
Wan port and Lan port and the leds are blink. In addition, Status led is
also normal and I can configure web management?
A: Make sure that the network cable from DSL or Cable modem is plugged in Wan port of
Router and that the network cable from Lan port of router is plugged in Ethernet adapter. Then,

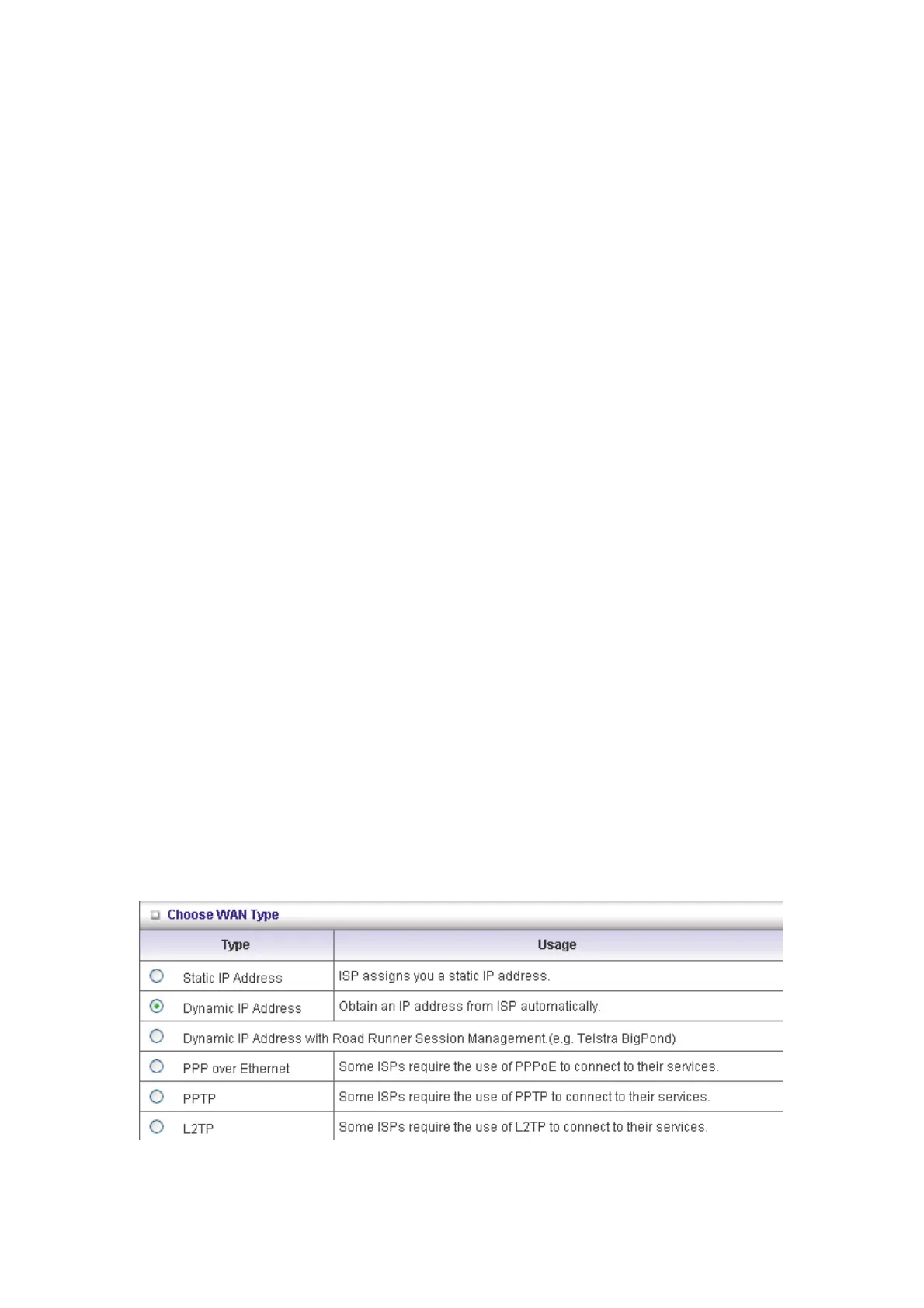

please check which wan type you use. If you are not sure, please call the isp. Then please go
to this page to input the information isp is assigned.
5.When I use Static IP Address to roam Internet, I can access or ping

Keebox W150NR Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Input current	1 A
Rack mounting	-
Frequency range	2.4 - 2.4835 GHz
Minimum system requirements	- Internet Explorer 6.0, Firefox, Safari, Chrome
WLAN data transfer rates supported	11, 54, 150 Mbit/s
Ethernet LAN (RJ-45) ports	5
Routing protocols	RIP-1, RIP-2
Supported network protocols	PPPoE, PPTP, L2TP
Antennas quantity	1
Antenna gain level (max)	17 dBi
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2-PSK
Certification	- CE, FCC
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Product color	White
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	110 mm
Width	150 mm
Height	25 mm
Weight	200 g
